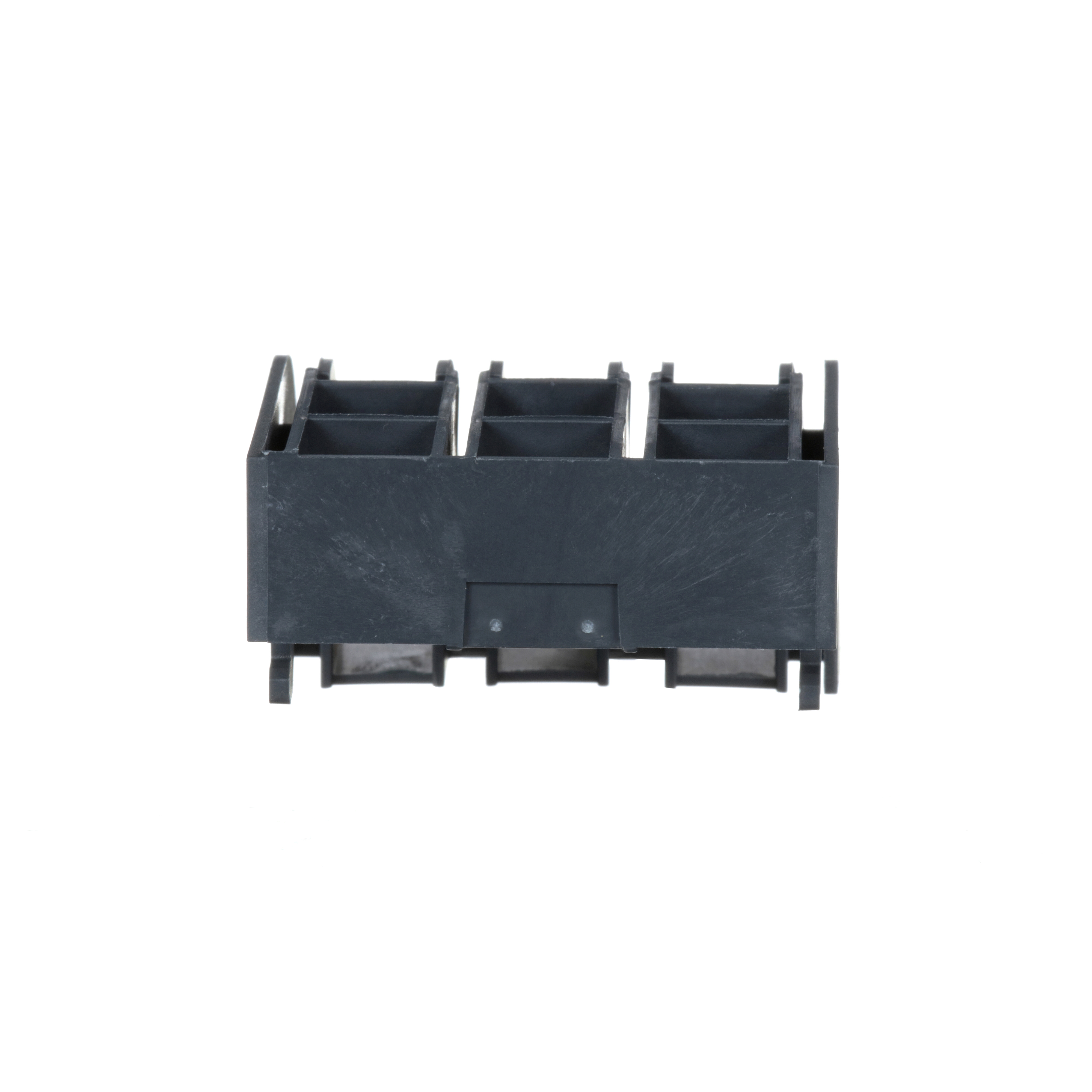

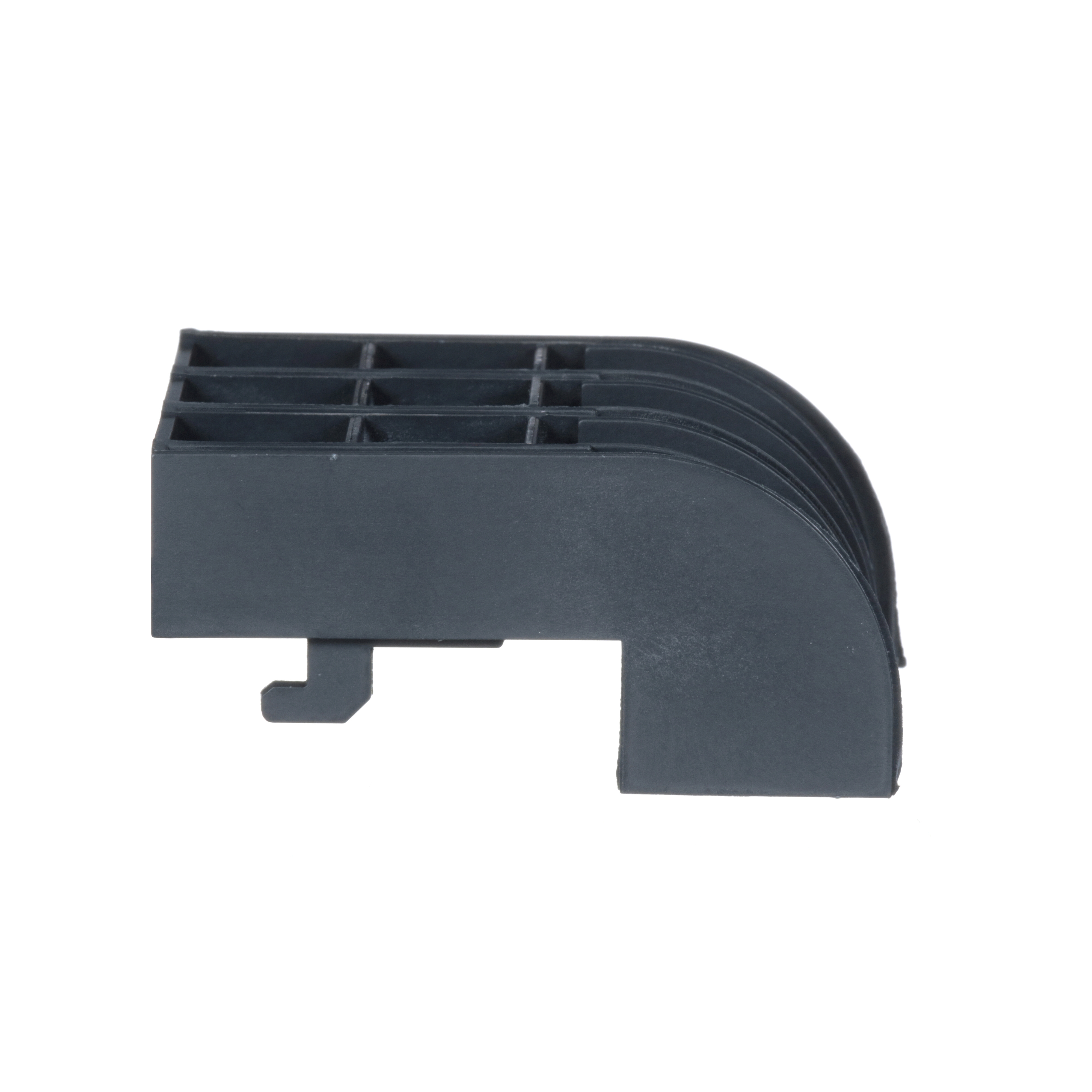

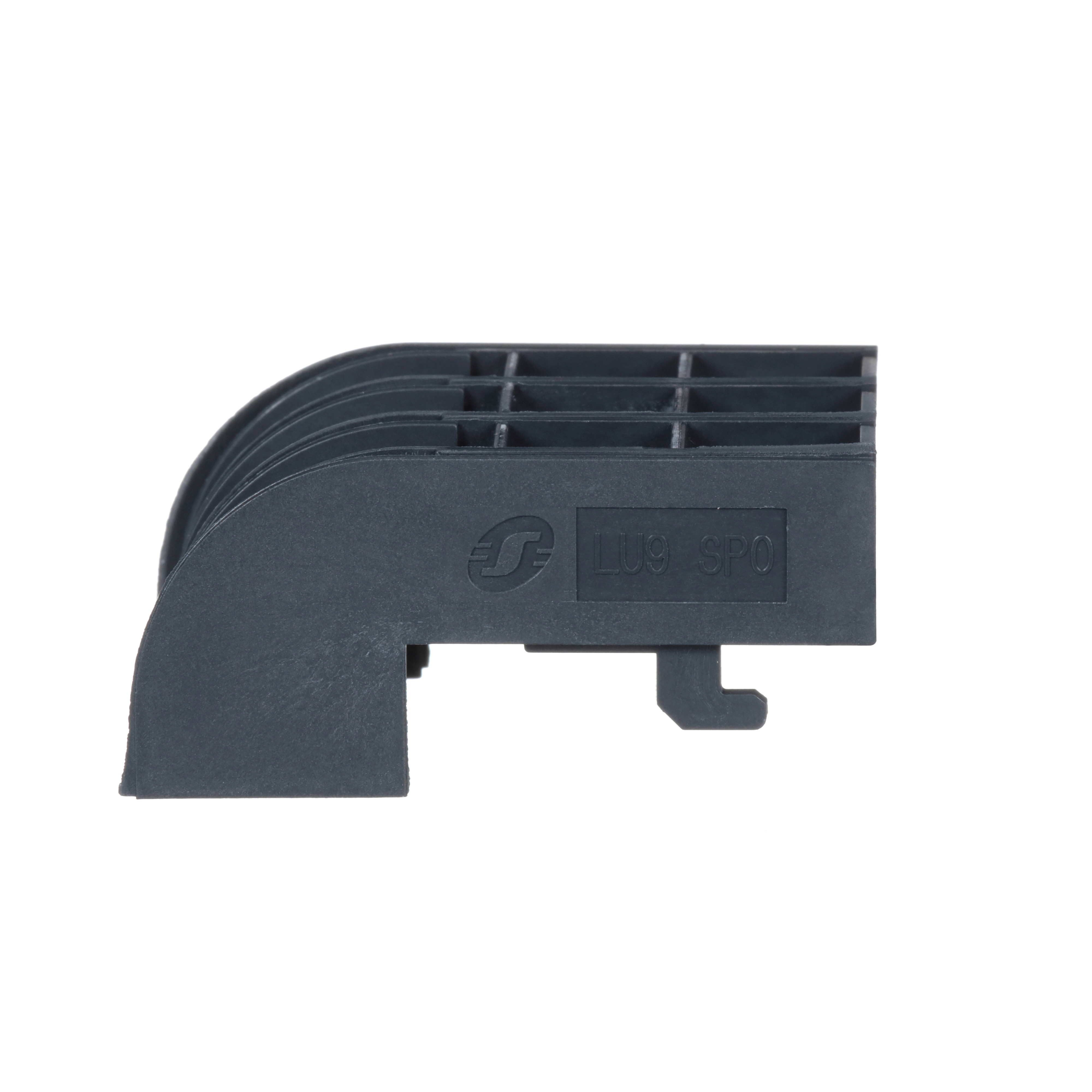

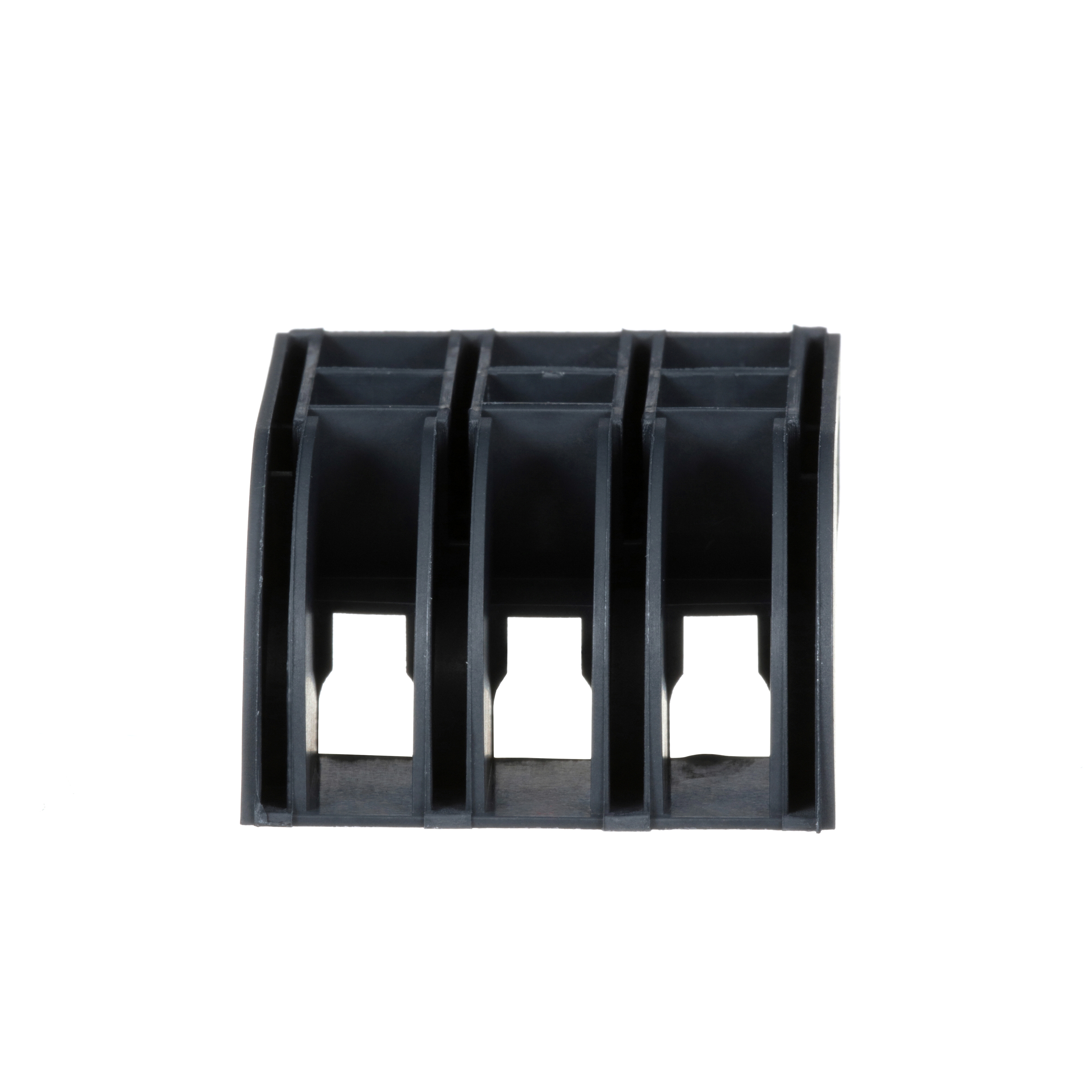

INCOMING LINE PHASE BARRIER, TESYS ULTRA

Manufacturer: Schneider Electric | Catalog # LU9SP0 | Electrozad South Part # 391993
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 G USERS MANUAL URL
TeSys U phase barrier for use with power bases LUB12, LUB32, LUB38, LUB120, LUB320, LUB380 or a limiter block LUALB1. It ensures a complementary electrical insulation between phases. Compulsory for use with a 690V AC network and with a 440 V AC network when assembling a UL508 type E compliant motor starter (Self Protected Starter).

Technical Information

Applications
REQUIRED TO CREATE A UL508 TYPE E SELF PROTECTED COMBINATION MOTOR CONTROLLER
Enclosure
OPEN
Net Weight
0.03 kg
Number of Poles
3 Pole
Operating Temperature
-25C TO 70C
Range
TeSys
TC Connection
CLIP ON
Type
MOTOR STARTER PHASE BARRIER

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS

General Product Info

12-Digit UPC
338911027152
GTIN
03389110271515
Weight
0.03 kg

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Country of Origin
USA
Overview
  • Advanced motor management system
  • Modular, plug & play structure helps you to perform quick maintenance
  • Phase barrier used for 690V and 440V AC network
  • A complementary electrical insulation between phases
  • Direct access to detailed information for every motor starter of your installation
