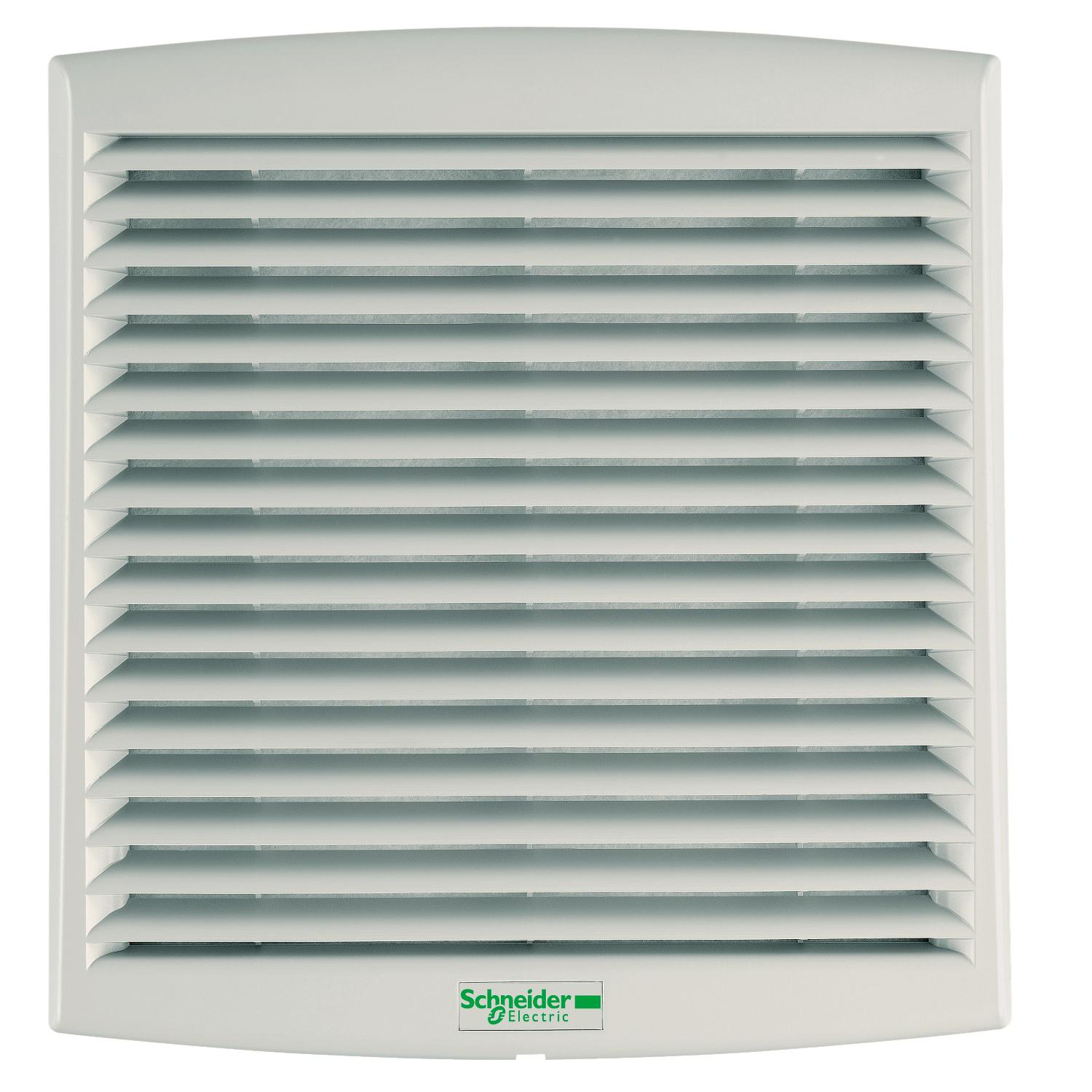

CLIMASYS FORCED VENT. IP54, 188M3/H, 24V DC, WITH OUTLET GRILLE AND FILTER G2

Manufacturer: Schneider Electric | Catalog # NSYCVF165M24DPF | Electrozad South Part # 391985
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 G USERS MANUAL URL
This product is a fan designed to provide reliable and efficient cooling. It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color. The fan has a ball bearing type and a maximum pressure of 50 Pa. It has a power range of 8 W and a free flow rate of 188 m3/h. It can be used in ambient air temperatures ranging from -10 to 70..C. It has a power cable and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces. It has an IP54 degree of protection and a noise level of 50-51 dB. The cut-out dimensions of the fan are 223 x 223 mm. The cut-out dimensions of the fan are 223 x 223 mm.

Technical Information

Amperage
0.3 A
Applications
VENTILATION
Input Voltage
24 V
Line Rated Current
0.3-0.3 A
Material
Outlet Grille Injected Thermoplastic (ASA PC)
Net Weight
0.81 kg
Operating Temperature
-10-70 degrees C
Range
ClimaSys
Size
EXTERNAL 104 MM,EXTERNAL 248 MM,EXTERNAL 268 MM
Storage Temperature
-40-70 degrees C
Type
Fan

Manufacturer Information

Brand
Schneider Electric
Sub Brand
CLIMASYS CV

General Product Info

12-Digit UPC
785901863038
Color
Outlet Grille Gray RAL 7035)
GTIN
03606480151262
Weight
0.81 kg

Dimensions

Depth
0 in
Height
10.55 in
Warranty Length
18 mth
Width
9.76 in

Certifications & Compliance

Country of Origin
France
