YA322N

Manufacturer: Burndy | Catalog # YA322N | Electrozad South Part # 39086
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual Technical Drawing

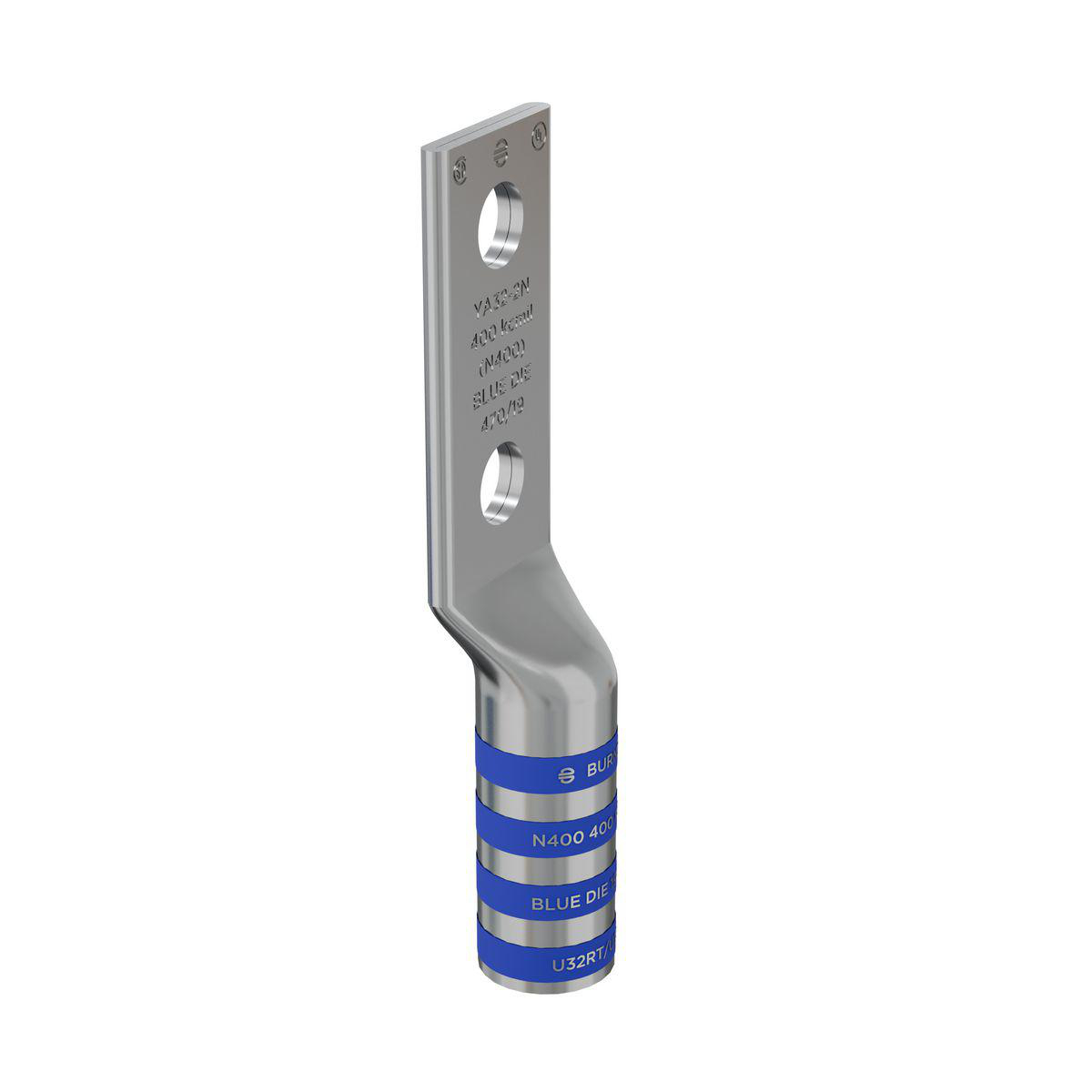

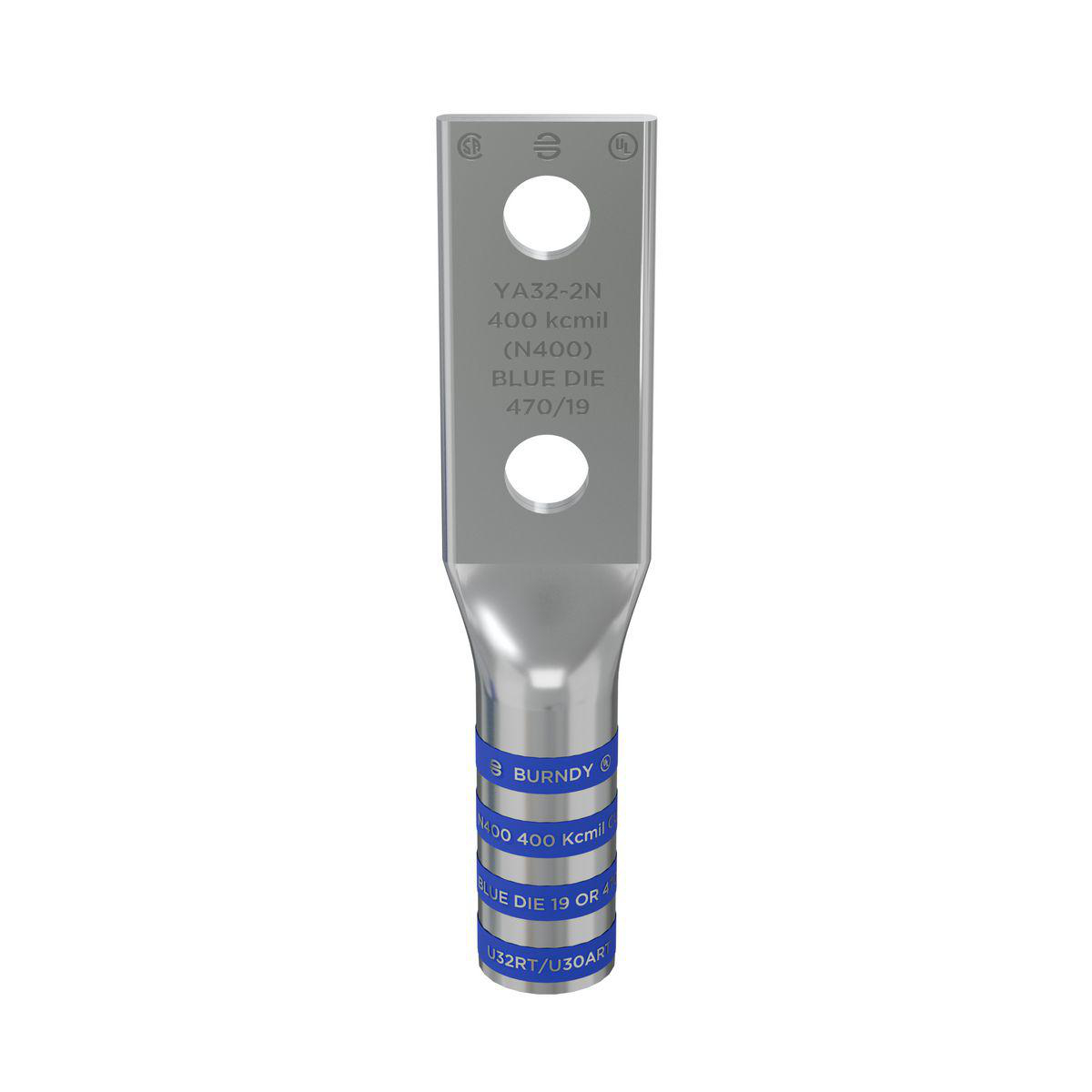

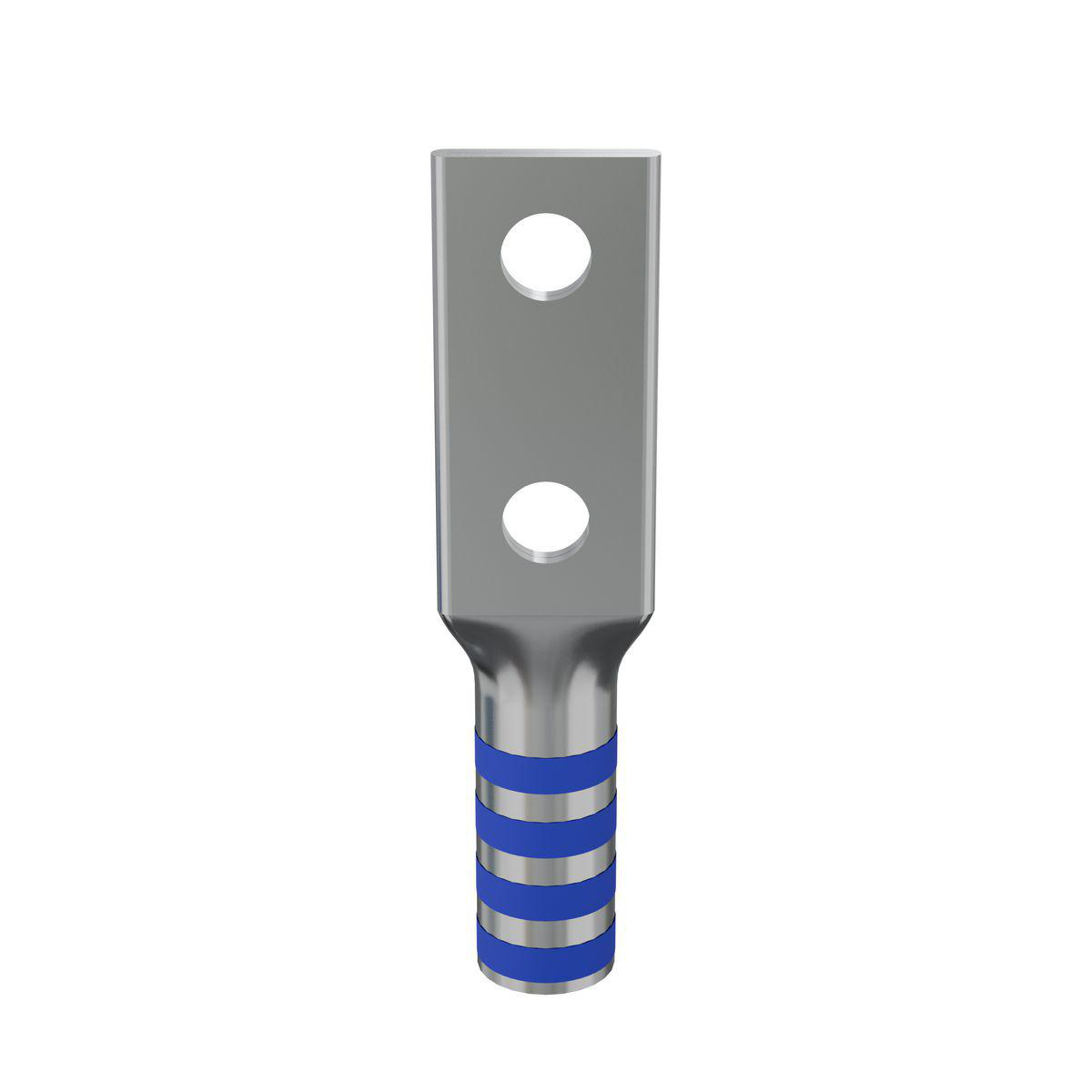

Copper Compression Lug, 2 Hole w/o Inspection Window, 400 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.

Technical Information

Applications
For Code Conductor
Barrel Diameter
0.95 in
Barrel Length
2.12 in
Barrel Type
Long, Chamfered
Cable Size
400 KCMIL
Color Coding
Blue
Conductor Material
Copper
Conductor Size
400 kcmil Stranded Copper
Connection Type
Terminal
Die Code
19
Material
Copper
Max Voltage
35000 V
Number of Holes
2
Plated?
Yes
Plating Type
Tin - Electro Plated
Standard
CSA,E2186,UL
Strip Length
2-3/16 in
Stud Size
1/2 in
Temperature Rating
90 degrees C
Tongue Type
Standard, Straight
Type
Non-Insulated

Manufacturer Information

Brand
Burndy
Sub Brand
Hylug™

General Product Info

12-Digit UPC
781810505588
Finish
Electro Tin Plated
GTIN
00781810505588
Used With
Code Conductor

Dimensions

Height
0.95 in
Hole Size
14 mm
Length
5.85 in
Overall Length
5.85 in
Width
1.40 in

Certifications & Compliance

Country of Origin
USA
CSA
Yes
