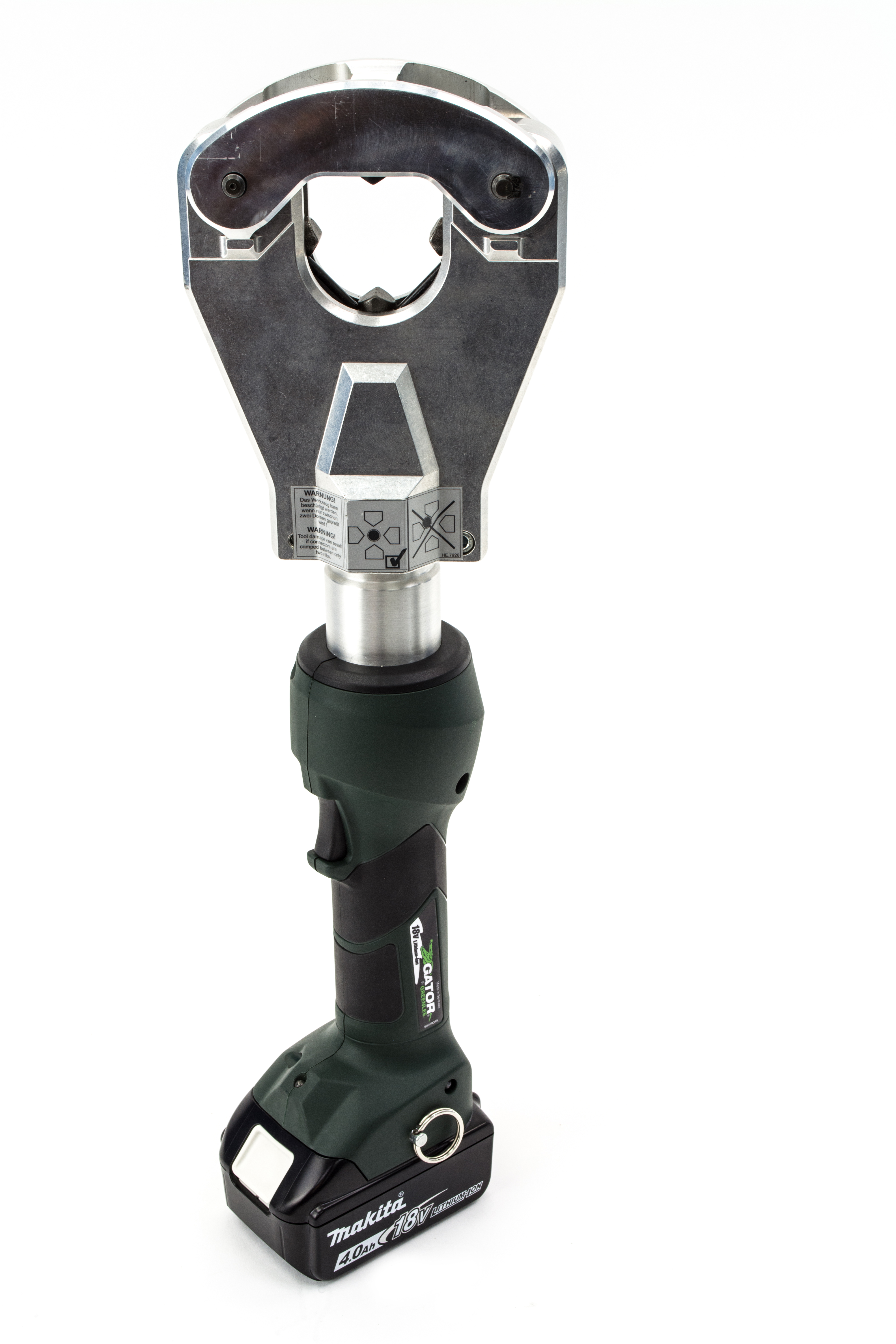

6 Ton Flip Top Inline Quad Crimper, Li-Ion, Standard, 120V

Manufacturer: Greenlee Tools | Catalog # EK6FTILX11 | Electrozad South Part # 389869
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual
6 ton quad point flip top inline crimper with 120 V charger. LED display screen communicating system pressure and battery levels as well as tool diagnostics with real-time tool feedback. Bluetooth Communication - Connect with i-Press App to track tool performance. In line tool style is light weight and very easy to control. One trigger controls all tool functions. Cutting head rotates 360 deg. Tools automatically retract when the crimping cycle is complete. Equipped with Double Tap activation profile. Over-molded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools use die-electric, bio-degradable oil

Technical Information

Applications
6 Ton Crimping
Connector Type
Color-coded lugs and splices
Crimping Force
12400 lb 55 kN
Handle Type
In-Line Style with Over Molded Rubber Grip
Material

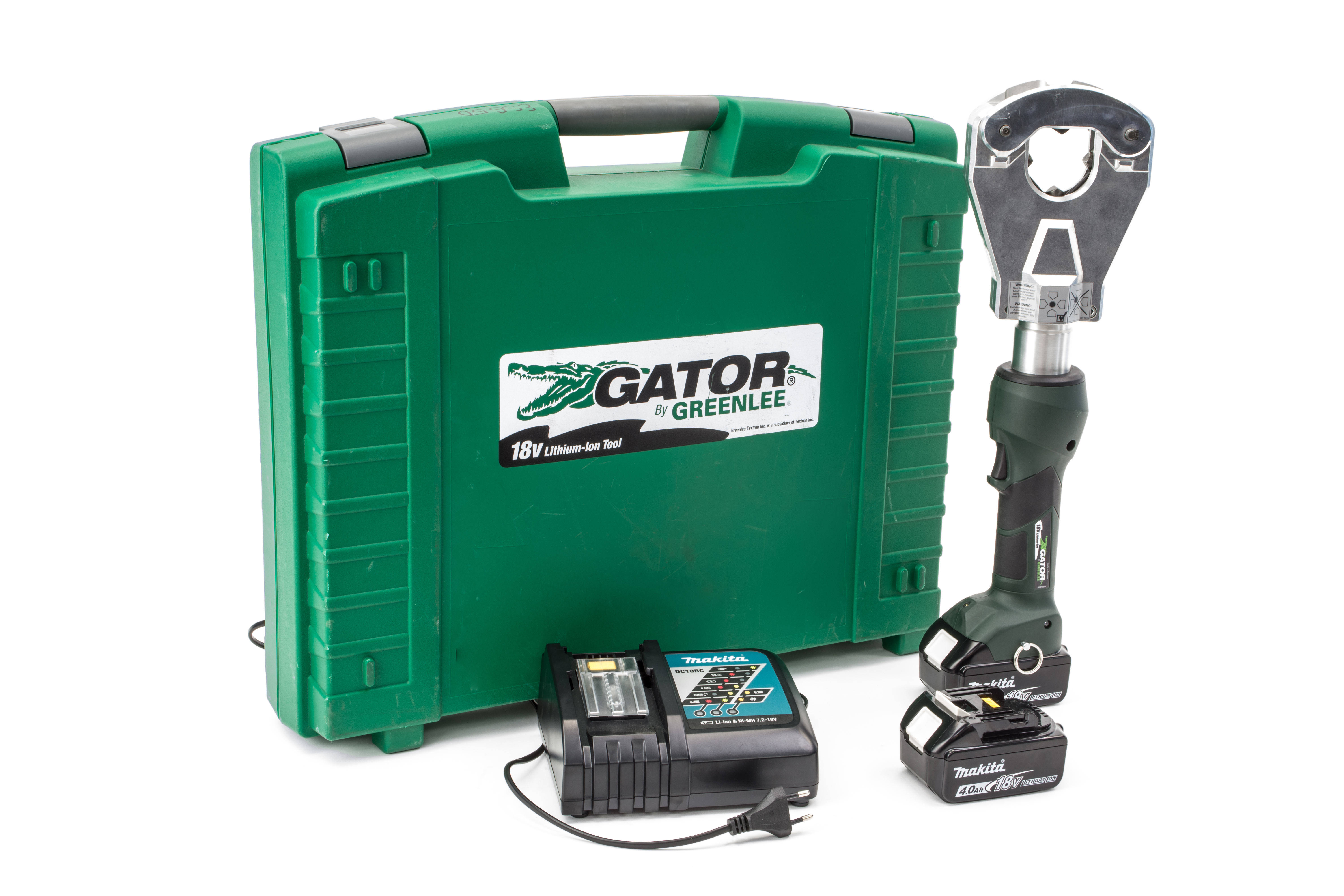

120V Charger, Two 4.0Ah Batteries
Standard
C/US UL Listed
Type
Dieless, Quad Flip, Standard
Wire Size
6 AWG, 750 MCM Cu and Al

Manufacturer Information

Brand
Greenlee
Sub Brand
Gator®

General Product Info

12-Digit UPC
783310085911
GTIN
00783310085911

Dimensions

Overall Length
19.5 in

Certifications & Compliance

Country of Origin
Germany
