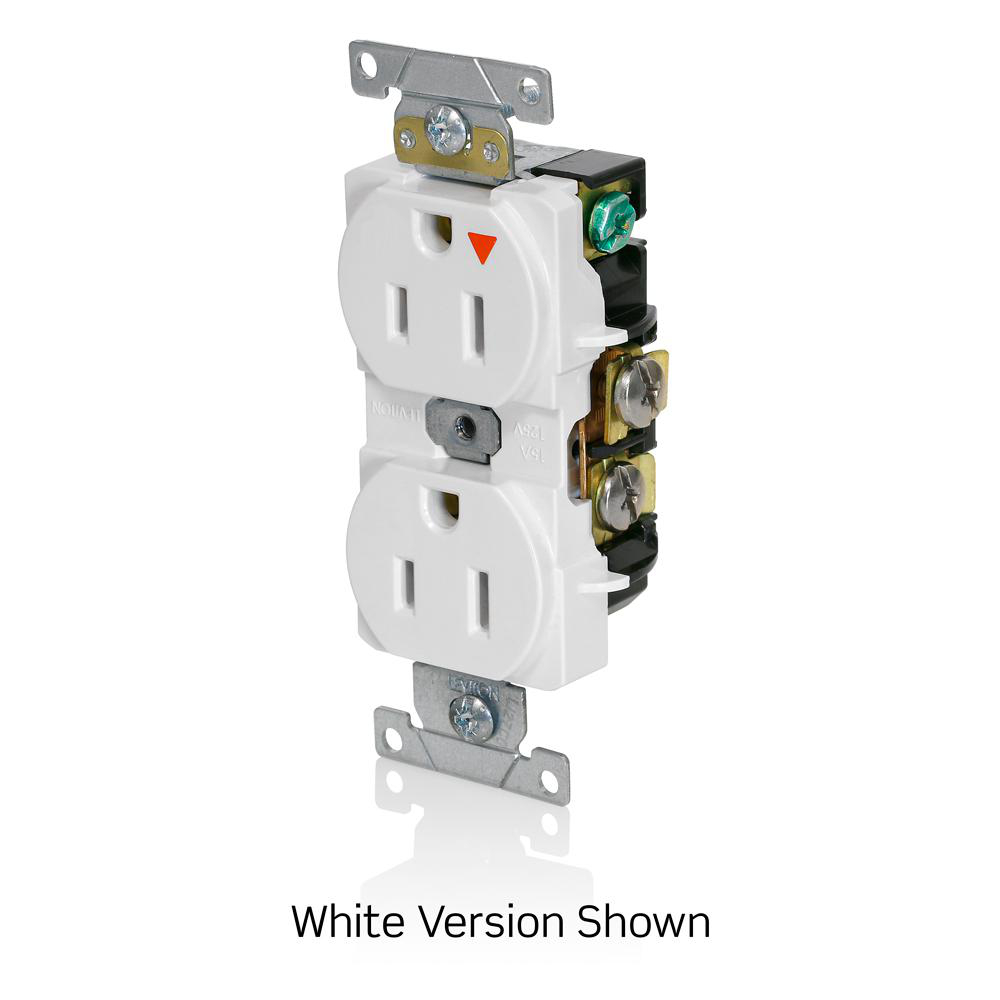

Image thumbnail 1
Image thumbnail 2
To:
CC:

15 Amp Isolated Ground Duplex Receptacle/Outlet, Industrial Grade,

Manufacturer: Leviton Manufacturing | Catalog # 5262-IG | Electrozad South Part # 389189
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet
Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face,15 Amp, 125 Volt, Back and Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Orange

Technical Information

Amperage
15 A
Applications
For Industrial Use
Body Material
PBT,Polyester Blend
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Phosphor Bronze
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
PBT,Polyester Blend
Flamability Class
Rated V-0 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
WD-1
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.33 W x 1.12 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Type
Duplex Outlet,Straight Blade
Voltage
125 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
INDUSTRIAL RECEPTACLES

General Product Info

12-Digit UPC
078477052440
Color
Orange
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477052440

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
