Crimp fork terminal #8H-12/10ga yellow | Electrozad South
Product image for Crimp fork terminal #8H-12/10ga yellow
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

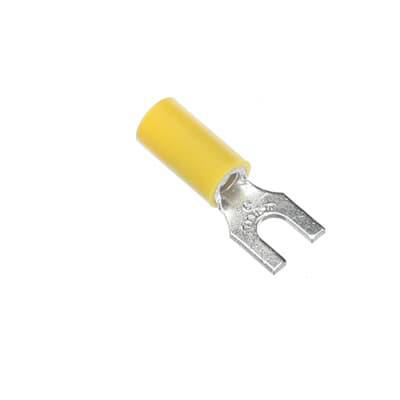

Crimp fork terminal #8H-12/10ga yellow

Manufacturer: ABB | Thomas & Betts | Catalog # 10RC-8F | Electrozad South Part # 38754
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
The T B Sta-Kon series is designed to provide solutions to single cabling to terminal strip, they are available in many forms (fork, pin, tab, ring), colors matching ranges of wire gage, insulated or not. Made of copper lugs with plastic nylon insulated. Crimpable with tools provided. CSA approved.

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 V
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800394
Color
Yellow
Finish
Tin Plated
GTIN
05414363136330
Used With
Round Conductors

Dimensions

Height
8.8 in
Thickness
.04 in
Width
9-1/2 in
Compare
