COMPLETE CONTROL STATION, HARMONY 9001B, 3 PUSH BUTTONS OPEN-CLOSE-STOP, 5A, 600V AC, NEMA 1

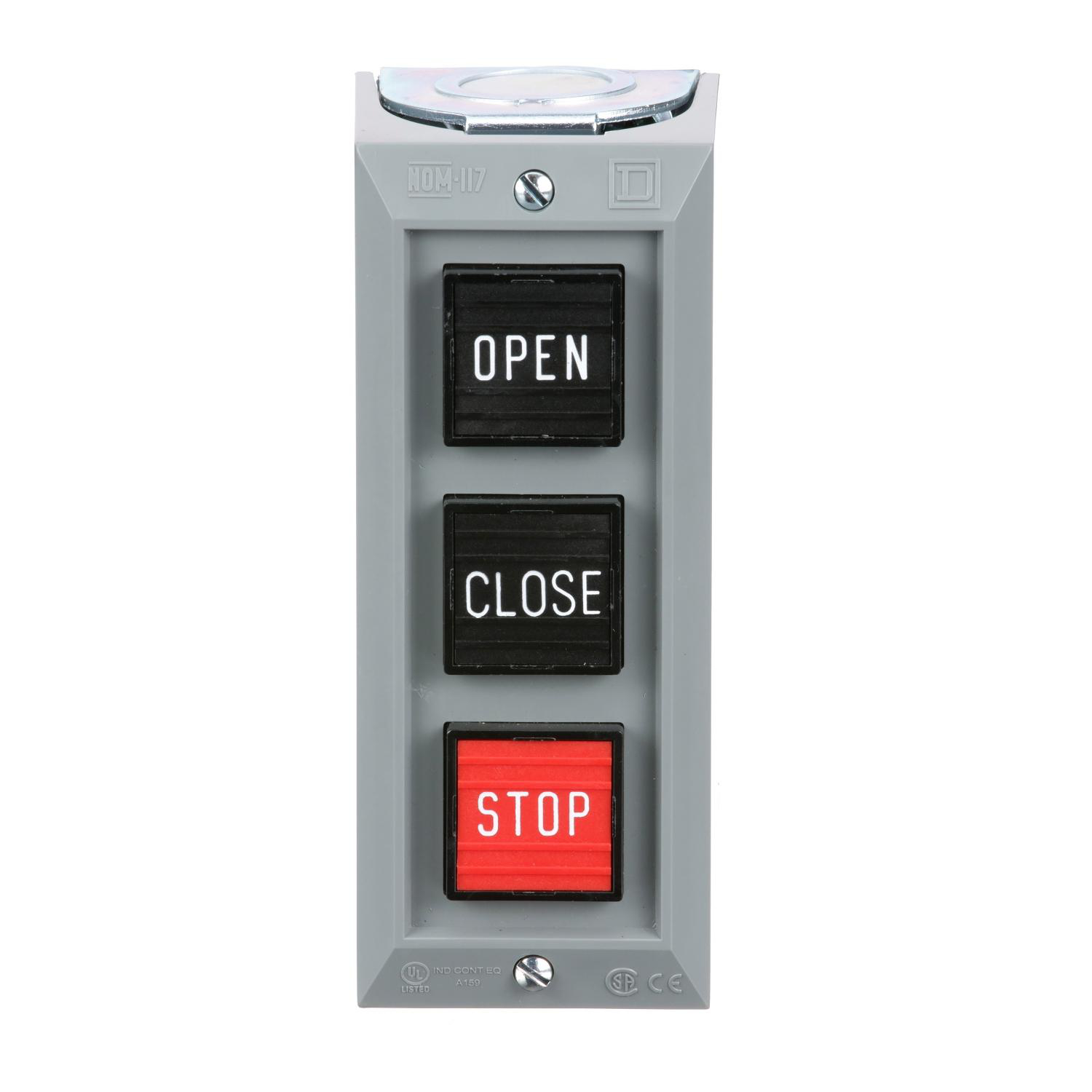

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has three square momentary push buttons. It has a OPEN push button with a normally open and a normally closed contact. It has a CLOSE push button with a normally open and a normally closed contact. It also has a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. This control station is UL Listed and CSA certified.
