PENDANT CONTROL STATION, HARMONY XAC, PLASTIC, YELLOW, PISTOL GRIP, 2 PUSH BUTTONS WITH NO+NC

Manufacturer: Telemecanique Controls | Catalog # XACA205 | Electrozad South Part # 387033
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

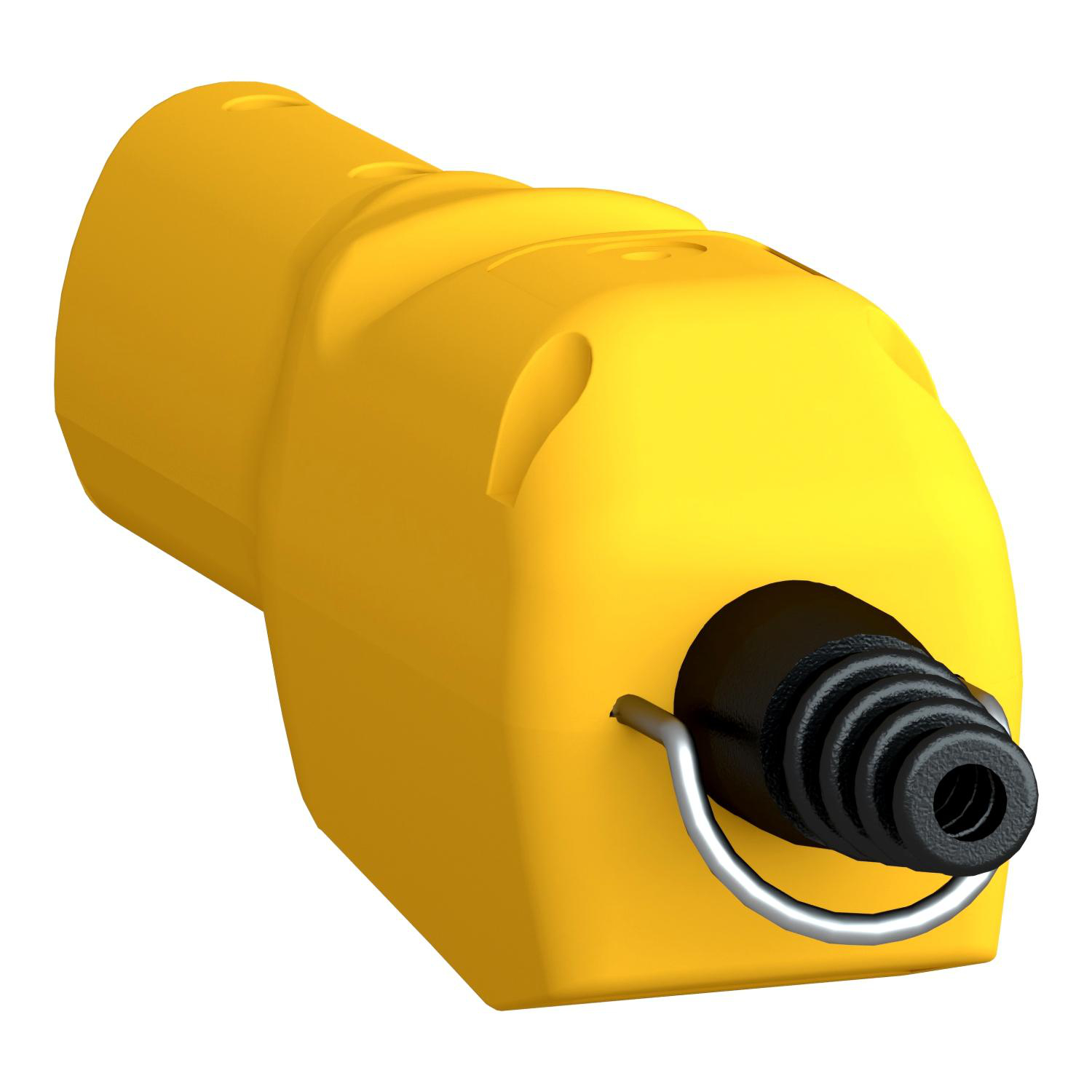

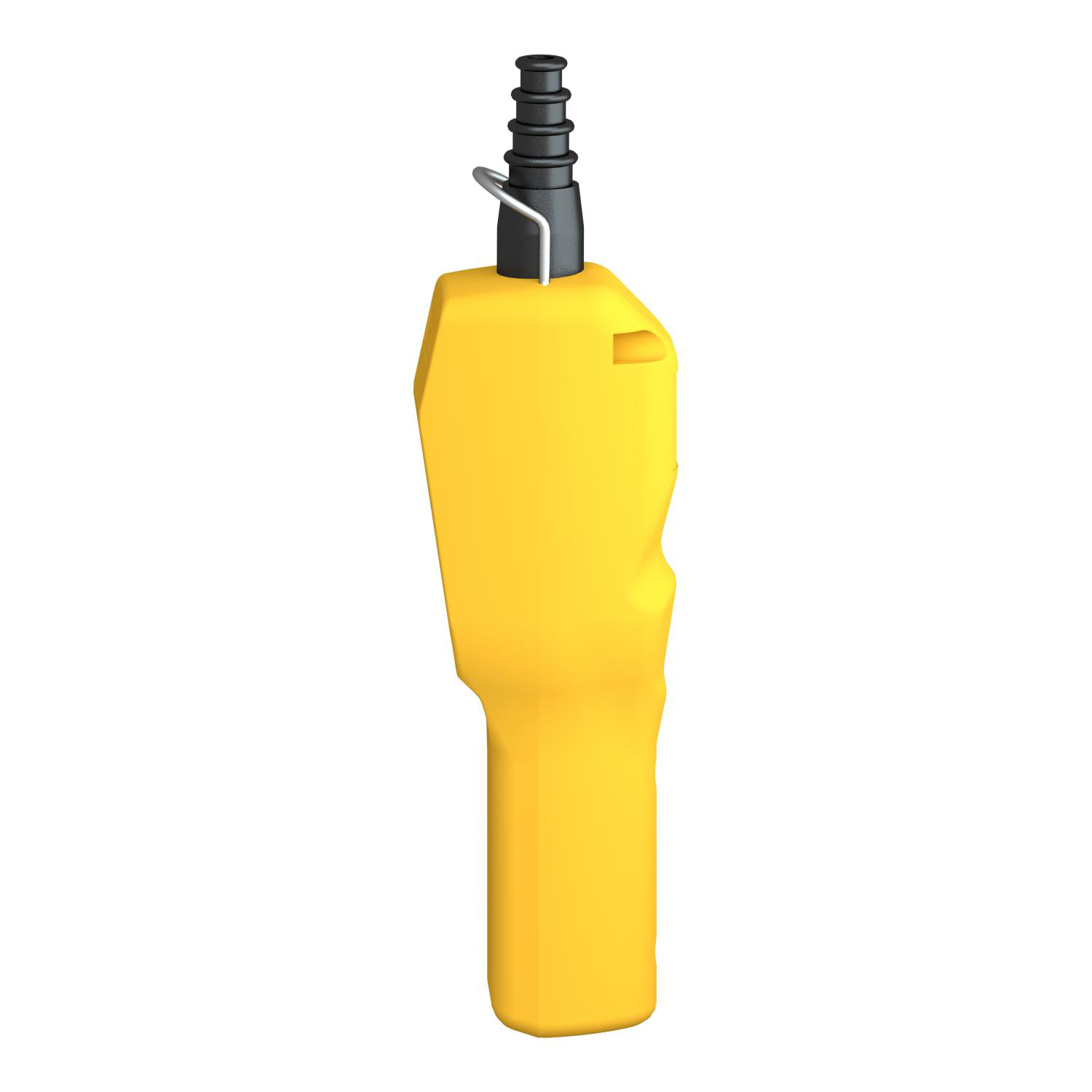

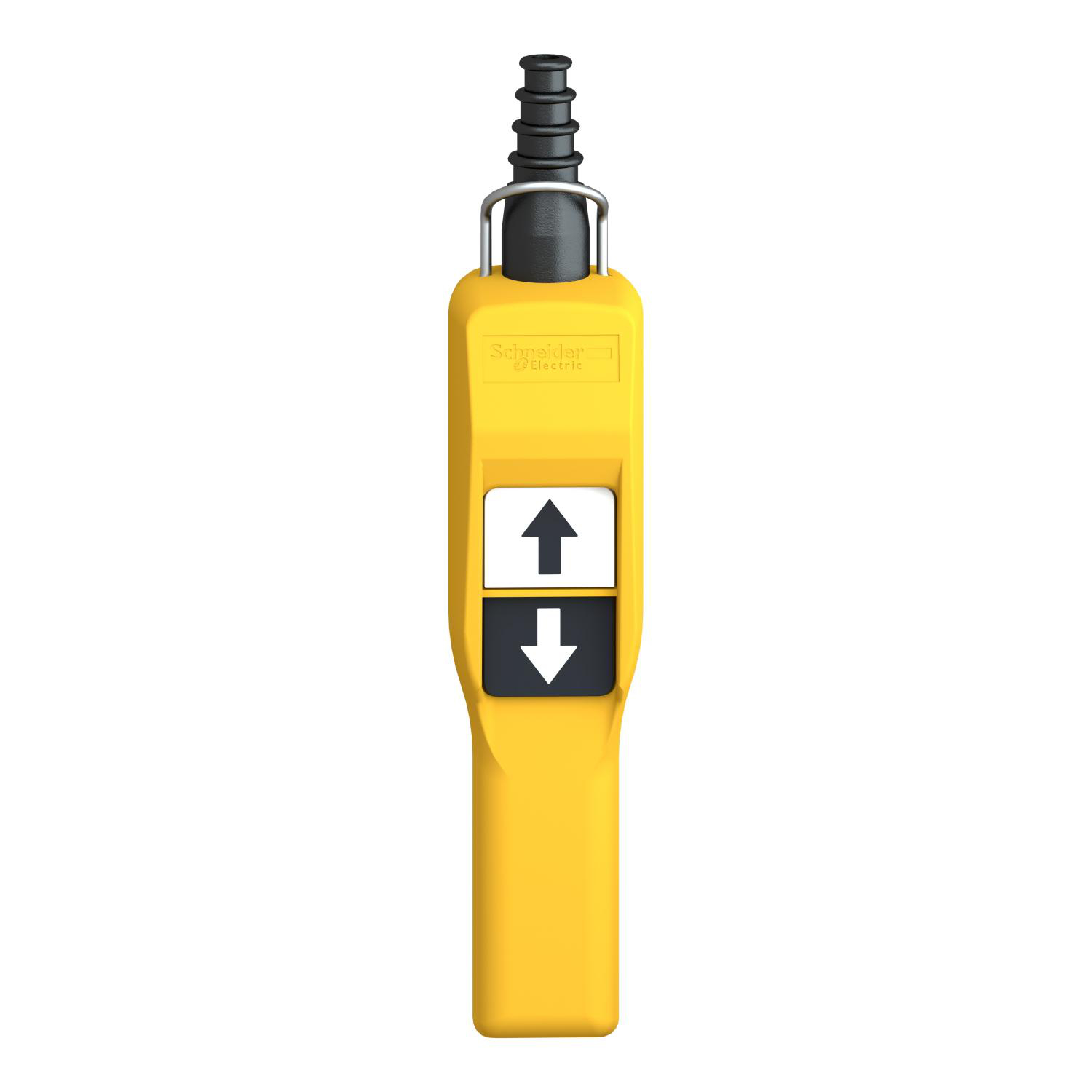

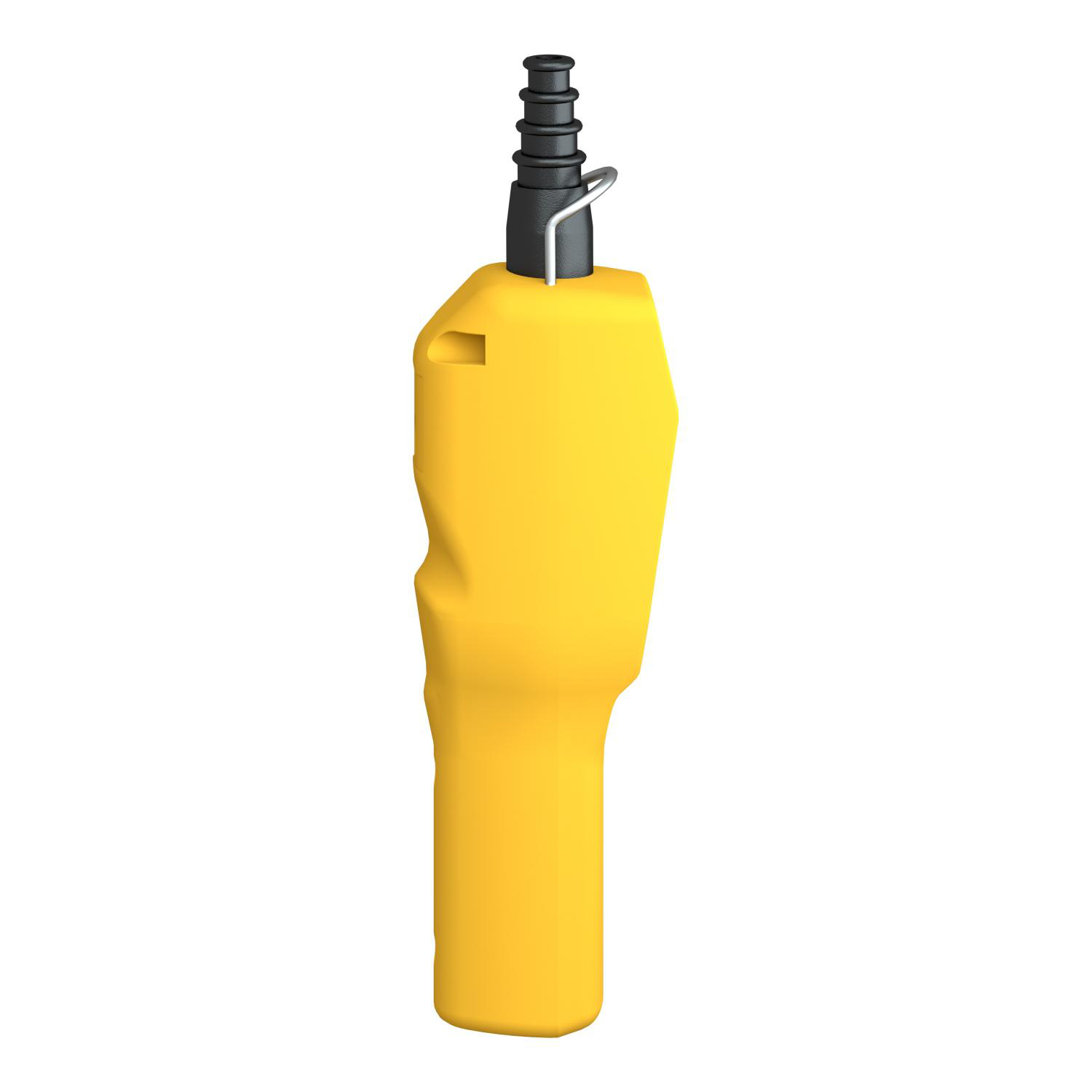

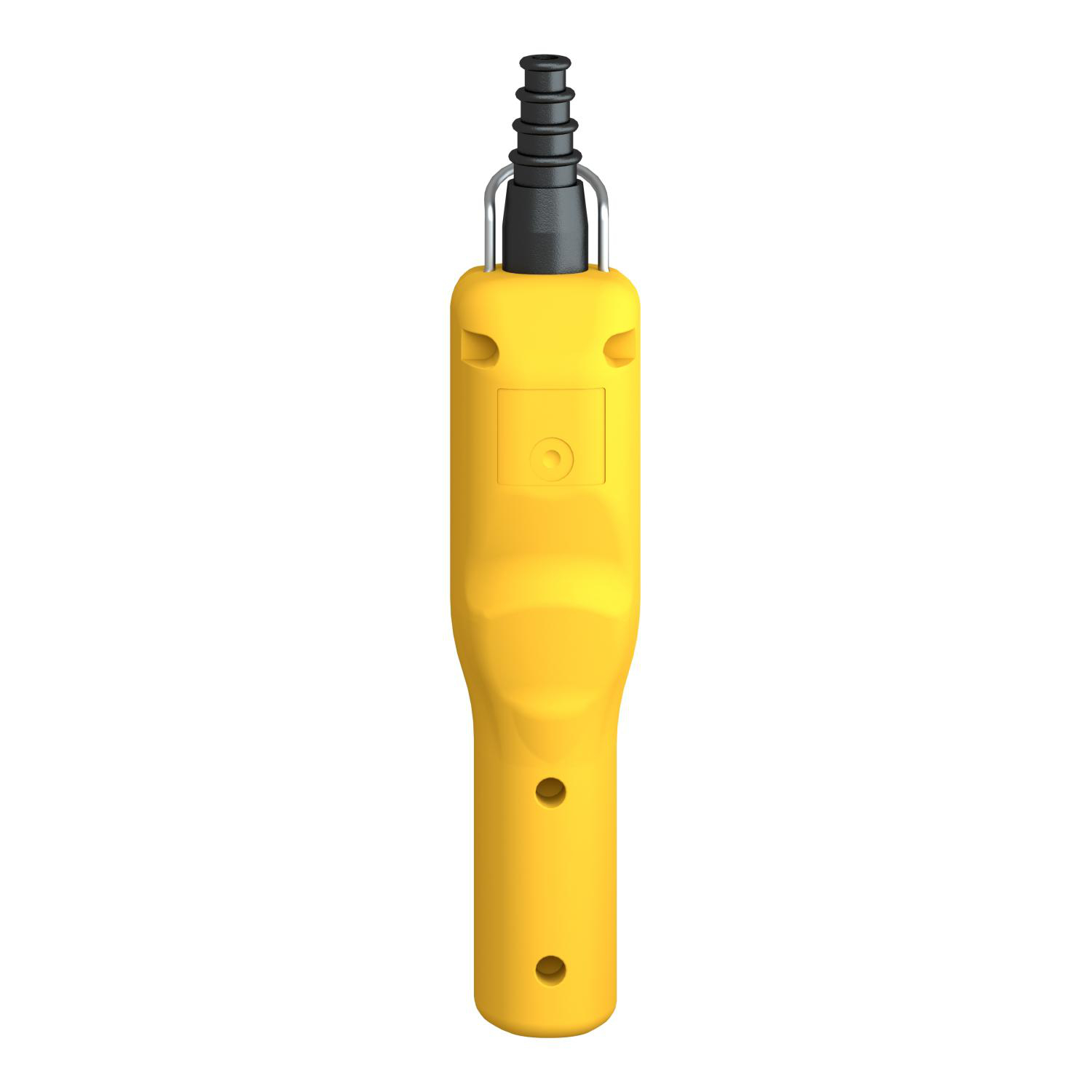

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropyl..ne enclosure with 2 standard push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.

Technical Information

Actuator
(2) PUSHBUTTONS (UP/DOWN ARROWS)
Applications
Control circuit;Control of single speed hoist motor
Cable Entry
7-15 mm
Contact Configuration
1 N.O./1 N.C. (PER OPERATOR)
Contact Rating
Slow-break
Enclosure
Polypropylene
Enclosure Material
Polypropylene
Enclosure Type
Complete Ready For Use
Material
Polypropylene
Net Weight
0.3 kg
Operating Force
13-15 N
Operating Temperature
-13158 degrees F (-2570 degrees C)
Standard
CSA C22.2 No 14,EN/IEC 60204-32,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Double insulated;Intuitive;Pendant control station
Wattage
40 Watt DC-13 1000000 CYCLES 60 CYC/MN 120 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-48 Watt DC-13 1000000 CYCLES 60 CYC/MN 48 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-65 Watt DC-13 1000000 CYCLES 60 CYC/MN 24 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XACA pistol grip

General Product Info

12-Digit UPC
389110645029
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTIN
03389110645026
Weight
0.3 kg

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Certifications
CSA,UL
Country of Origin
France
