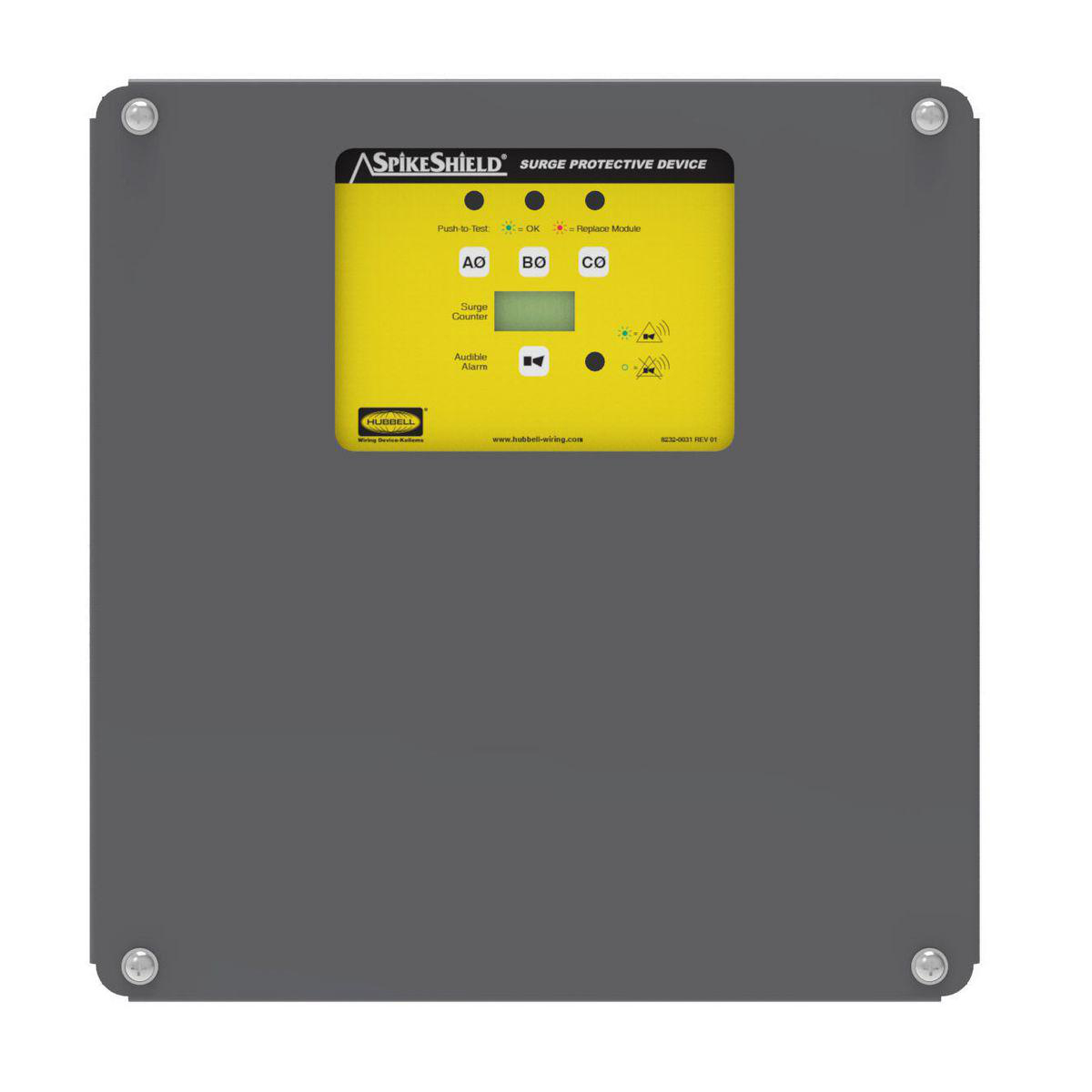

SPD PANEL, 120KA, 120/208V, C VER

Manufacturer: Hubbell Wiring Devices | Catalog # HBL4P120C | Electrozad South Part # 384798
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Surge Protective Devices, Panel, 120KAPeak Capacity, 120/208V AC, 4-Pole 5-Wire Grounding

Technical Information

Applications
Circuit Protection
Material
Composite
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Response Time
5n s
Size
Standard
TC Connection
Terminal Screws
Type
120kA
Voltage
120/208 V

Manufacturer Information

Brand
Hubbell
Sub Brand
SpikeShield

General Product Info

12-Digit UPC
783585570082
Class
Normal and Common Mode
Environmental Conditions
Indoor dry unless protected by an additional means
GTIN
00783585570082

Dimensions

Height
5.750 in
Length
13.100 in
Width
11.600 in

Certifications & Compliance

Country of Origin
Mexico
Overview
  • LED and audible alarm status indicator
  • Surge counter included in all units
  • Protect branch panels, safety switches and load centers
  • Economical, compact, modular design
  • UL1449 4th edition
  • NEMA 1 enclosure
