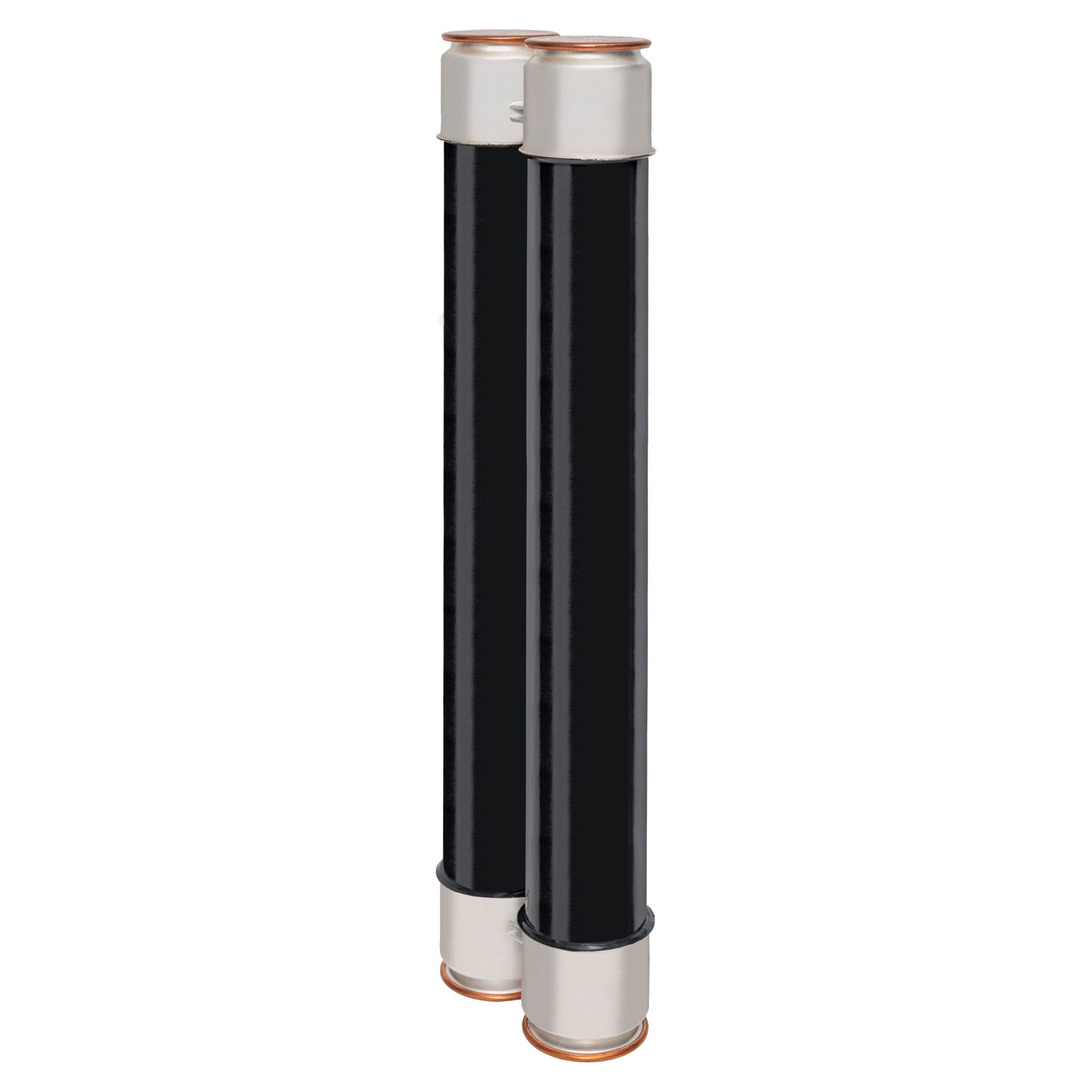

Medium Voltage E-Rated Fuse 25800VAC 100A Ferrule, Series: HNJ Visual Indicator

Manufacturer: Ferraz Shawmut Mersen | Catalog # 9F60HNJ100 | Electrozad South Part # 384546
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.

Technical Information

Amperage
100 A
Applications
Protection for 16 kV to 25 kV transformers or distribution systems.
Connection Type
Ferrule
Frequency
50/60 Hz
Indicator
Visual Indicator
Insulation Material
Epoxy
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
25800 V
TC Connection
Ferrule
Terminal Material
Silver-Plated Copper
Terminal Type
Ferrule
Type
Power Distribution Fuses E-Rated
Voltage
25800 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001397753
GTIN
10782001397750
Weight
26 lb

Dimensions

Height
6.16 in
Length
24.81 in
Width
3 in

Certifications & Compliance

Country of Origin
Mexico
