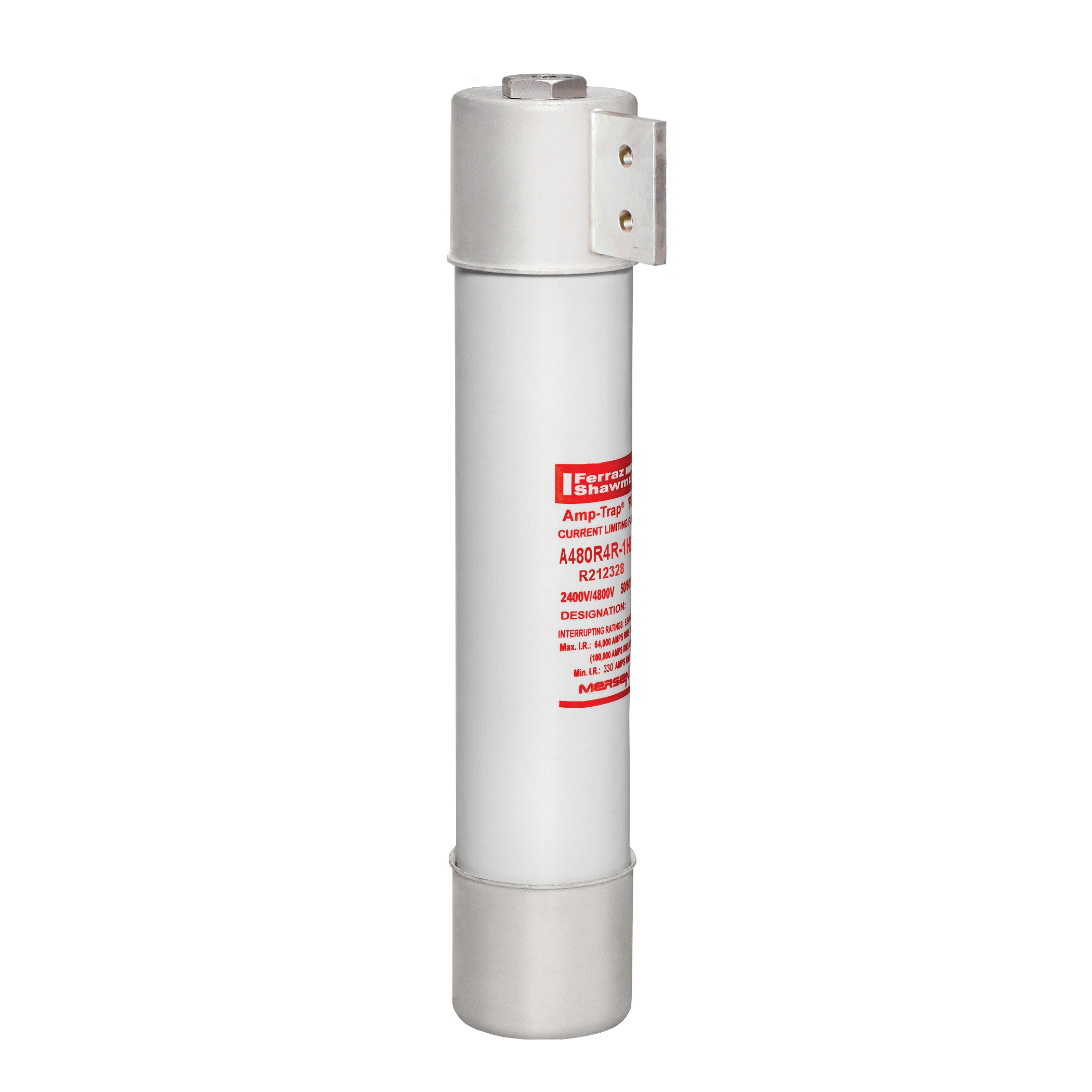

Product image for Back-Up R-Rated Medium Voltage Fuse 4800VAC 4R Mounting: Ferrule Style: Hookeye Visual Indicator Amp-Trap®
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Back-Up R-Rated Medium Voltage Fuse 4800VAC 4R Mounting: Ferrule Style: Hookeye Visual Indicator Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A480R4R-1HE | Electrozad South Part # 384382
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips

Technical Information

Applications
Short circuit protection of medium voltage motors and motor controllers.
Connection Type
Ferrule
Contact Material
Silver-Plated Copper
Frequency
50/60 Hz
Indicator
Visual Indicator
Insulation Material
Epoxy
Interrupt Rating
65 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
4800 V
TC Connection
Ferrule
Temperature Rating
80 degrees C
Terminal Material
Silver-Plated Copper
Terminal Type
Ferrule
Type
R-Rated
Voltage
4800 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001801458
Construction
Epoxy
GTIN
10782001801455
Weight
11.2 lb

Dimensions

Diameter
3 in
Height
3 in
Length
16.13 in
Width
3 in

Certifications & Compliance

Country of Origin
Mexico
