3M™ Cold Shrink Insulator, 8428-18, 500-800 kcmil (300-400mm..), 1 kV

Manufacturer: 3M | Catalog # 8428-18 | Electrozad South Part # 383957
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

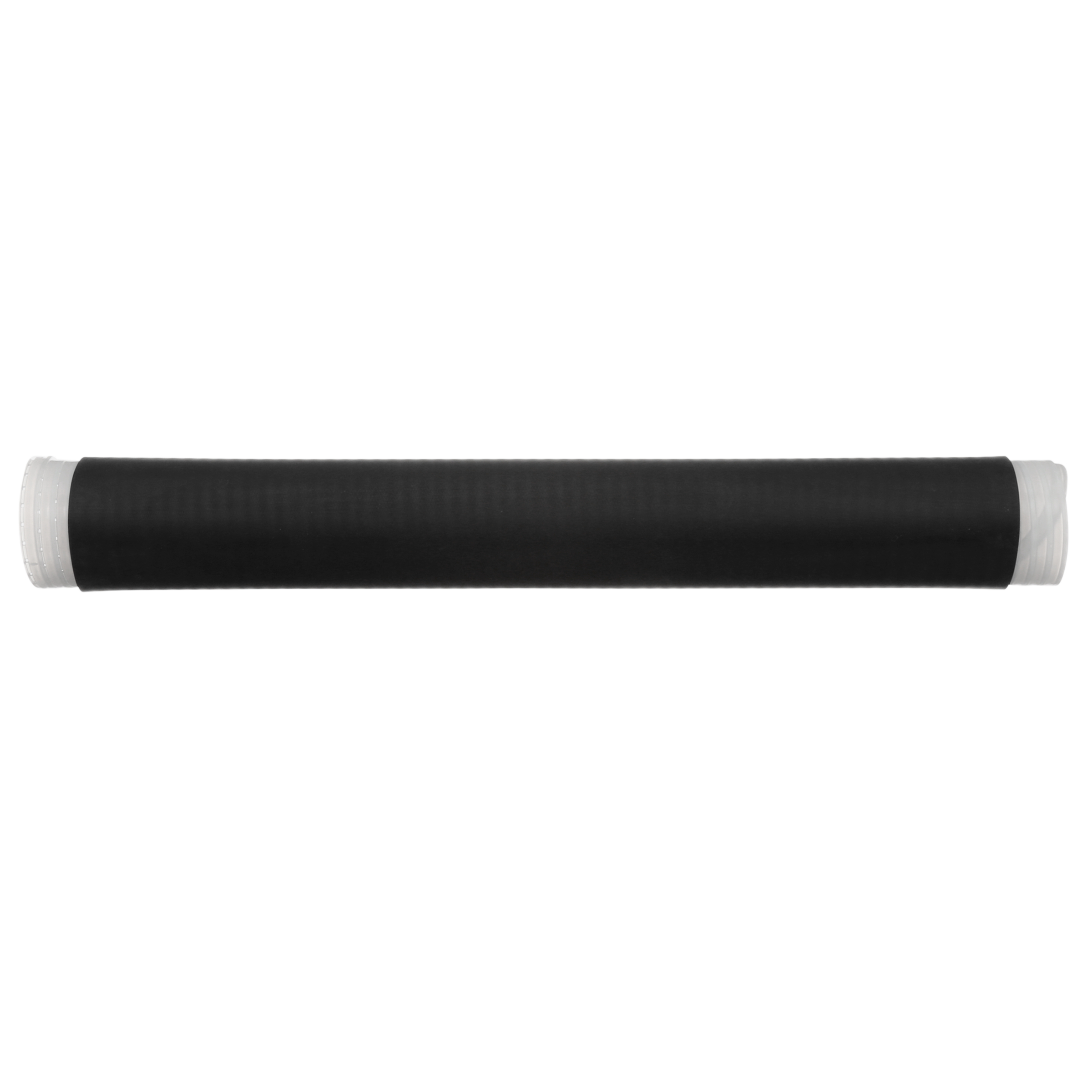

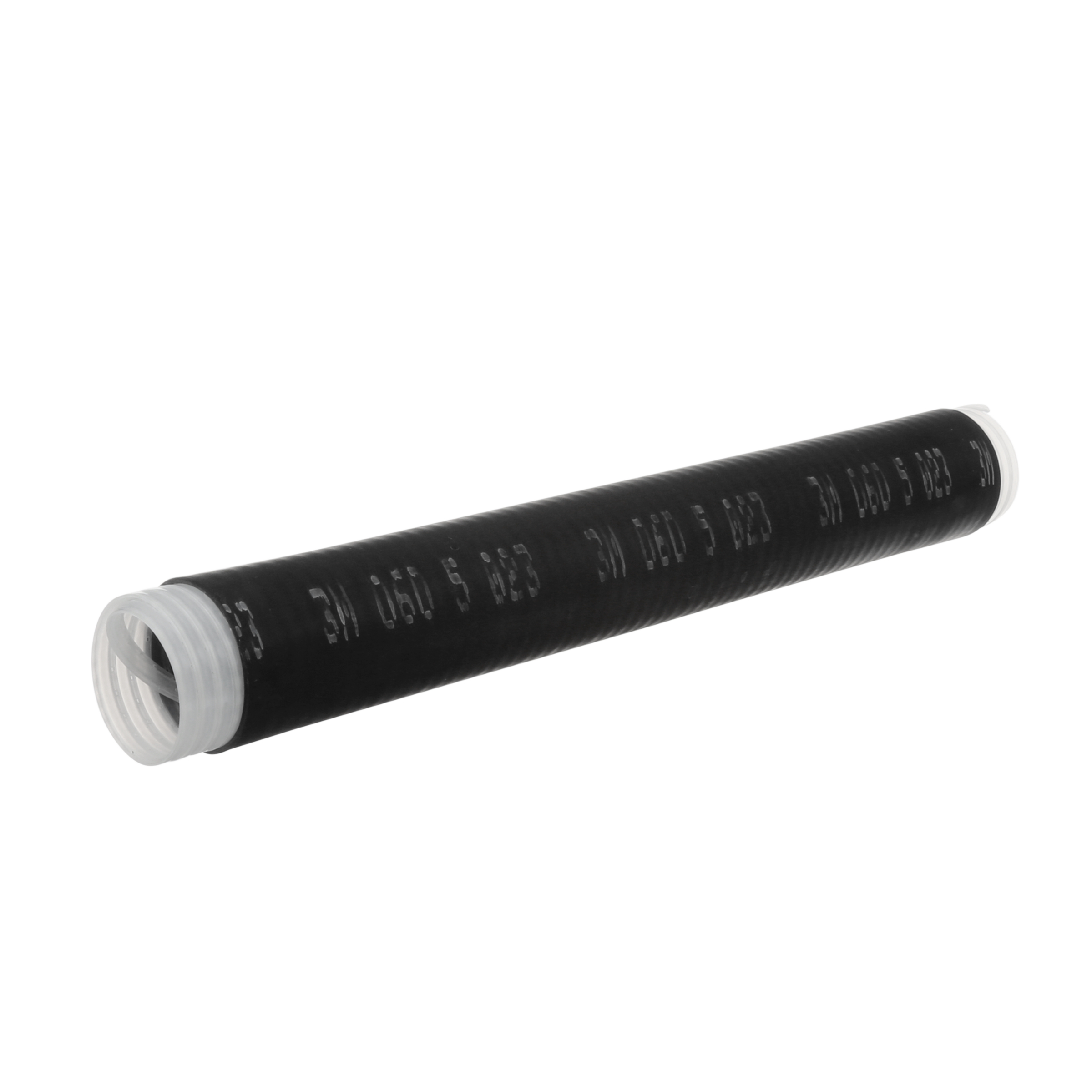

3M™ Cold Shrink Insulators are open-ended, tubular, EPDM rubber sleeves which are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal.

Technical Information

Applications
Insulation, Mechanical Protection, Repair
Conductor Material
Aluminum,Copper
Conductor Size
500 MCM
Material
EPDM
Max Operating Temperature
194 degrees F
Temperature Rating
-55 to 255 degrees C
Voltage
1 kV
Wall Thickness
4.57 mm

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007344612
Color
Black
GTIN
00054007344612

Dimensions

Overall Length
18 in
