7692-S-4 QTIII SKIRTED P60, 1KT/CTN

Manufacturer: 3M | Catalog # 7692-S-4 | Electrozad South Part # 383676
$1,753.48 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet Technical Drawing

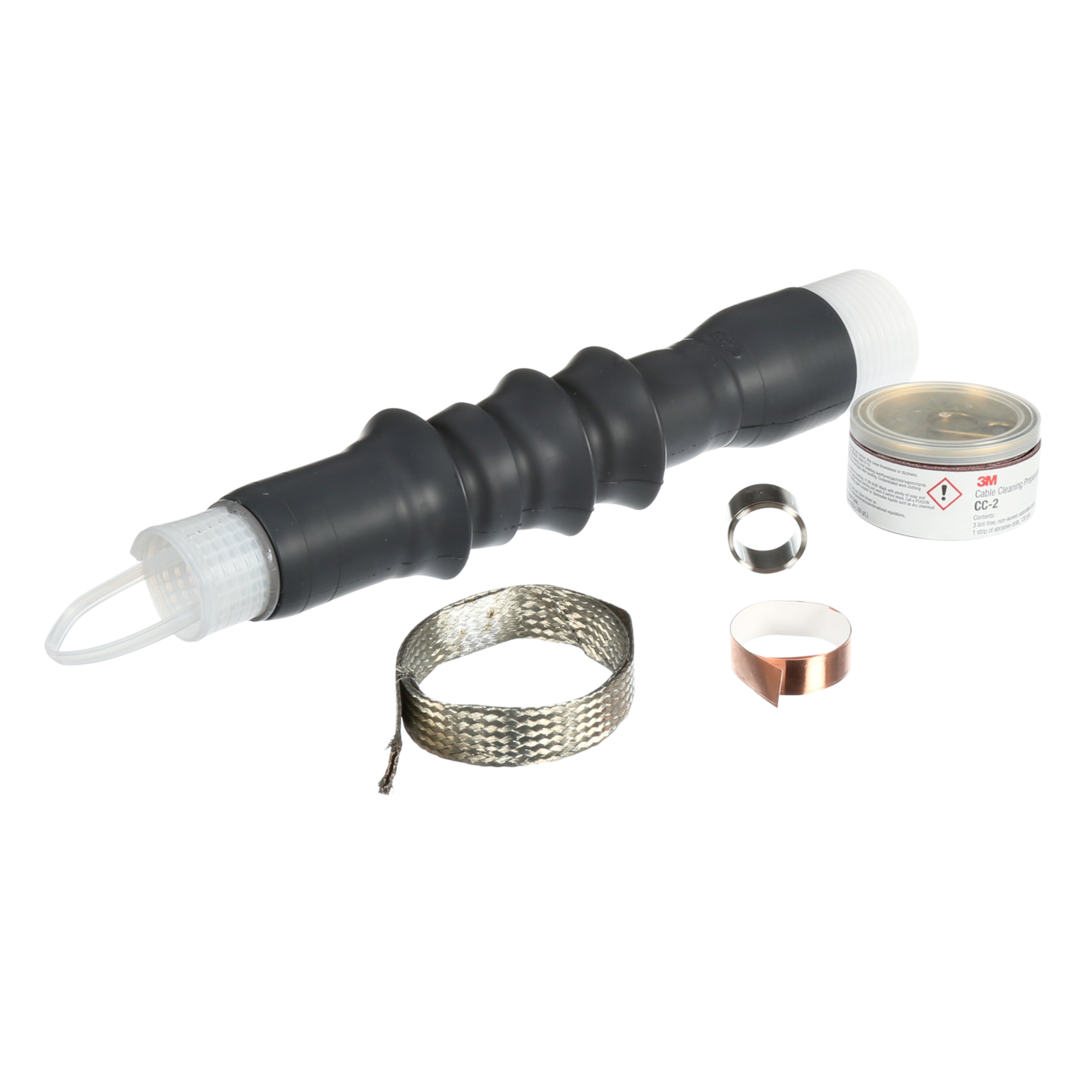

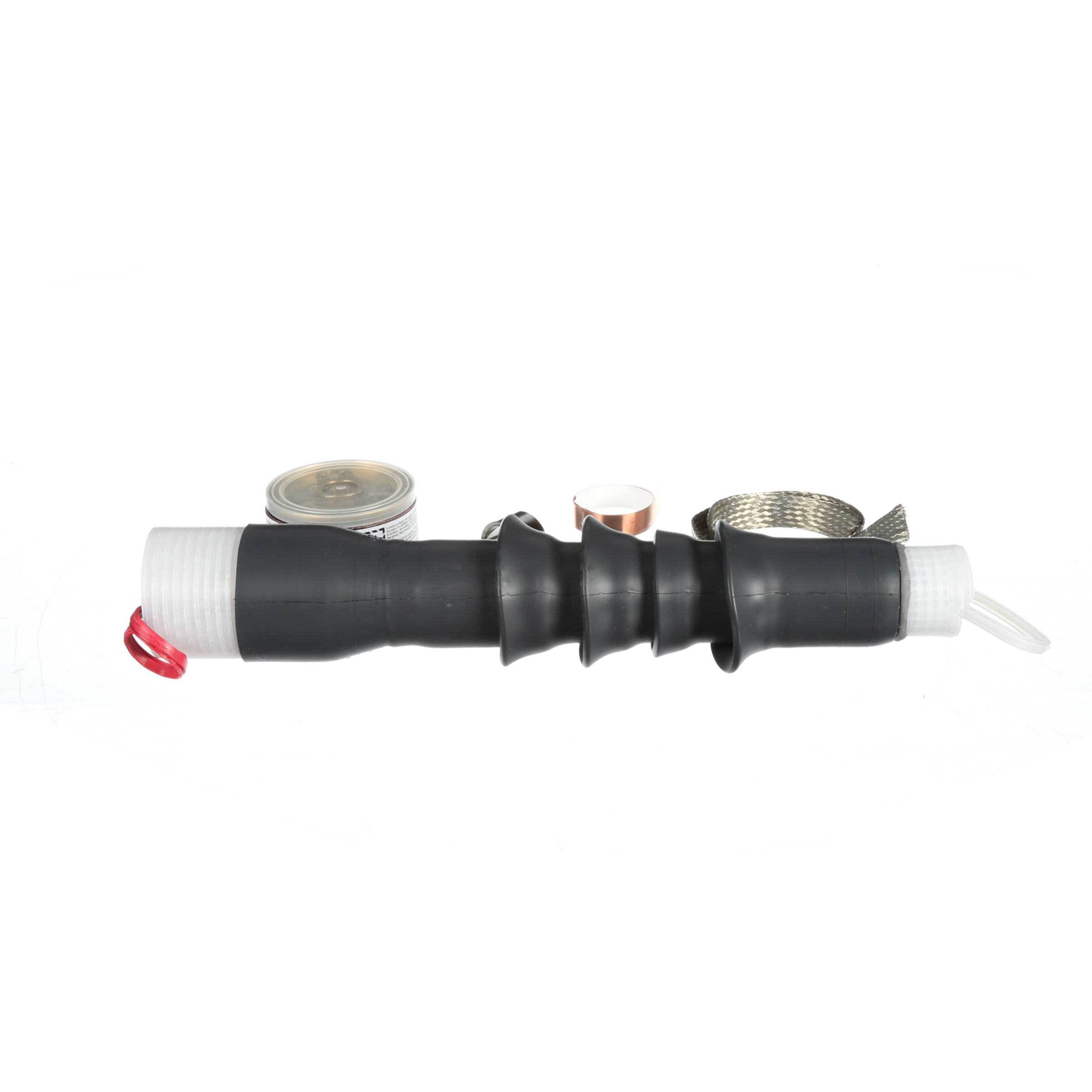

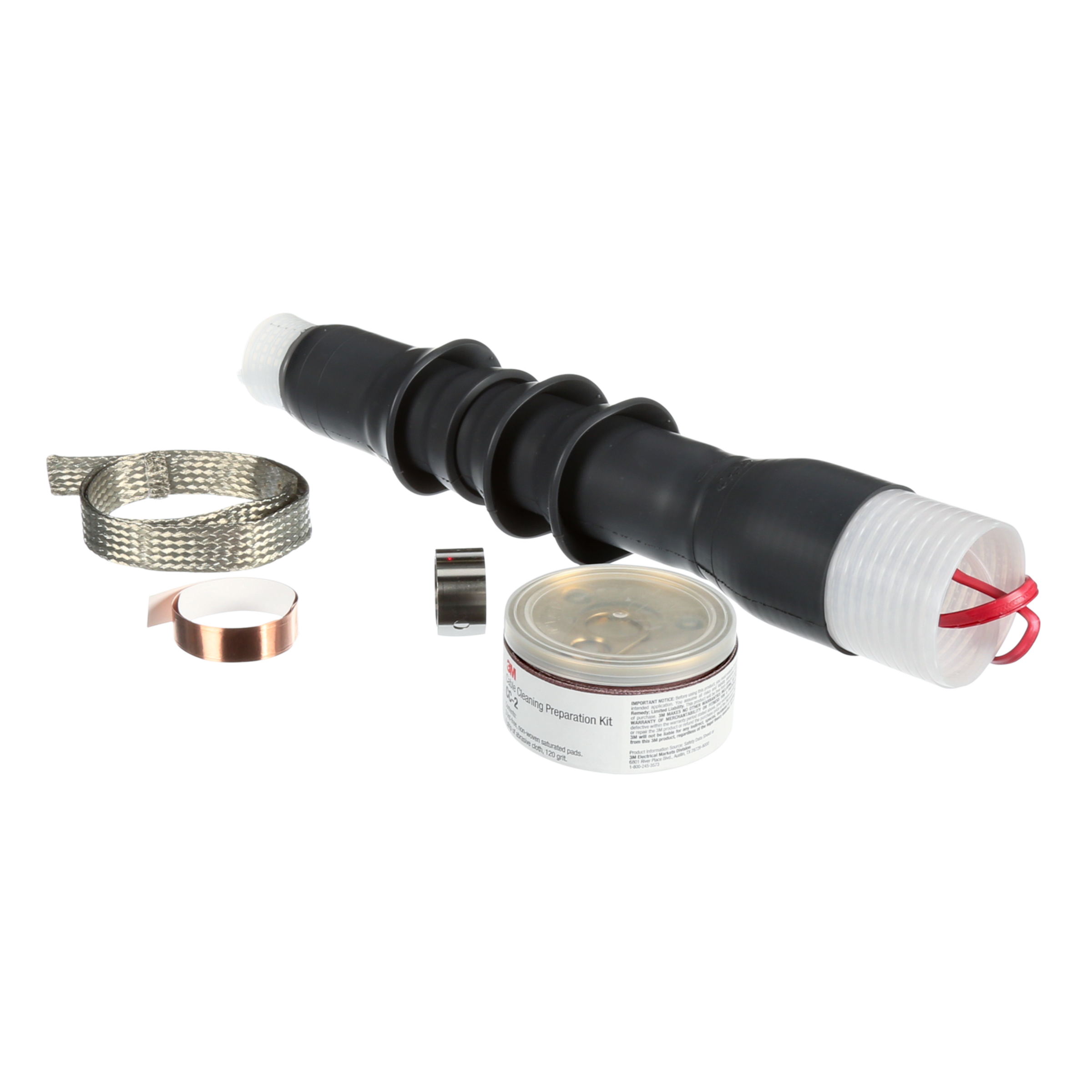

3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 4 Skirt Termination 7692-S-4 has a conductor size range for 5 kV: 4/0 AWG-400 kcmil, 8 kV: 3/0 AWG-300 kcmil, 15 kV: 2-4/0 AWG and 25/28 kV: 2-1/0 AWG.

Technical Information

Conductor Size
16.256 mm
Indoor Outdoor
Outdoor Skirted
Insulation Diameter Range
16.256 mm
Number of Conductors
1
Shielding Type
Tape Shield,UniShield®,Wire Shield
Type
UniShield, QT-III, Indoor, Non-Skirted
Voltage
15 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007422112
GTIN
00054007422112
Product UPC
05400742211

Certifications & Compliance

Country of Origin
USA
