Plug locking 2P 3W 250V 15AMP black

Manufacturer: Leviton Manufacturing | Catalog # 4570-B | Electrozad South Part # 383244
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet

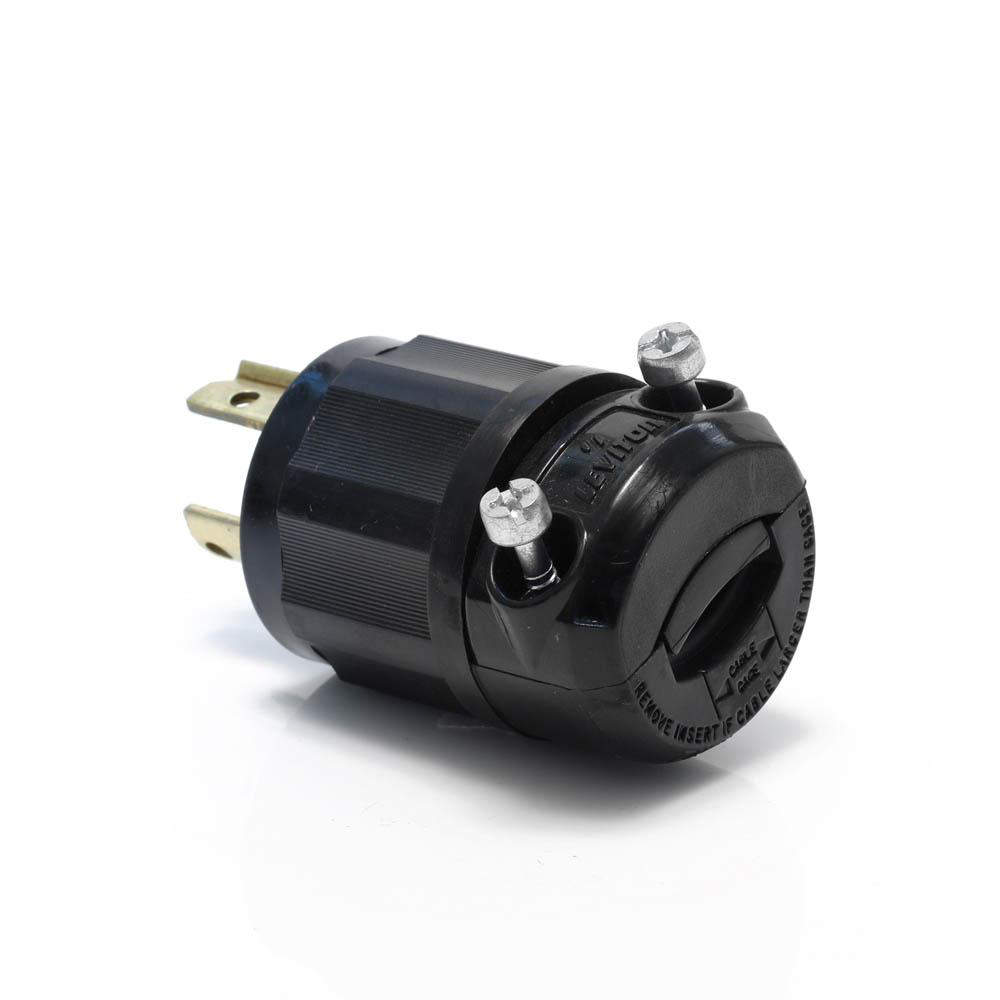

Locking plug, industrial grade, grounding, NEMA L6-15P, nylon body material.

Technical Information

Amperage
15 A
Applications
For Industrial Use
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Contact Material
Solid Brass
Cord Size
1/4 - 0.685 in
Device Type
Locking Plug
Dielectric
2000 V
Dielectric Strength
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Yes
Horsepower
1-1/2 hp
Material
Super Tough Nylon (Body), Zinc Plated Steel Screw
Mounting Type
Cable
NEMA
WD-1, WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
1.53 Dia x 1.98 H IN
Standard
ANSI C-73
Temperature Rise
200 %
Terminal Size
18-10 AWG
Type
Locking Plug
Voltage
250 V
Wire Count
3
Wire Size
18 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477143018
Color
Black
Environment
Dry
Environmental Conditions
-40 to 60 °C
GTIN
00078477143018

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
