EMERGENCY STOP HEAD, HARMONY XB4, SWITCHING OFF, METAL, RED MUSHROOM 60MM, 22MM, TRIGGER LATCHING TURN TO RELEASE

Manufacturer: Schneider Kreuznach B & W | Catalog # ZB4BS864 | Electrozad South Part # 383221

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

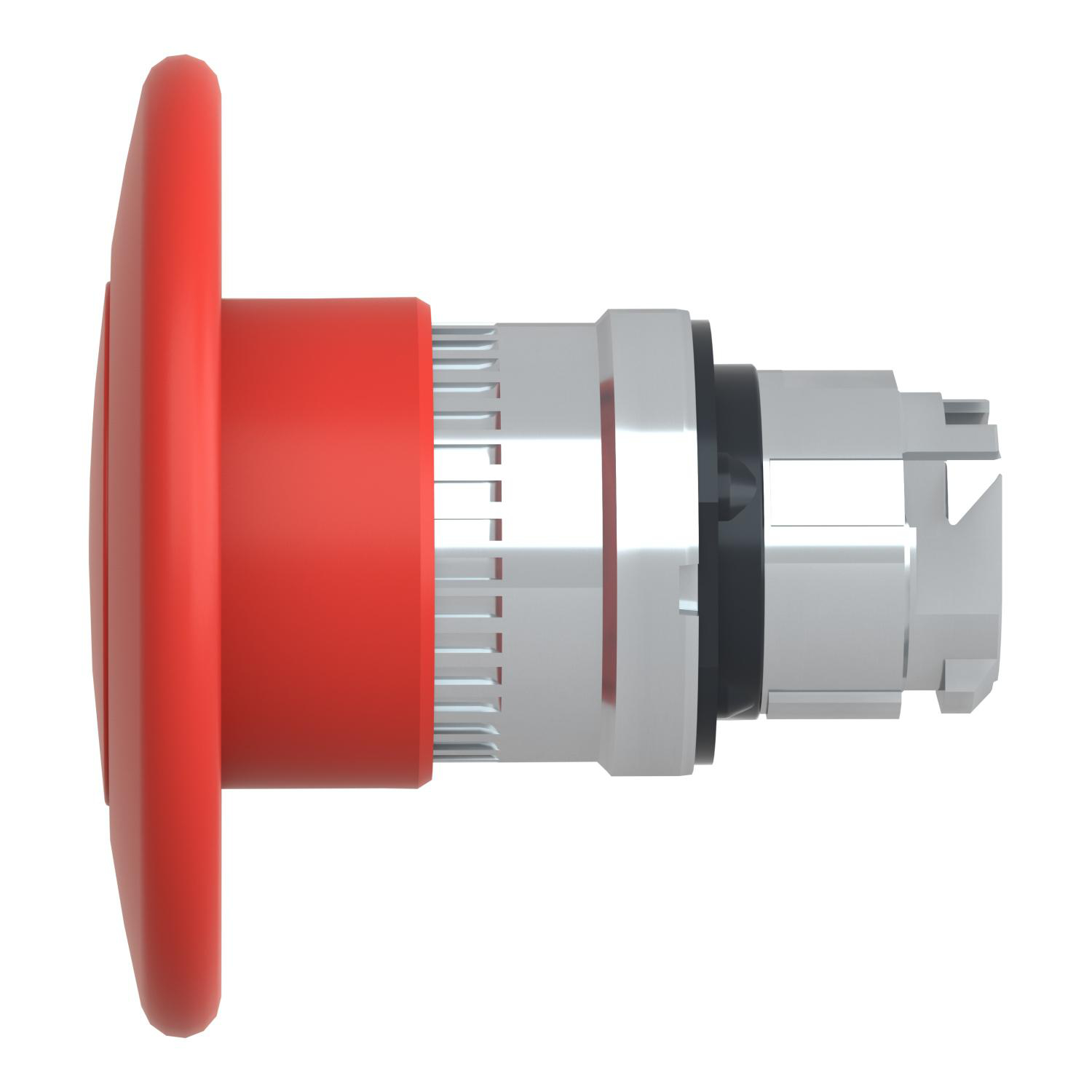

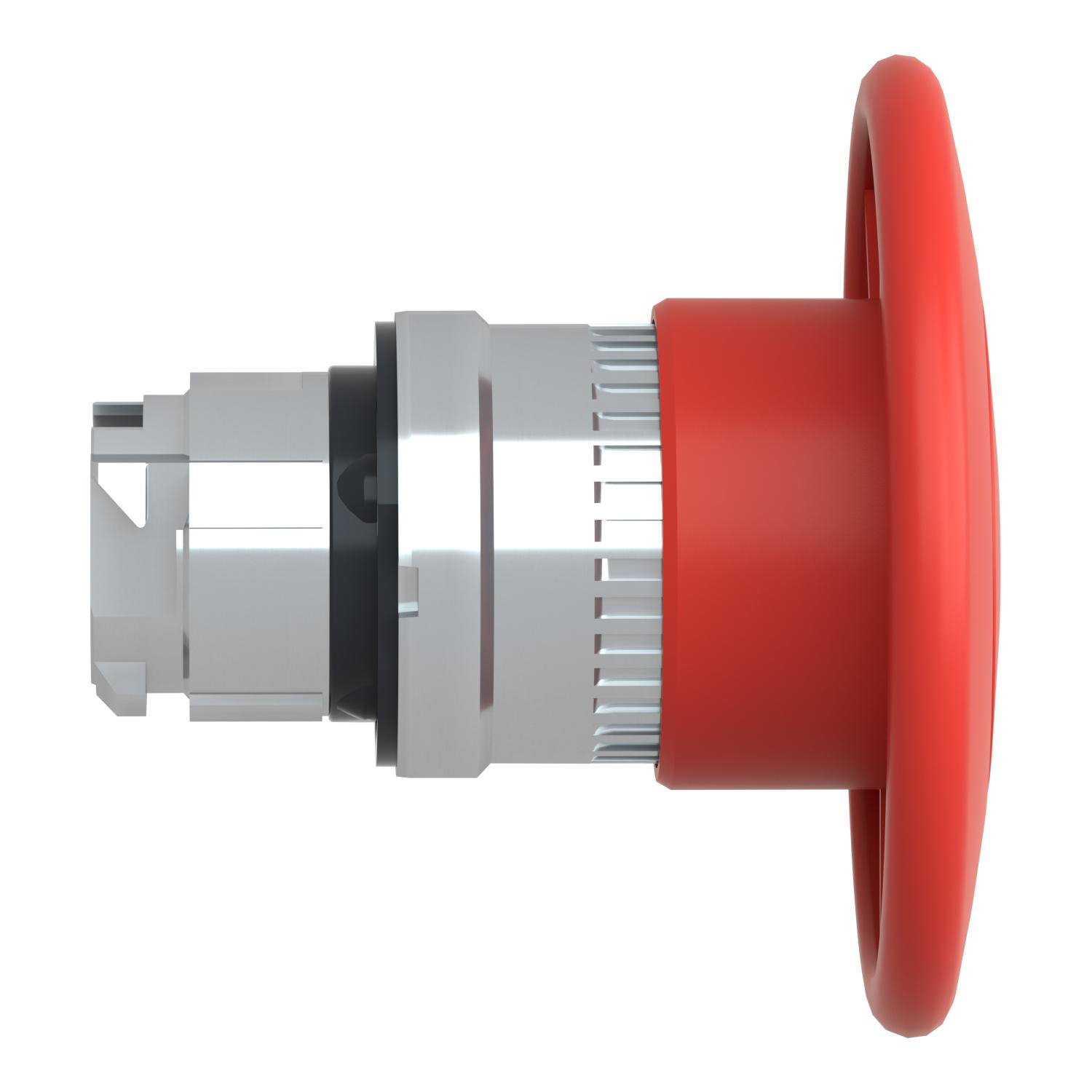

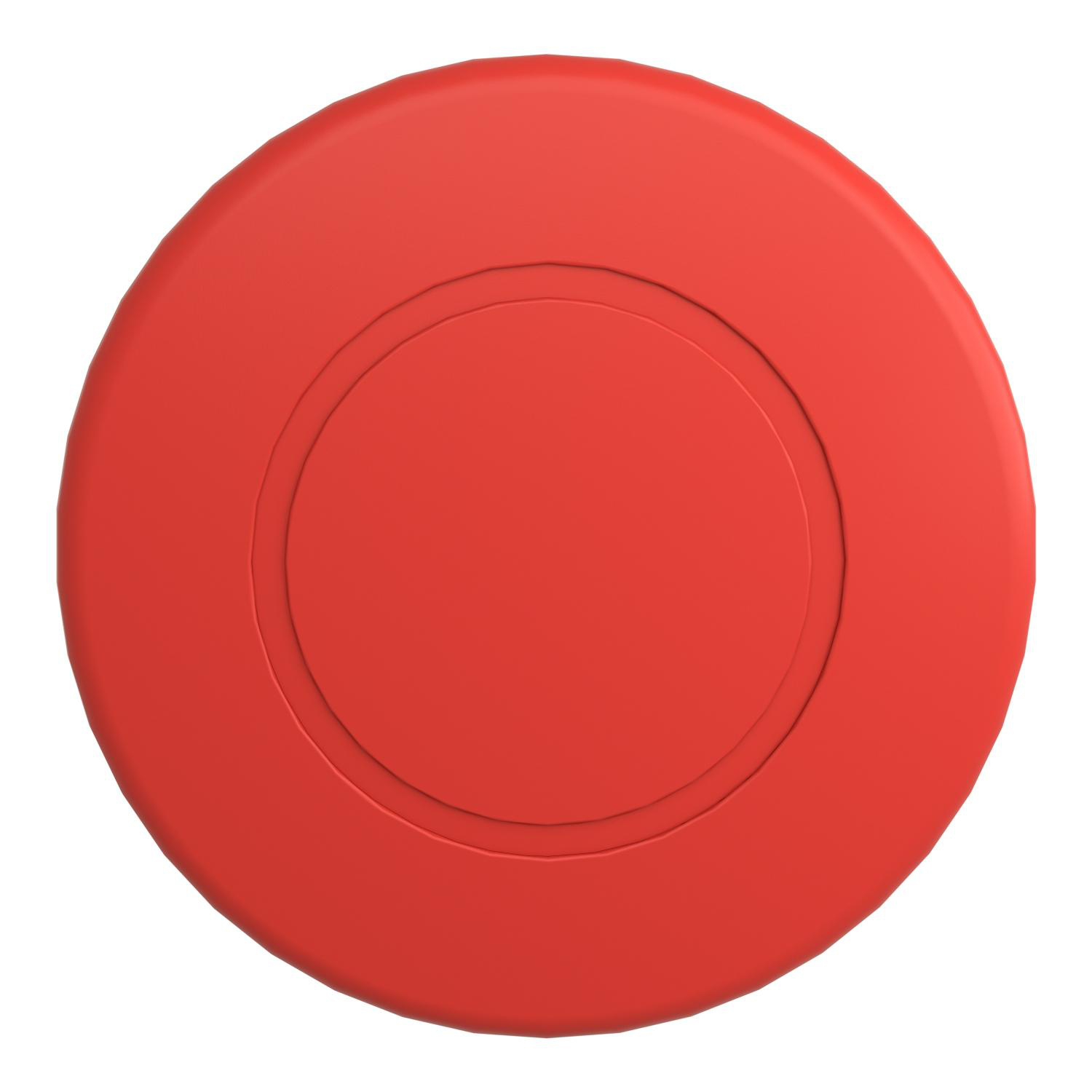

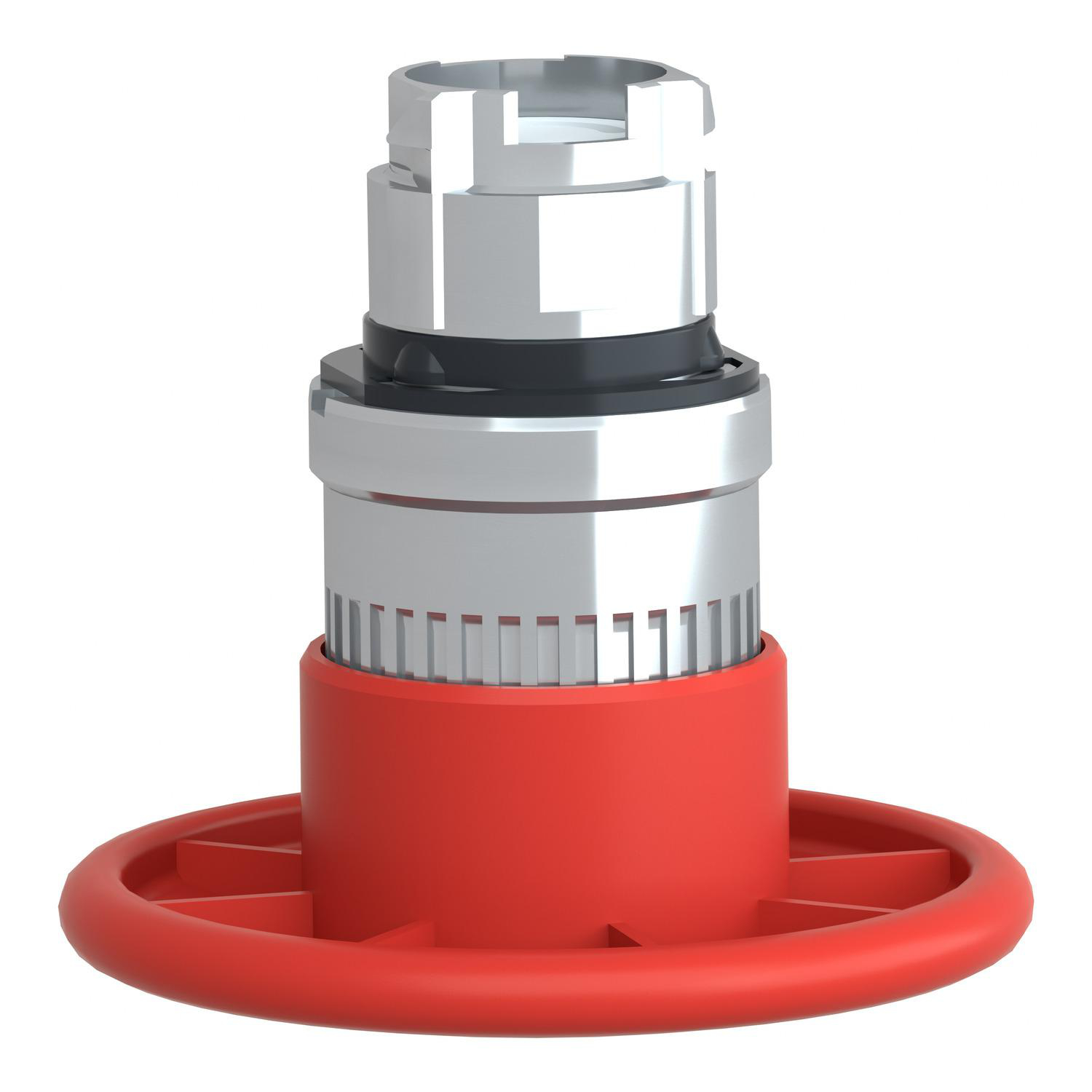

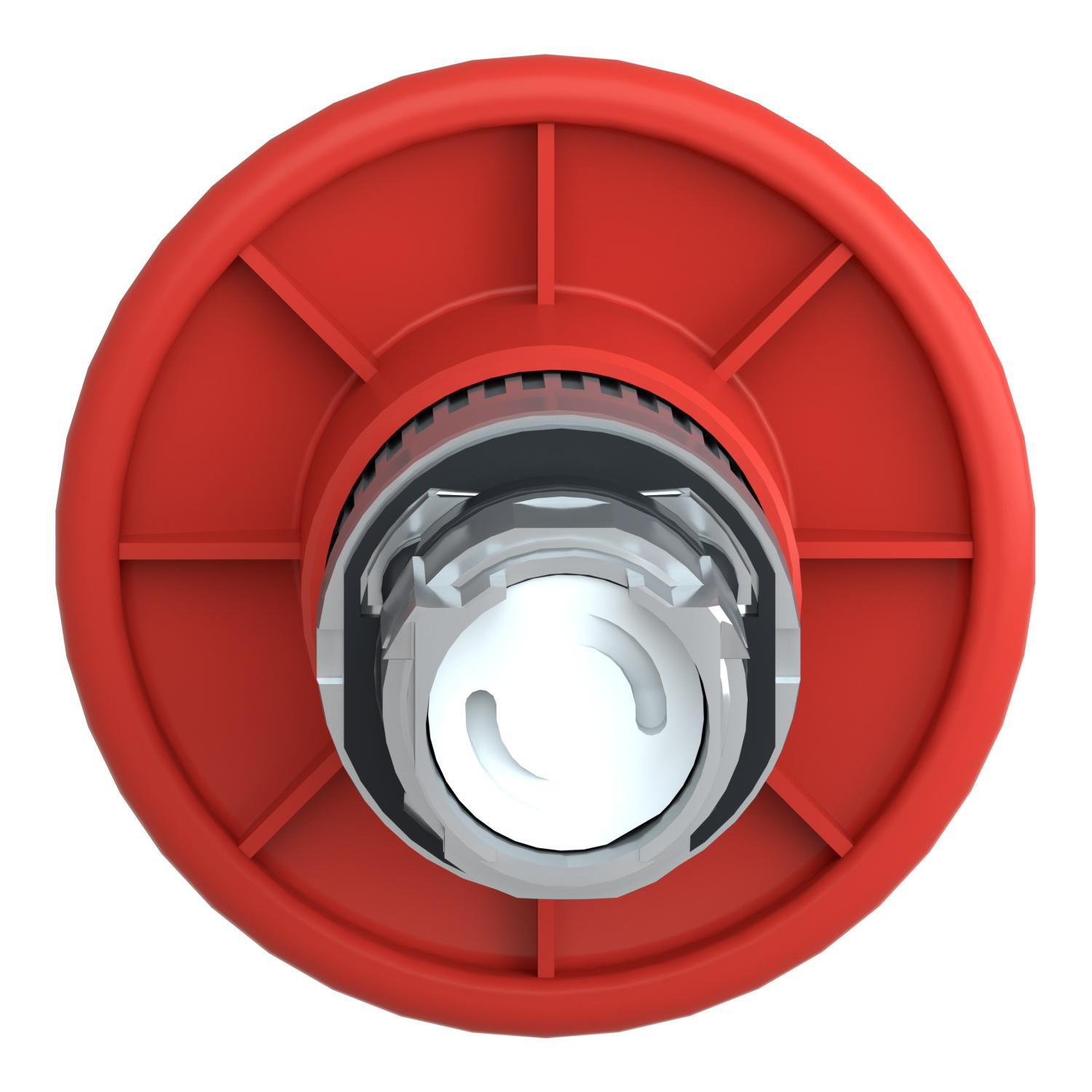

This Harmony XB4, emergency stop / shutdown 60mm mushroom red button head operates with a latched turn to release mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40..C to 70..C allows versatility in usage of product.

Technical Information

Bezel Material
Chromium Plated Metal, Chromium Plated Metal
Head Type
Standard
Net Weight
0.093 kg
Standard
CSA C22.2 No 14,GB 14048.5,IEC 60204-1,IEC 60364-5-53,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,ISO 13850,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
389110801821
Color
Red
GTIN
03389110801828
Weight
0.093 kg

Dimensions

Height
60 mm
Warranty Length
18 mth
Width
60 mm

Certifications & Compliance

Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
Czechia
