POWER DISTRIBUTION BLOCK, LINERGY, 3 POLE, 1 LINE, 1 LOAD, 115A CU, 90A AL, 600V

Manufacturer: Schneider | Square D | Catalog # 9080LBA361101 | Electrozad South Part # 382726
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Technical Drawing

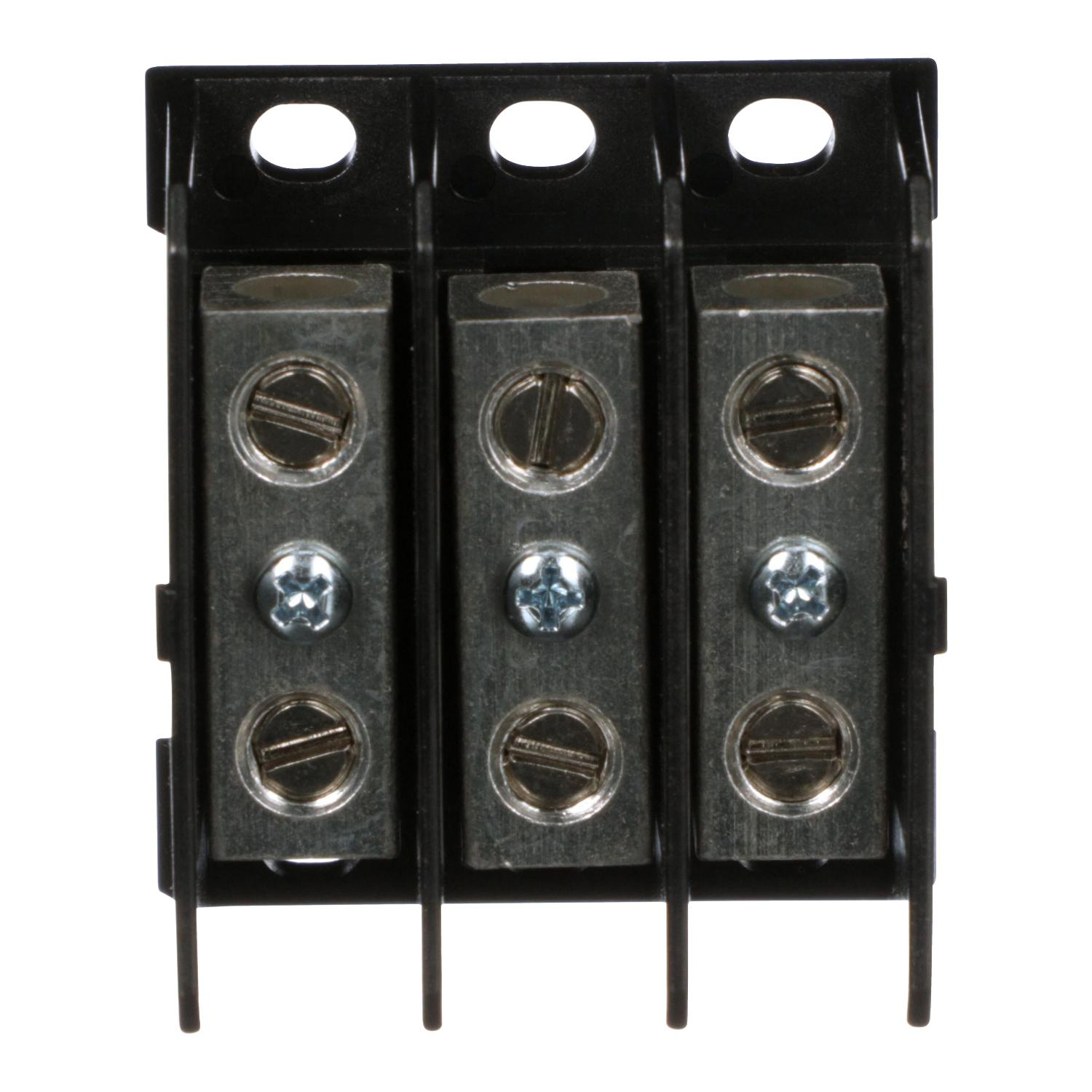

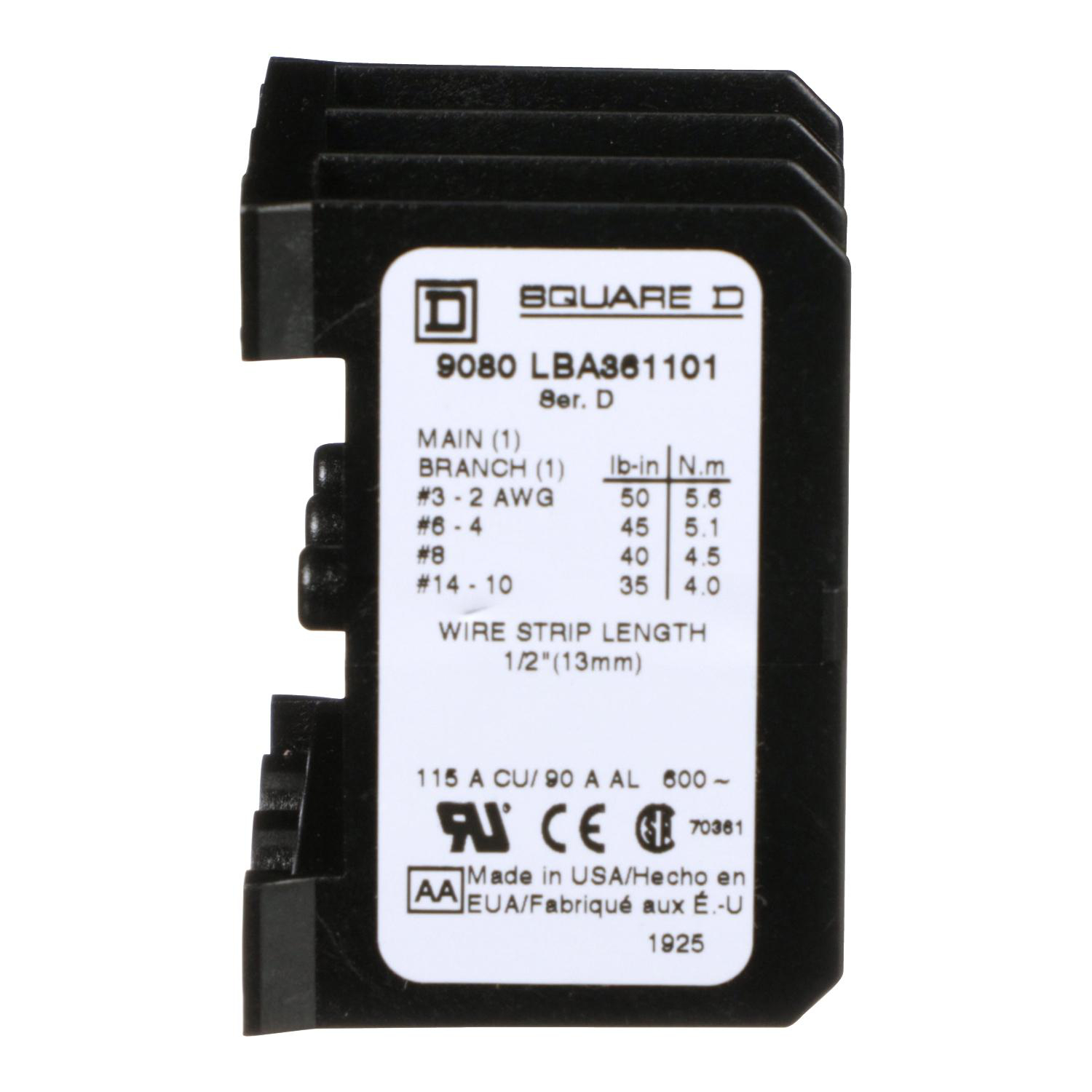

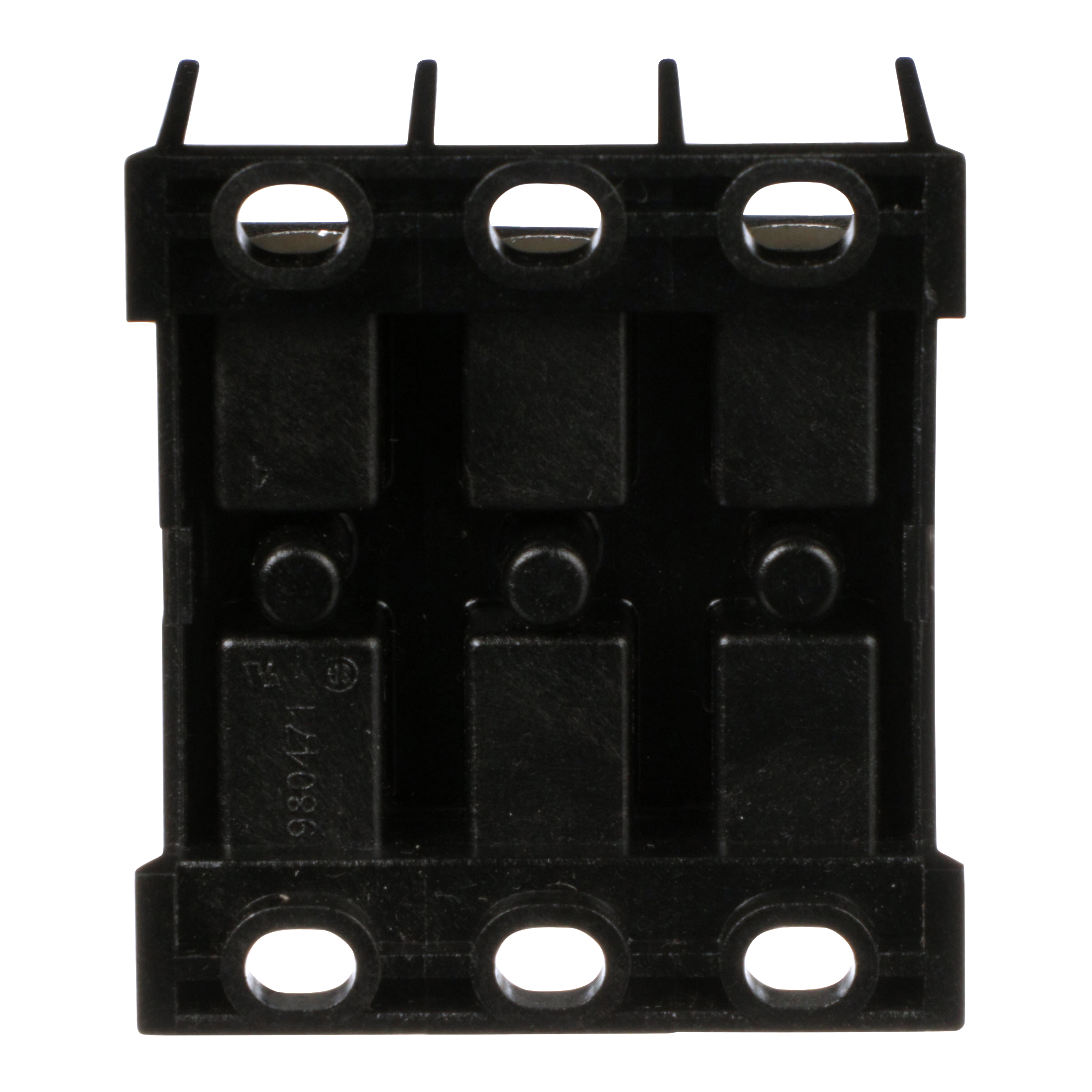

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one 14 to 2 copper or aluminum wire. The load side lug is rated to accept one 14 to 2 copper or aluminum wires. The lugs are made of aluminum. The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Technical Information

Applications
9080LB,9080LB13
Current
115 A
Line Rated Current
115-115 A
Material
Thermoplastic: Block
Mounting Type
Surface Mount
Number of Poles
3
Number of Terminations
1

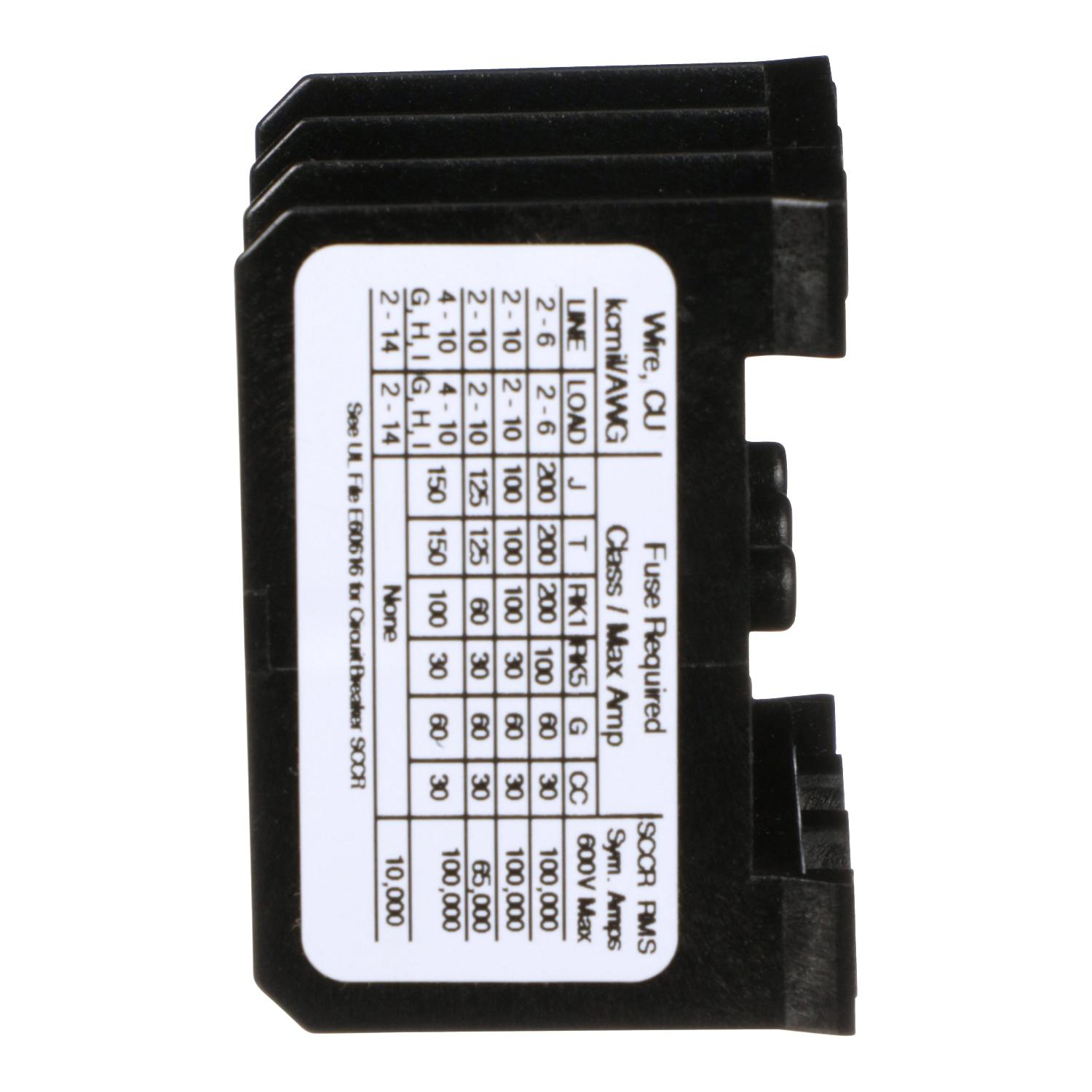

Short Circuit Current
65 kA
Short Circuit Current Rating
65 kA
Size
1.62 in
Strip Length
0.5 in
TC Connection
tin plated aluminium lugs
Type
Miniature Power Distribution Block
Voltage
600 V
Wire Size
Line 1, AWG 14...AWG 2, copper or aluminium;Load 1, AWG 14...AWG 2, copper or aluminium

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901097426
GTIN
00785901097426

Dimensions

Depth
1.62 in
Height
2.29 in
Warranty Length
18 mth
Width
2.12 in

Certifications & Compliance

Certifications
CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
USA
