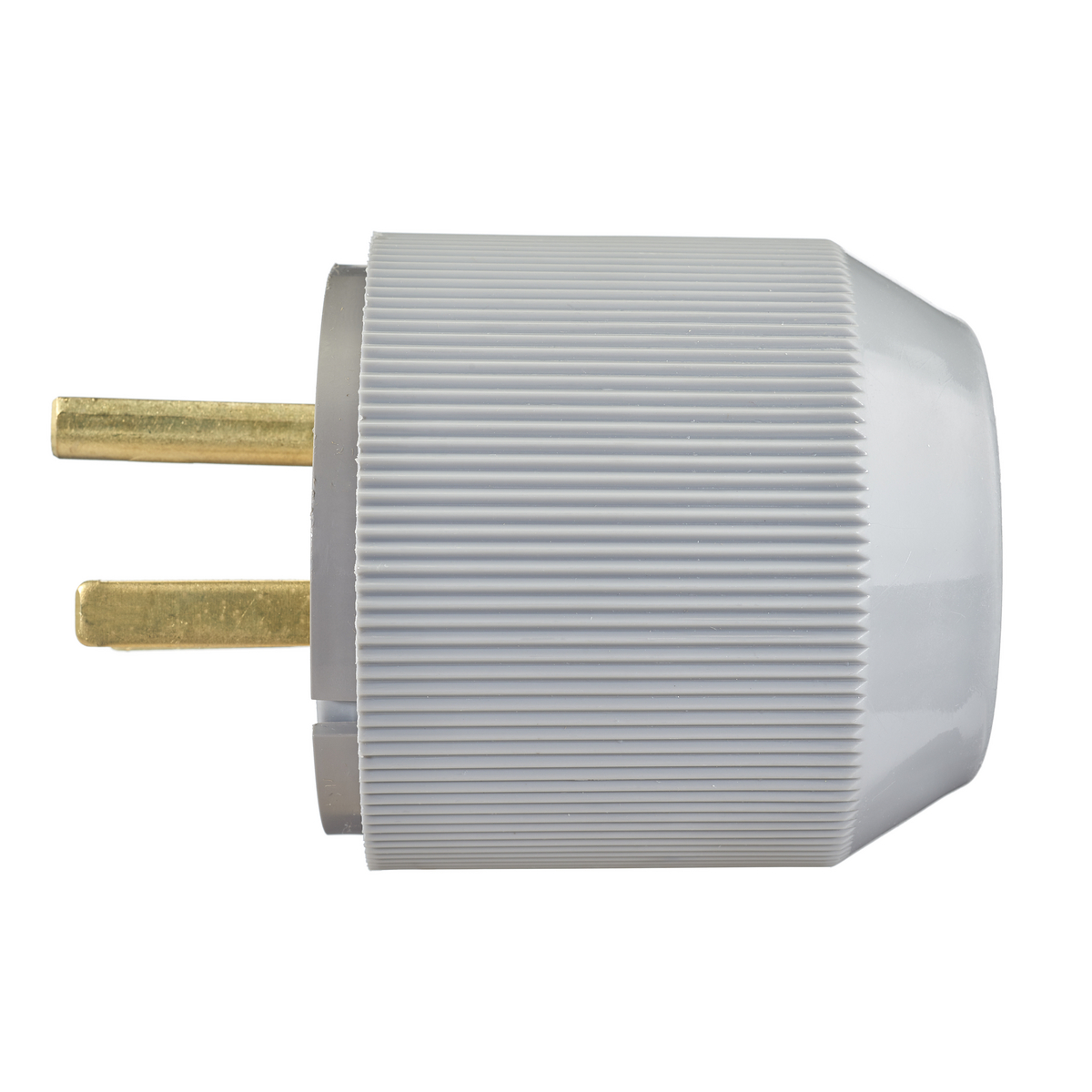

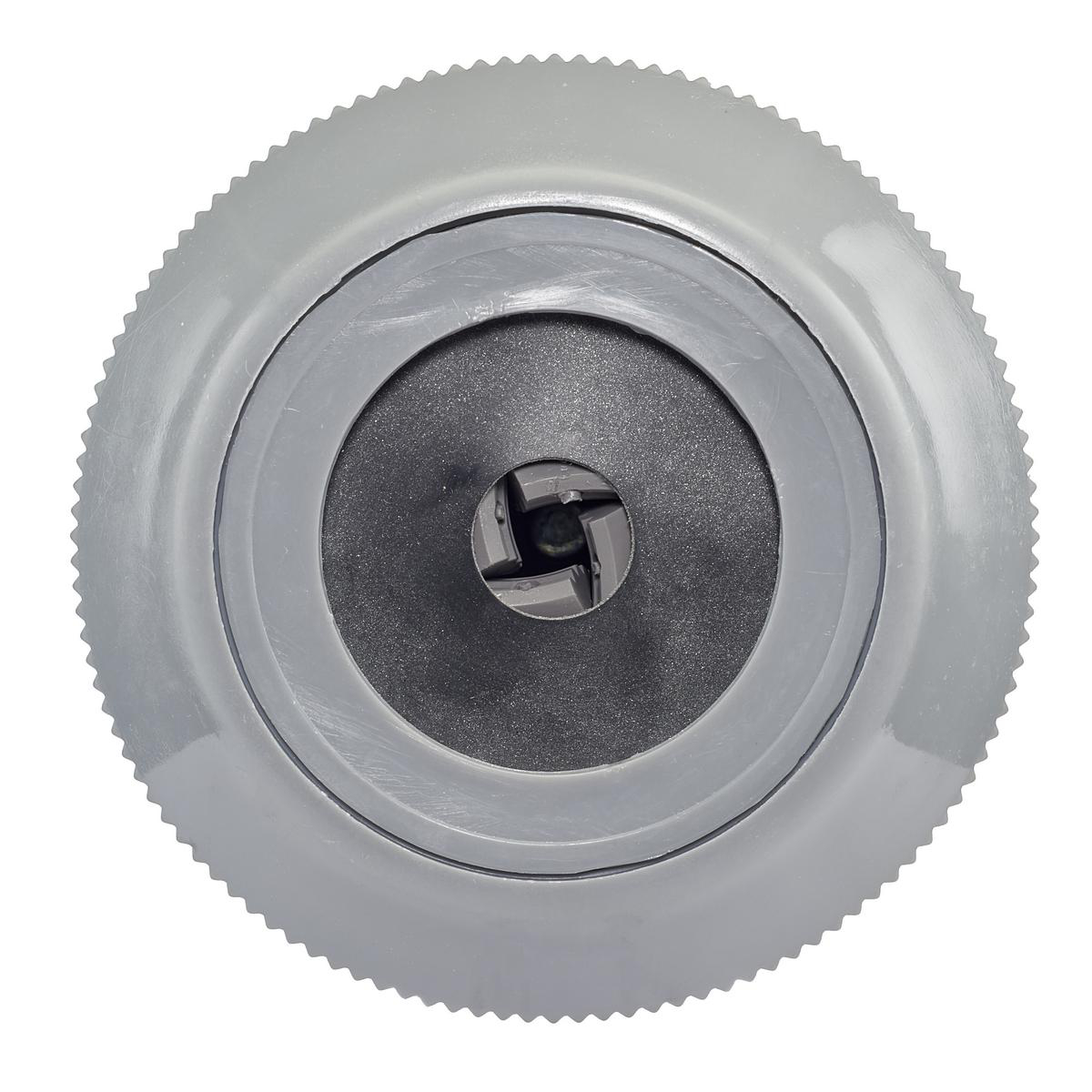

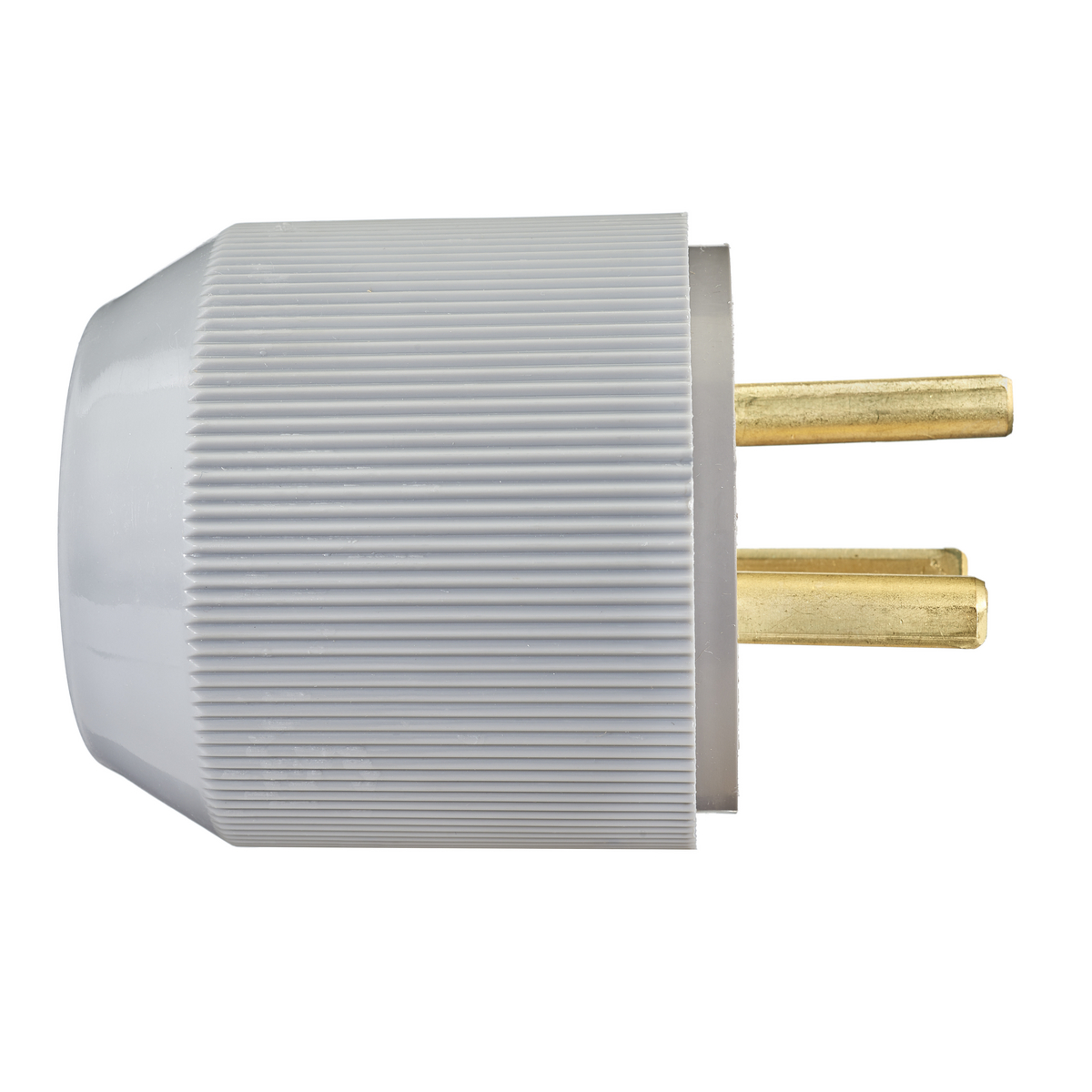

PLUG, 30A 125V, 5-30P

Manufacturer: Bryant Wiring Device | Catalog # 9530NP | Electrozad South Part # 381885
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Straight, 30A 125V, 2-Pole 3-Wire Grounding, 5-30P, Gray, Single Pack

Technical Information

Amperage
30 A
Applications
Heavy Duty
Cord Type
All Portable
Current
30 A
Material
Composite
NEMA
5-30P
Number of Phases
1
Number of Poles
2,2
Number of Wires
3,3
Size
Standard Sized
Style
Extra Heavy Duty
TC Connection
Pressure Terminal Screws
Type
Standard
Voltage
125 V
Wattage
3750 W
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786731981
Color
Gray
GTIN
00781786731981
Product Series
Industrial
Product UPC
78178673198
Weight
0.5 lb

Dimensions

Height
3.200 in
Length
6.300 in
Width
4.300 in

Certifications & Compliance

Country of Origin
Mexico
Overview
  • 2-Pole 3-Wire Grounding
  • Straight
  • Industrial/Commercial Grade
  • Heavy Duty
  • 30A 125V
