BTCGC1/0SS

Manufacturer: Burndy | Catalog # BTCGC1/0SS | Electrozad South Part # 380284
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing

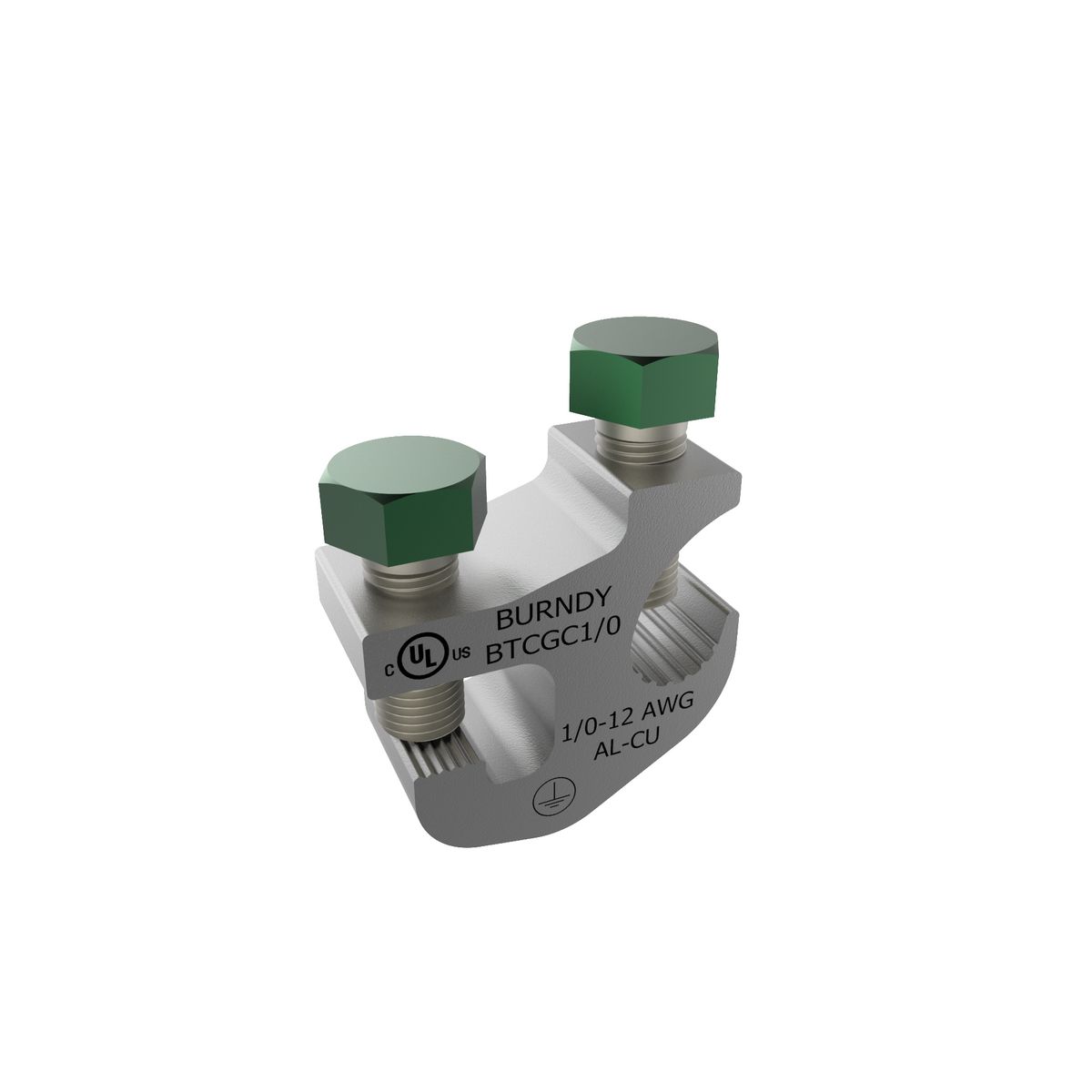

Made of aluminum and tin plated, the BTCGC and BTCGCSS cable tray and flange clamps accommodate aluminum or copper conductor #14 AWG through 250 kcmil. SS version is suitable for outdoor applications. The BTCGC clamp may be used with most types of cable tray with an inside or outside flange design or surfaces with flat flanges.

Technical Information

Material
Aluminum

Manufacturer Information

Brand
Hubbell
Sub Brand
Burndy

General Product Info

12-Digit UPC
621945546486
Finish
Tin Plated,Tin-Plated
GTIN
00621945546486
Product UPC
62194554648

Dimensions

Height
1.55 in
Length
1.6 in
Width
0.75 in

Certifications & Compliance

Country of Origin
India
Overview
  • Set screw bonds clamp to the cable tray while another set screw securely fastens the grounding conductor to the clamp providing vibration resistance and outstanding pull-out values
  • Quick and easy installation
  • N/A
  • cULus 2703 Listed for solar PV applications in US and Canada
  • Tin plated aluminum for durable, long lasting corrosion resistance
  • cULus 467 Listed for Grounding and Bonding in US and Canada
  • no drilling or special tools required
  • Grounding green hardware as required in Section 8.4 of UL2703
  • Accommodates most popular styles of cable tray with inside or outside flange
