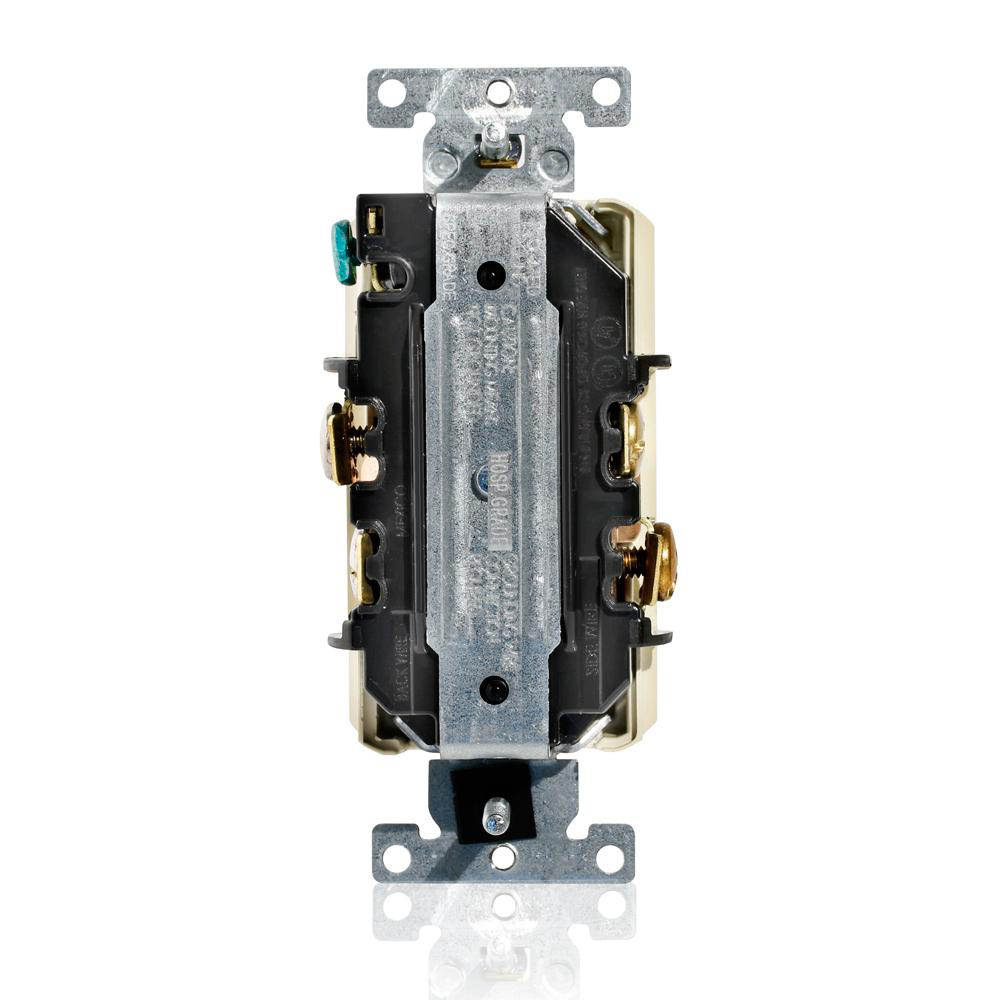

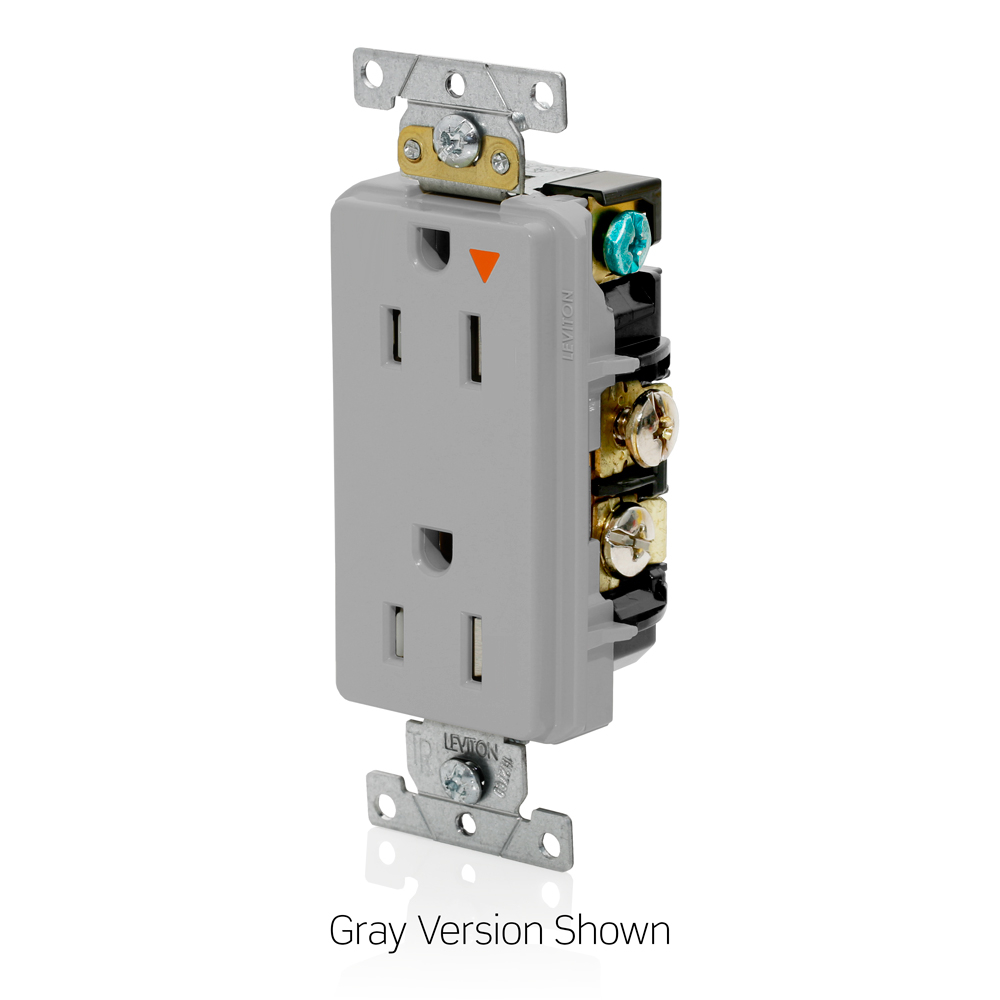

Tamper-Resistant Isolated Ground Decora Plus Receptacle, 15 Amp, 125 Volt

Manufacturer: Leviton Manufacturing | Catalog # T1626-IGW | Electrozad South Part # 379969
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet Technical Drawing
Decora Plus Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
15 A
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Number of Poles
2,2
Number of Wires
3,3
Operating Temperature
-40 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Receptacle
Wire Type
Stranded Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477675373
Color
White,White
GTIN
00078477675373

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
