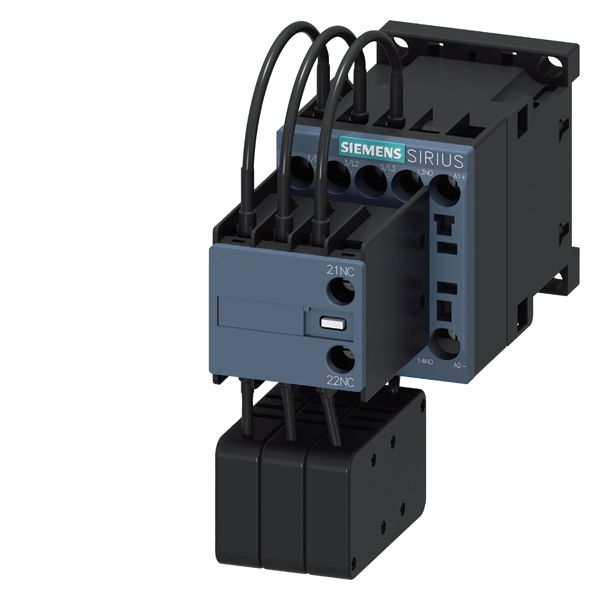

Capacitor contactor, AC-6b 12.5 kVAr, / 400 V 1 NO + 1 NC, 24 V DC 3-pole, Size S00 screw terminal capacitor contactors SIRIUS 3RT26 for switching capacitive loads, e.g. capacitor banks or converters. The 3RT26 capacitor contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer conventional drives for AC and DC operation, as well as solid-state operating mechanisms with AC/DC operation. They offer convincing performance and high contact reliability despite their compact design. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT26 capacitor contactors are climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA). They are available in various sizes and in a wide performance range with AC and DC operation with screw terminals. The comprehensive range of accessories is standardized for all sizes. The 3RT26 capacitor contactors replace the 3RT16 capacitor contactors. Simple, efficient and always up to date - SIRIUS modular system.
