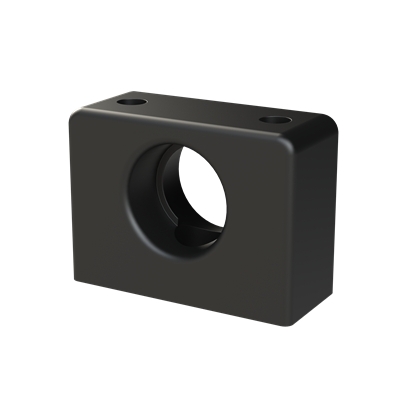

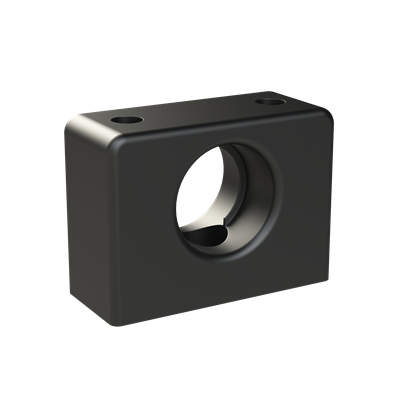

Product image for Support system GPS polyamide-6 fits 23NW conduit black
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Support system GPS polyamide-6 fits 23NW conduit black

Manufacturer: ABB | Thomas & Betts | Catalog # BGPS-23 | Electrozad South Part # 377560
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
GPS System support made of high-grade specially formulated polyamide-6. One-piece construction, stackable. Excellent impact resistance. Heavy design, high retention forces. Applicable with standard metal C-rails. Easy pre-installation by conduit snap-in. Clasp for easy pre-mounting and final assembly. Very good chemical properties. Free from halogens and cadmium. Fits fine (T) conduit profile. For cable protection systems in a wide range of applications.

Technical Information

Applications
Railway Vehicle Construction, Heavy Machine Building Industry and Other Applications with Increased Mechanical Requirements
Cable Size
NW23
Material
Polyamide 6
Number of Holes
1
Type
1-Hole, Flexible, Impact-Resistant

Manufacturer Information

Brand
Thomas & Betts
Sub Brand
PMA®

General Product Info

12-Digit UPC
786209946287
Box Quantity
90
Color
Black,Black
Finish
Black
GTIN
00786209946287
Used With
One-Piece NW-17 GPS Conduit System

Dimensions

Depth
30 mm
Diameter
25 mm
Height
45 mm
Thickness
30 mm
Width
70 mm
