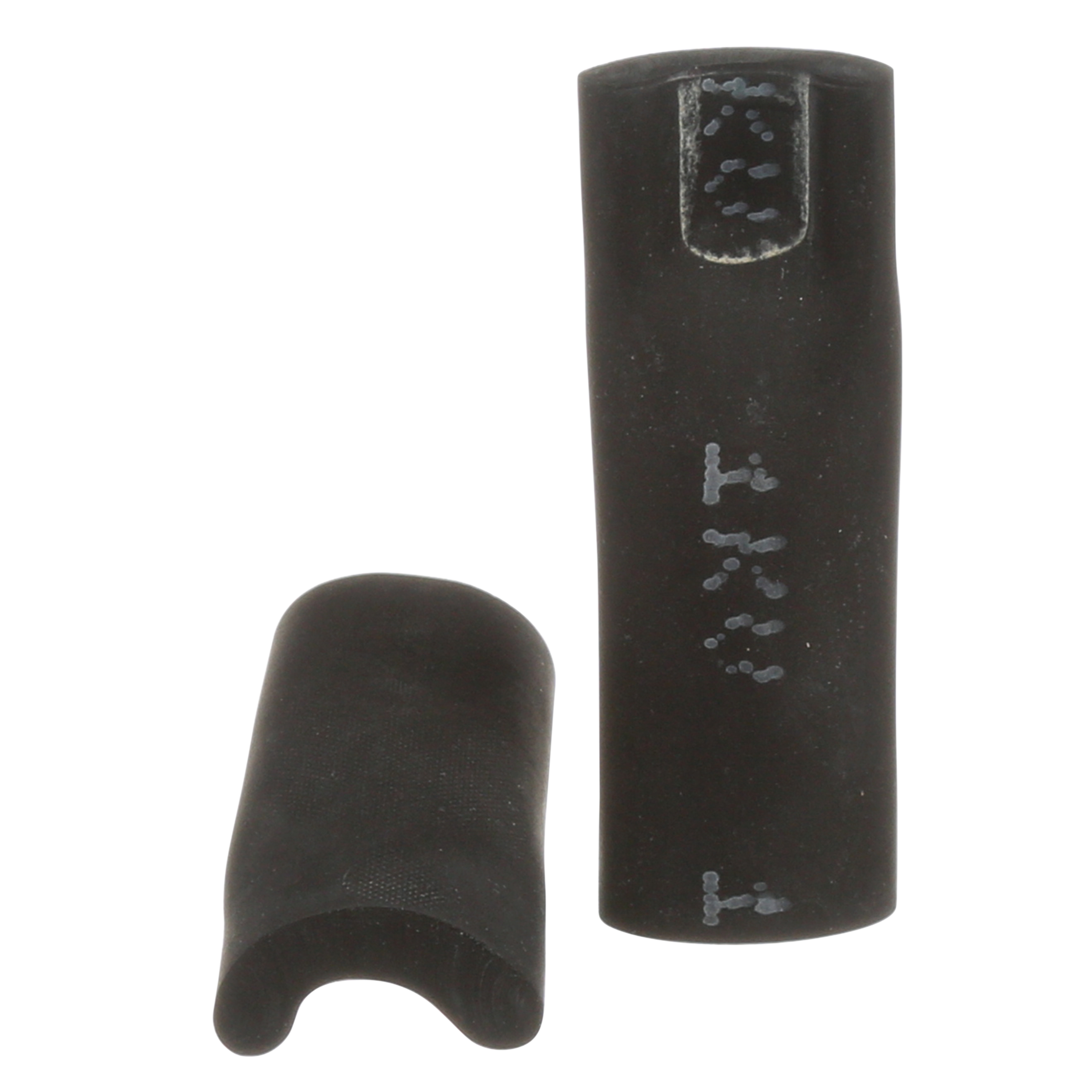

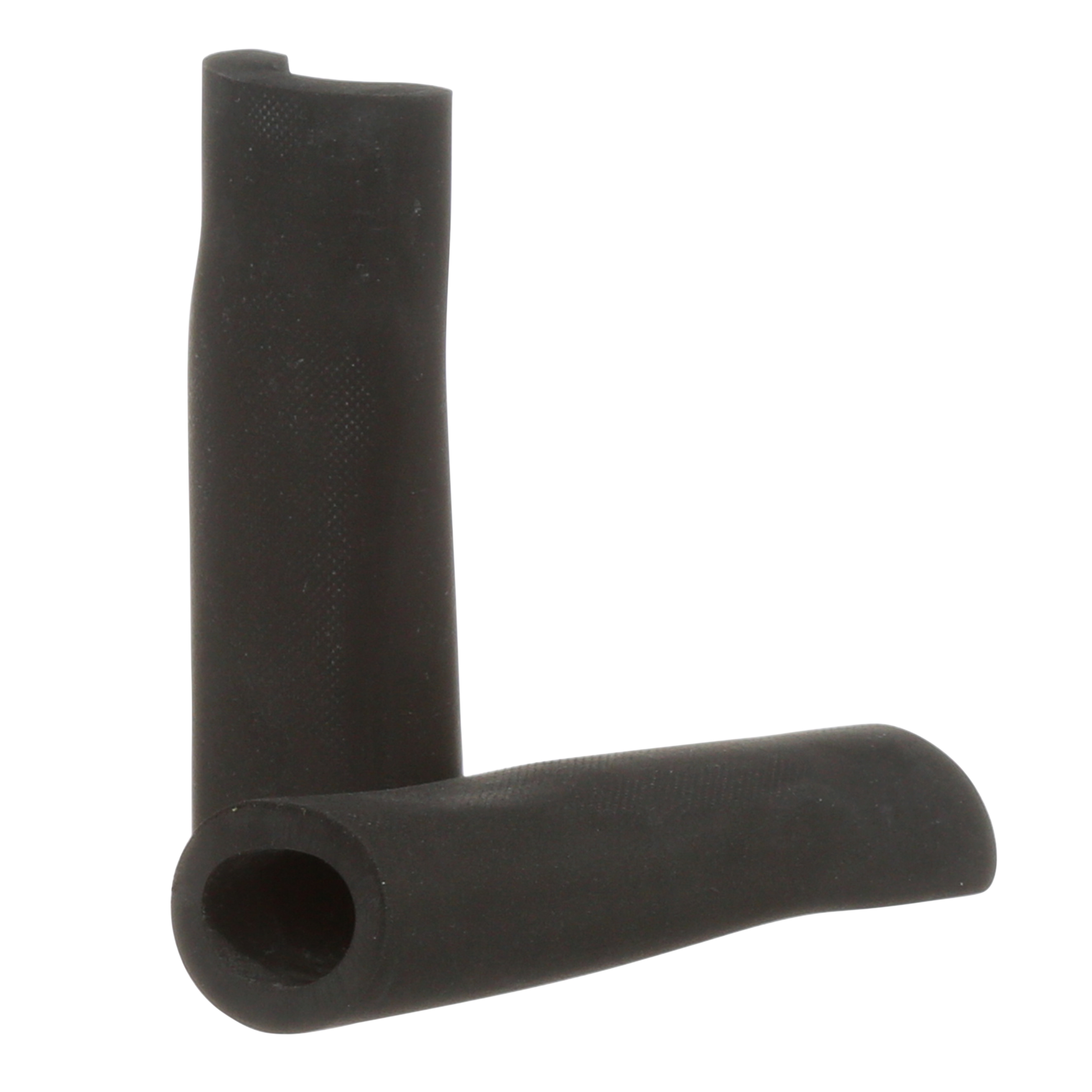

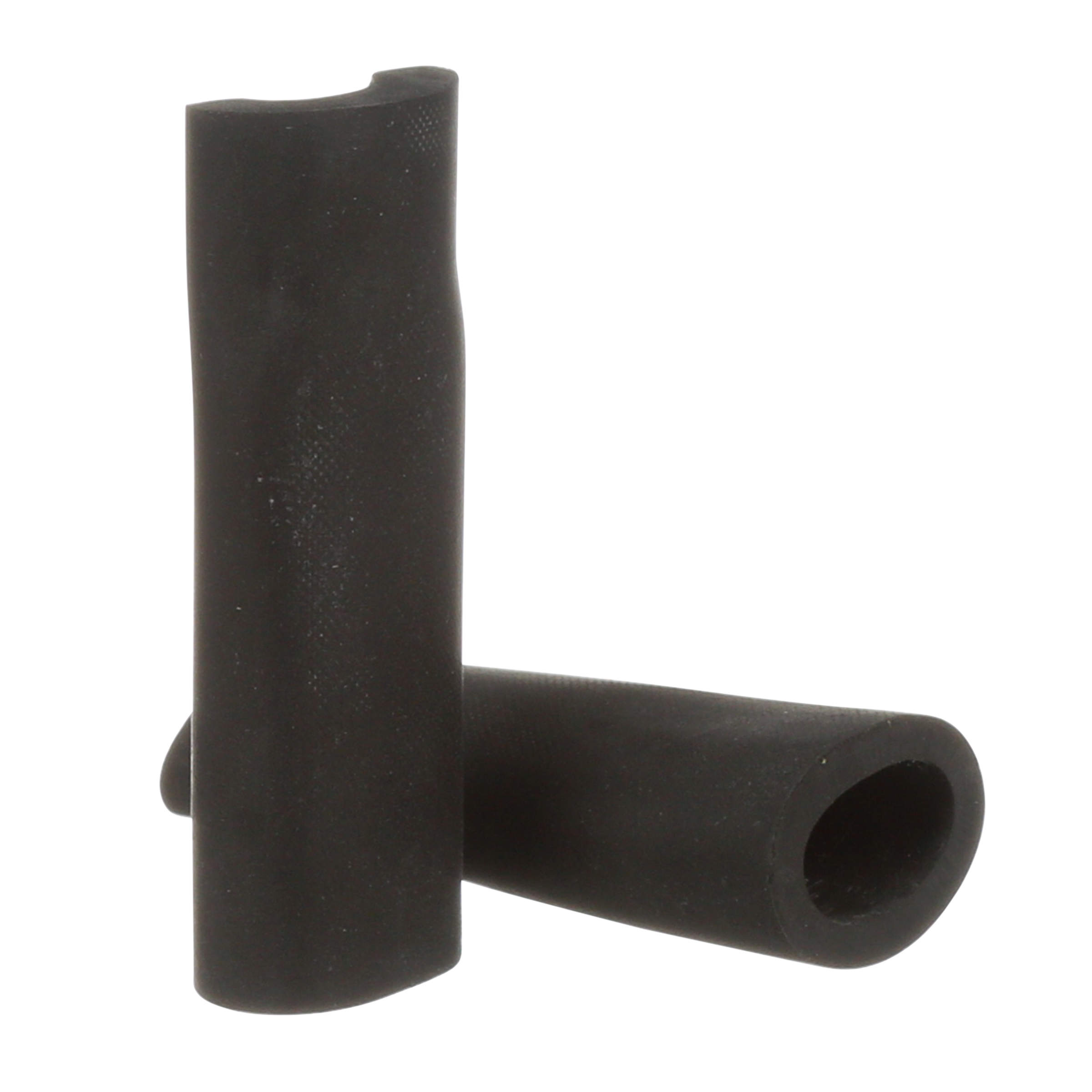

3M™ 5301 Motor Lead Pigtail Splice Kit

Manufacturer: 3M | Catalog # 5301KIT | Electrozad South Part # 37663
$203.62 /ea
kt
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 2-1/0 AWG (35-50 sq mm), motor lead 4-1/0 AWG (25-50 sq mm).

Technical Information

Conductor Size
10-4 AWG Feeder Cable, 12-4 AWG Motor Lead
Material
Copper Lug, EPDM Rubber Insulation
Temperature Rating
90 - 130 degrees C
Type
Motor Lead

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007122630
Color
Black
GTIN
00054007122630
Product UPC
05400712263
Used With
1-Hole Copper Compression Lugs

Dimensions

Length
4 in
