EXTERNAL RESET MECHANISM, OEM KIT, WITH RESET BUTTON AND ONE ROD, NEMA 1 AND 12

Manufacturer: Schneider | Square D | Catalog # 9066RA1 | Electrozad South Part # 376400
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual

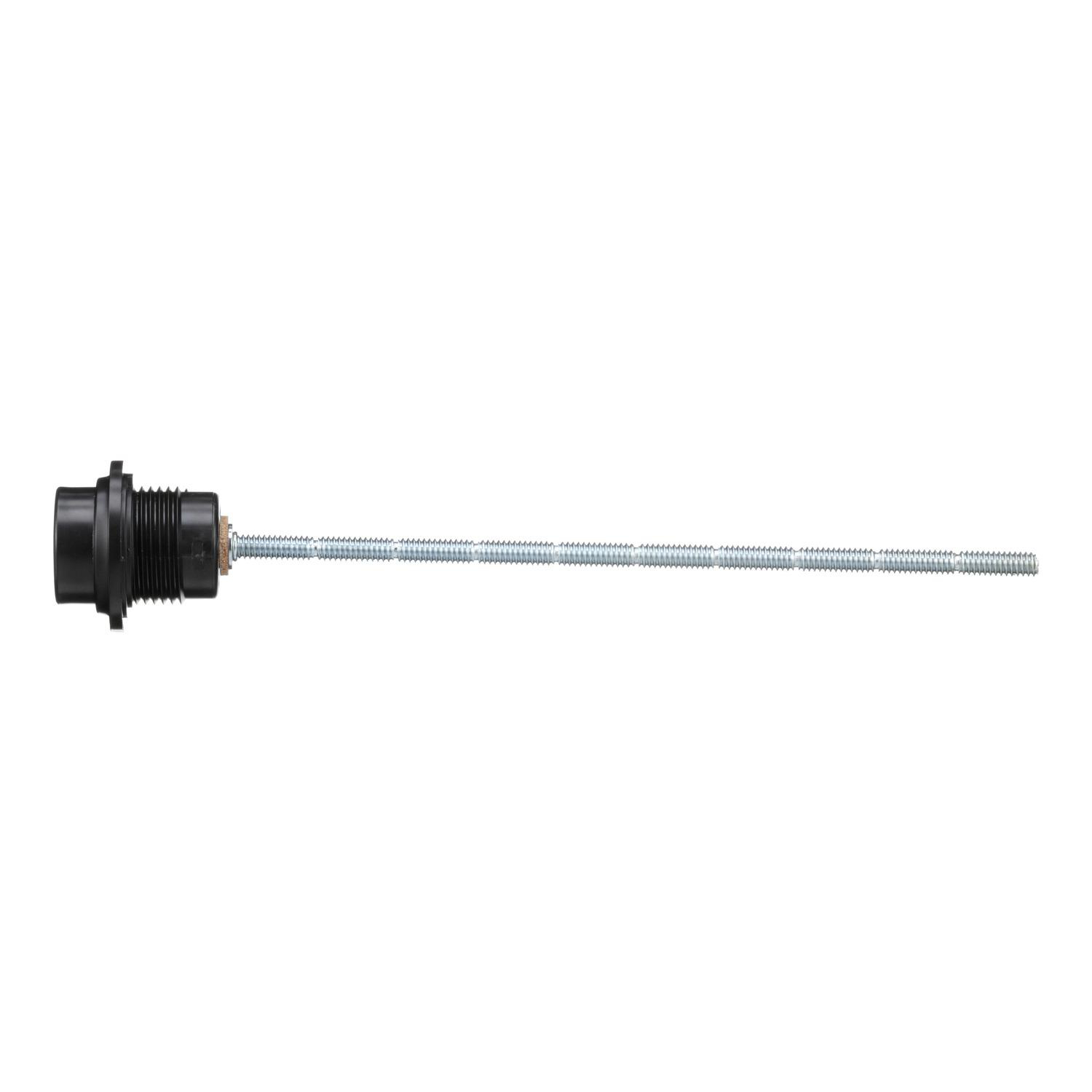

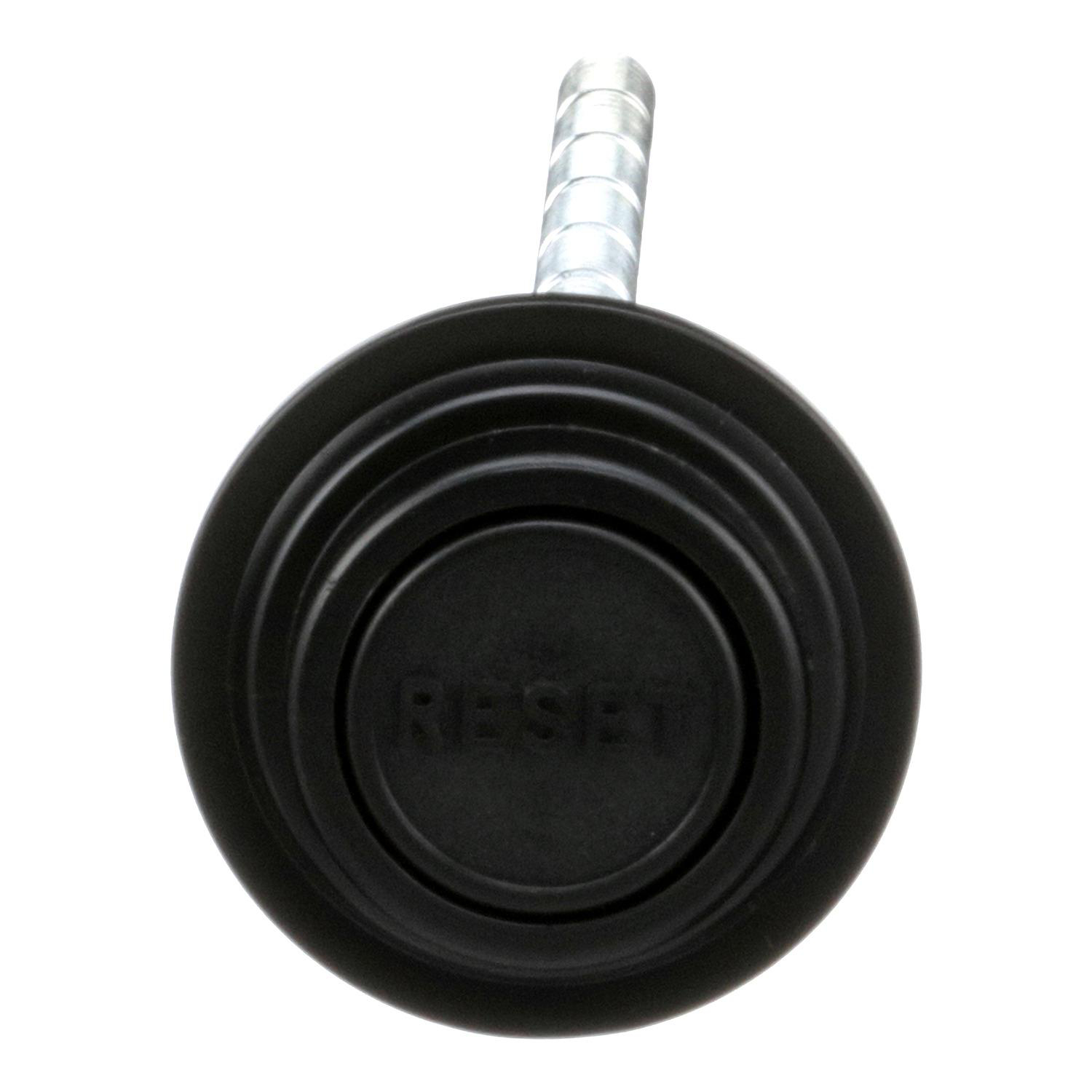

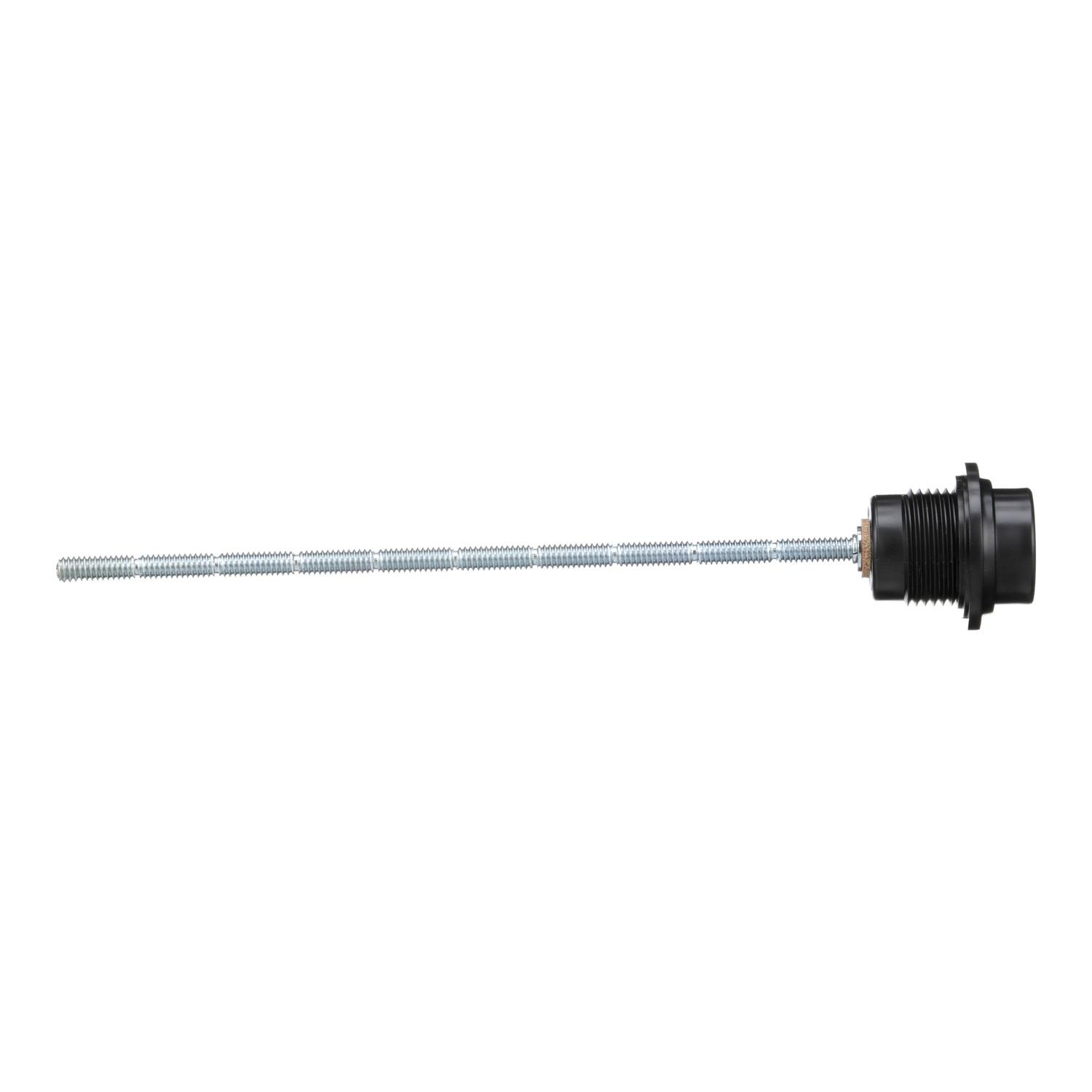

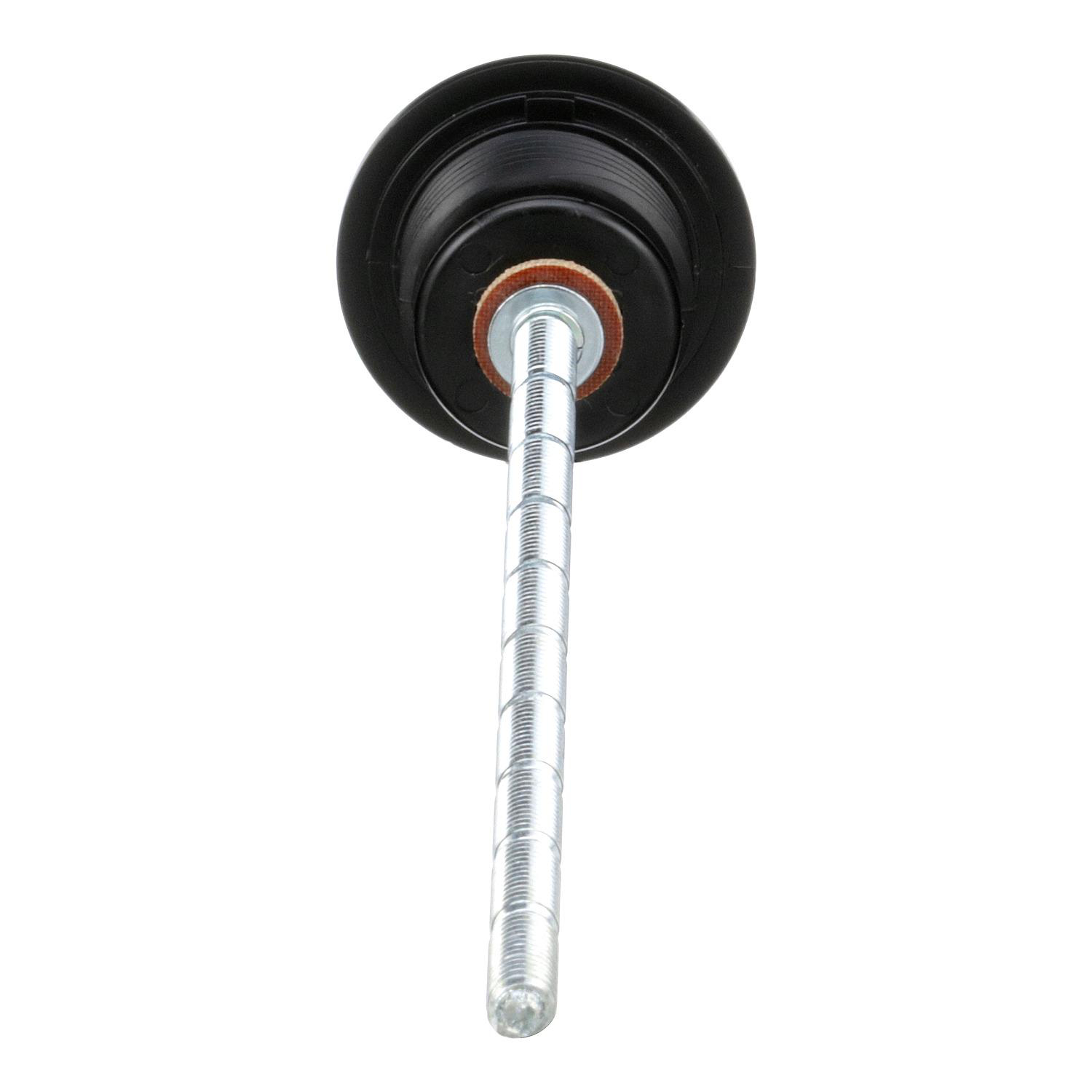

External reset mechanism allows the reset of the Type S overload relay without open the enclosure. The grey push button operator is mounted into the cover of the NEMA 1 or 12 enclosure. The push button is marked RESET. The kit contains one threaded reset rod that is grooved at intervals of 0.75 inches. The grooves allows the 9 inch long rod to be cut to the approximate length required without damaging the threads. Final adjustment is easily made after installation by rotating a plunger and tightening the lock not.

Technical Information

Applications
reset mechanism kit
Enclosure
NEMA 1/12 RATED ENCLOSURES
Reset Type
MANUAL
Type
STARTER EXTERNAL RESET MECHANISM KIT

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901864332
Environmental Conditions
NEMA 1, 12
GTIN
00785901864332

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Country of Origin
Mexico
