60 Amp, 120/208 Volt, Flush Mount Receptacle, Straight Blade, Industrial Grade

Manufacturer: Leviton Manufacturing | Catalog # 8360 | Electrozad South Part # 376185
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet

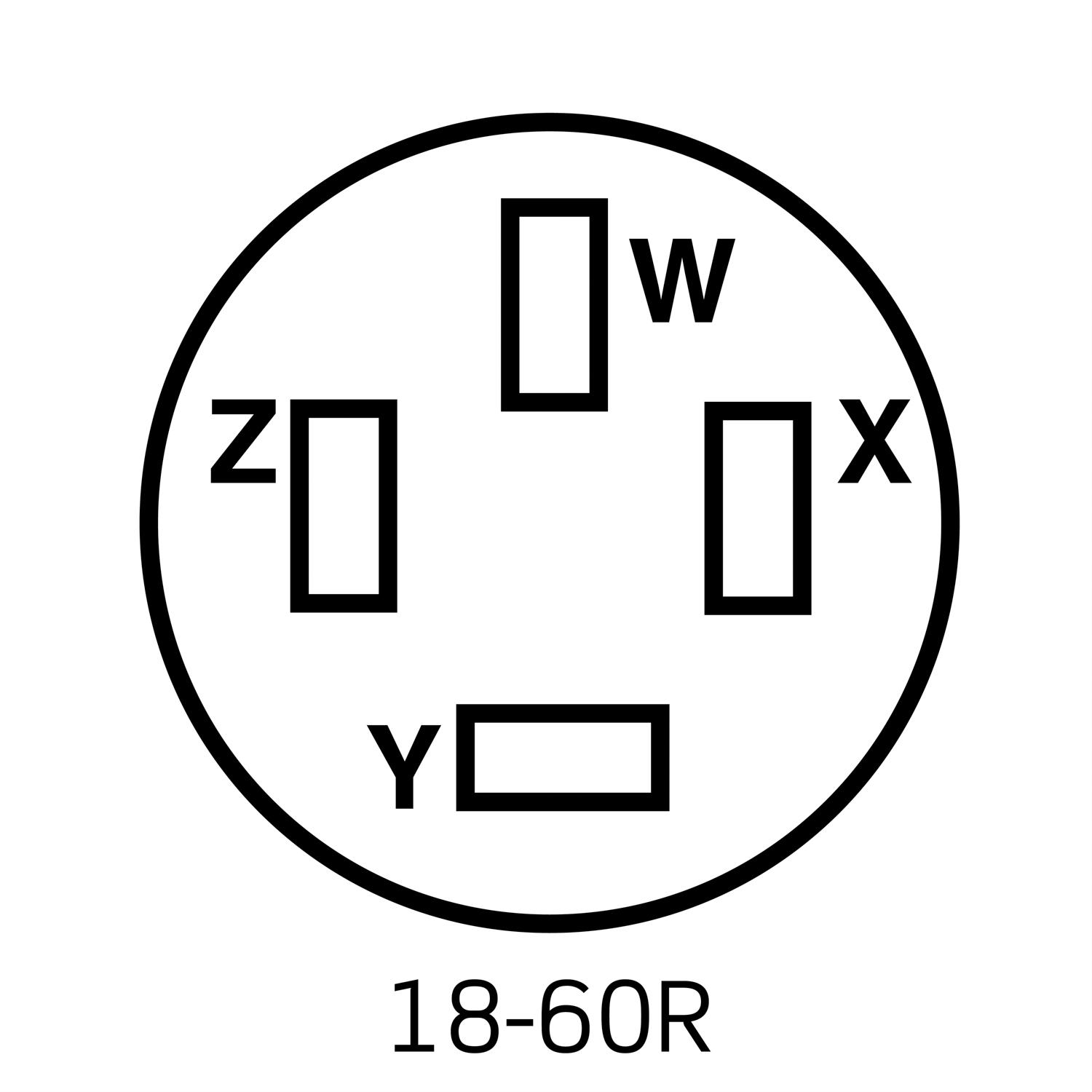

60 Amp, 120/208 Volt, NEMA 18-60R, 4P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Non-Grounding, 3-Phase Y, Side Wired, Steel Strap, - Black

Technical Information

Amperage
60 A
Applications
Commercial
Body Material
Nylon
Connection Type
Side Wired
Device Type
Straight Blade Receptacle
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Grounding
Non-Grounding
Horsepower
7-1/2 hp
Material
Thermoplastic
Mounting Type
Box
NEMA
18-60R
Number of Phases
3
Number of Poles
4
Number of Wires
4
Operating Temperature
-40 degrees C
Size
3.75 H x 2.75 W x 2.10 D IN
Standard
ANSI C-73
TC Connection
Side Wired
Temperature Rating
-40 To 60 degrees C
Temperature Rise
150 %
Torque
25 lb-in
Type
Power Receptacle
Voltage
120 V
Wire Count
4
Wire Size
14-6 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477843291
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477843291

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
