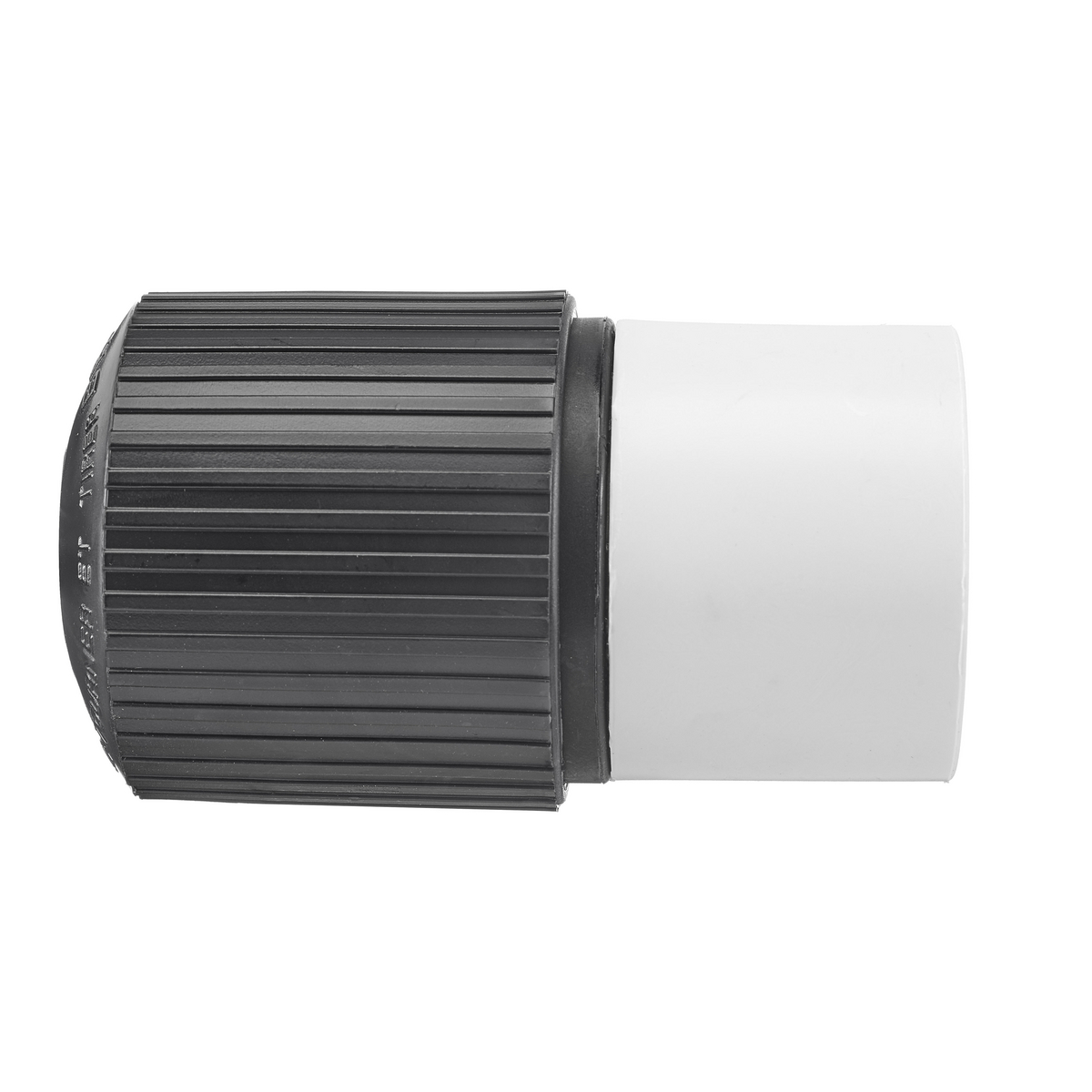

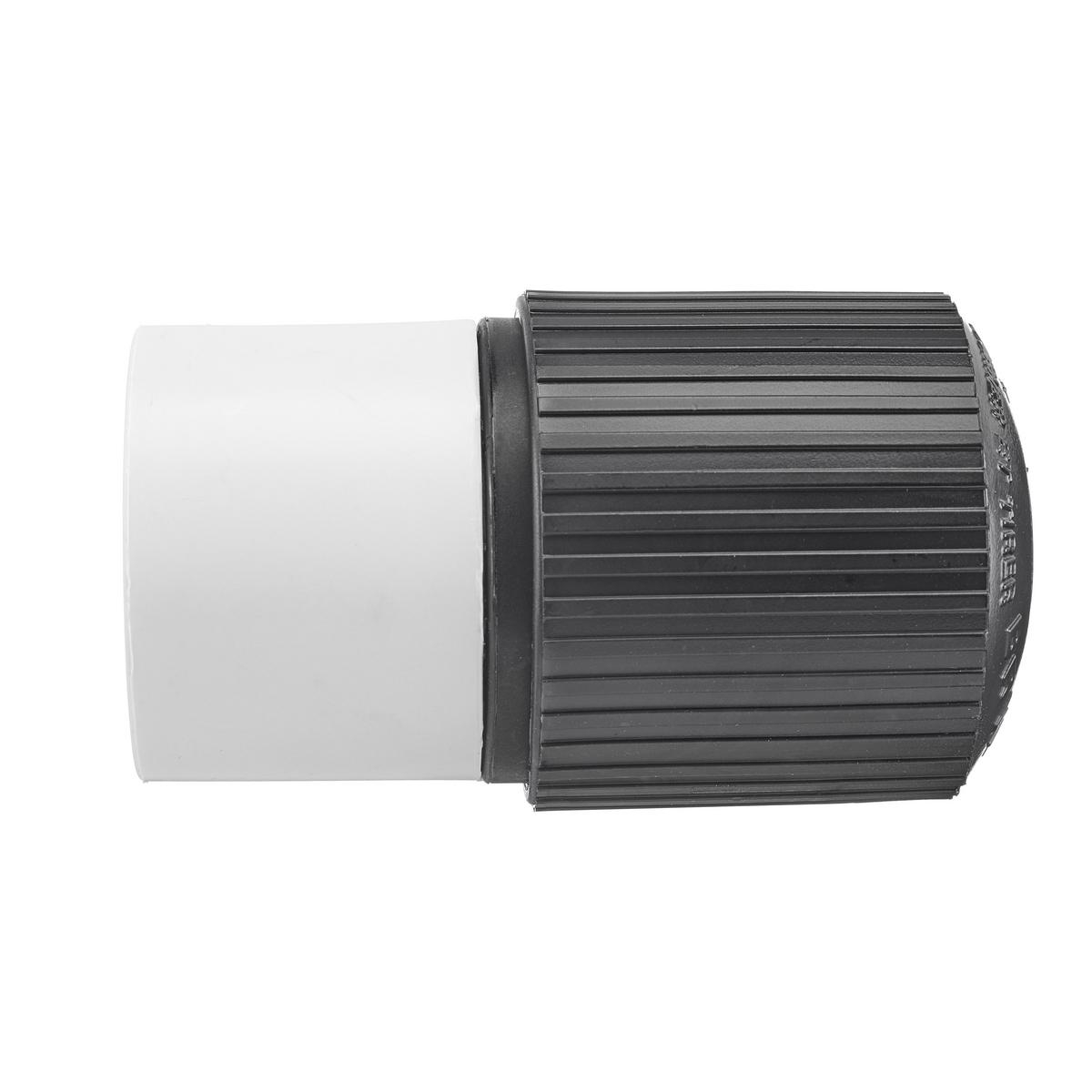

LKG CONN, 20A 480V, L8-20R, B/W

Manufacturer: Bryant Wiring Device | Catalog # 70820NC | Electrozad South Part # 375638
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Locking Devices, Industrial, Female Nylon Connector Body, 20A 480V AC, 2-Pole 3-Wire Grounding, L8-20R, Screw Terminal, Black and White

Technical Information

Amperage
20 A
Applications
Heavy Duty Industrial
Current
20 A
Material
Composite
NEMA
L8-20R
Number of Conductors
3-Wire Grounding
Number of Poles
2,2
Number of Wires
3
Size
Standard Sized Product
Style
Internal Cord Clamp
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Tech-Spec Triple Gripper
Voltage
480 V
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786690899
Color
Black,White
GTIN
00781786690899
Product UPC
78178669089

Dimensions

Height
3.90 in
Length
2.13 in
Width
1.900 in

Certifications & Compliance

Country of Origin
Puerto Rico
Overview
  • Impact/chemical resistant, toughened nylon construction

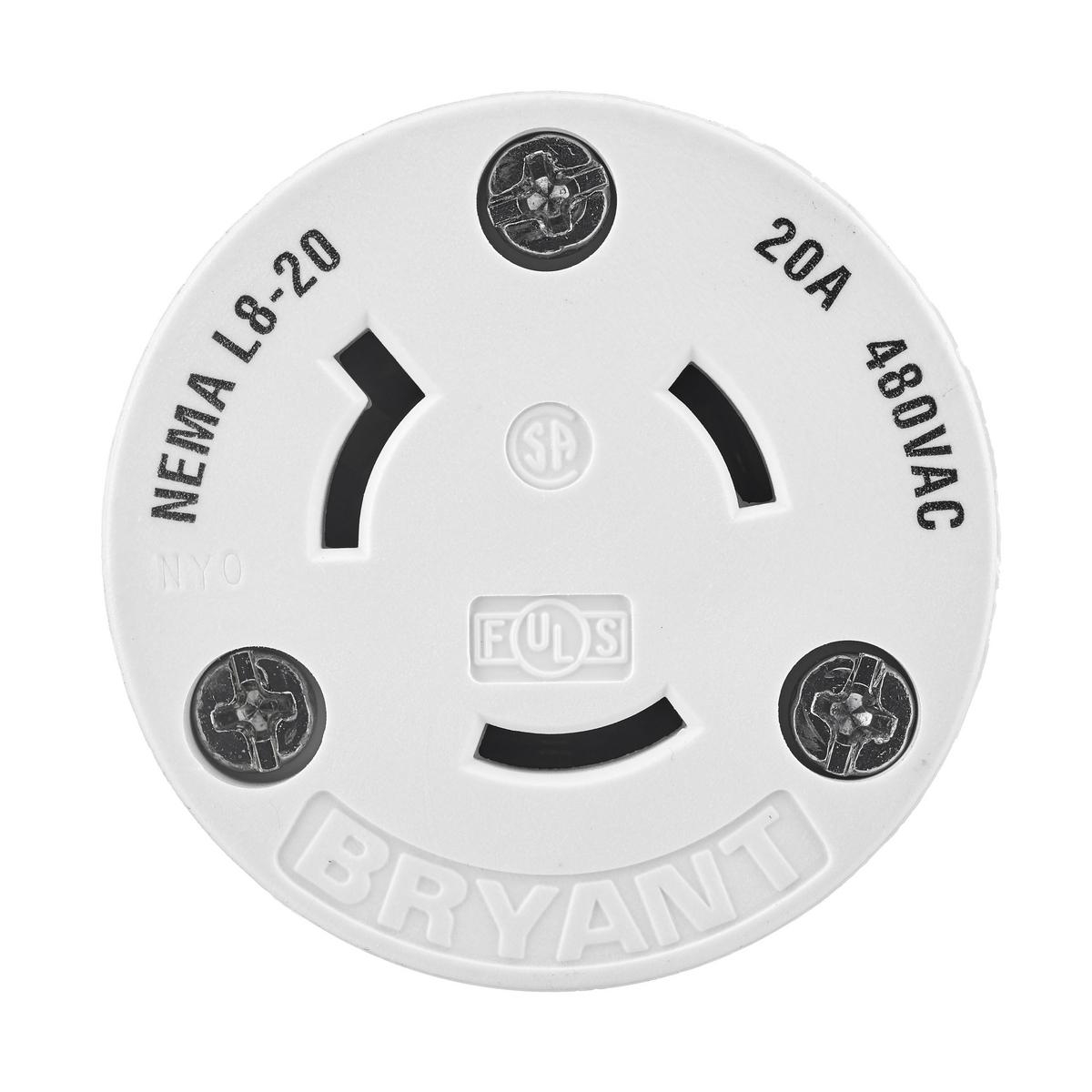

  • Amperage, voltage and NEMA configuration imprinted on face for easy identification
  • Face and body feature alignment keys for easy assembly
  • Internal self-centering Triple Gripper® cord grip with radius teeth design provides secure cord retention
