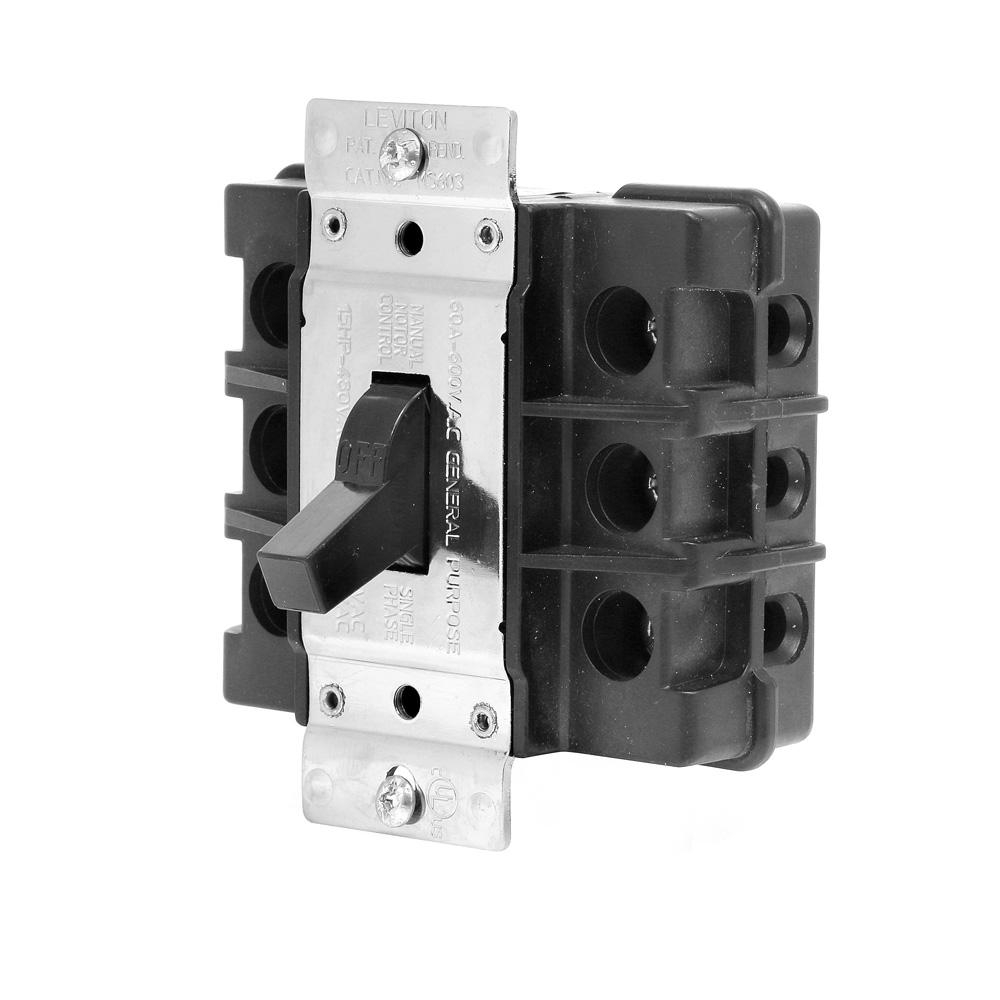

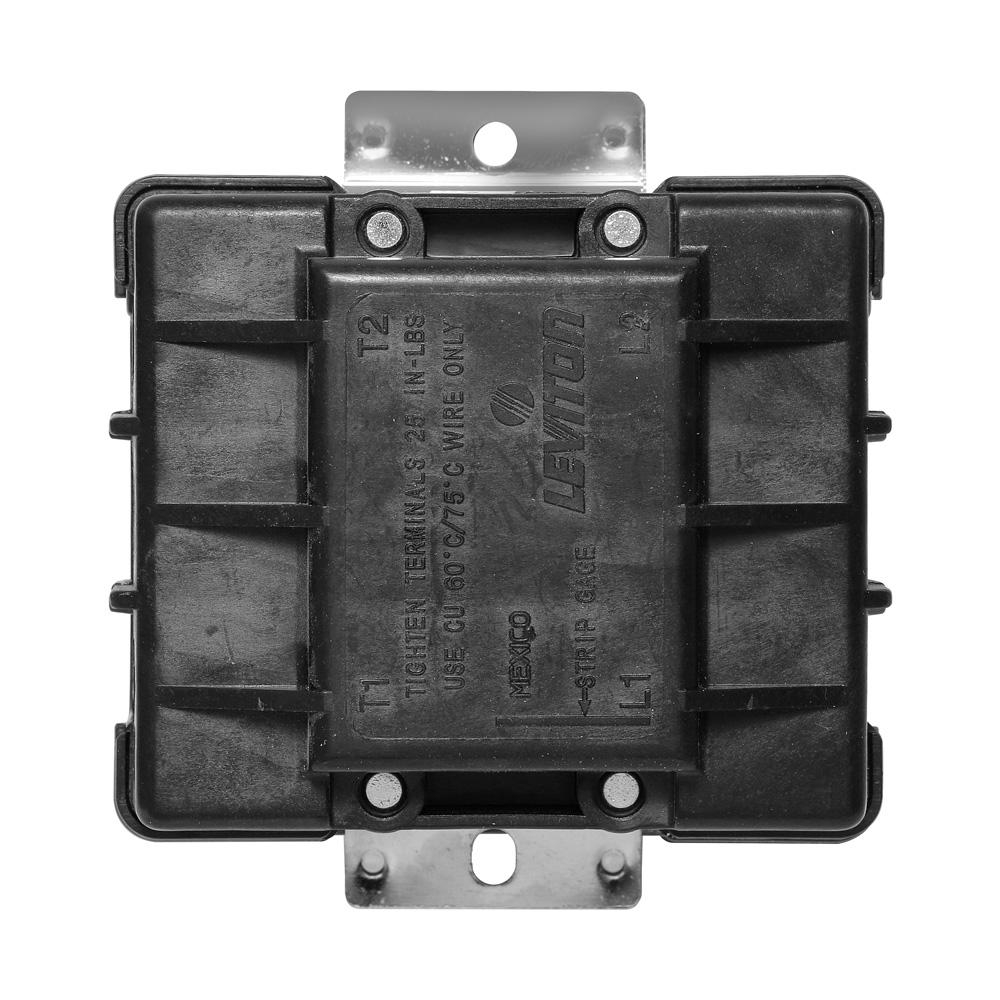

Switch starter 3-pole standard toggle 3-phase 60A 600V

Manufacturer: Leviton Manufacturing | Catalog # MS603-FW | Electrozad South Part # 374013

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Industrial grade AC motor starter switch. Two-pole, standard toggle. Non-grounding. Front wired. All molded parts are thermoplastic to resist impact, chemicals, temperature, tracking and arcing. Positive-contact design and cam-driven mechanism enhances fast-make/slow-break. Silver-alloy contacts for maximum conductivity and service life. Insulating barrier between terminals provide isolation from each phase. Nickel-plated brass mounting strap for superior corrosion resistance. Large toggle provides positive actuation, even with gloved hand.

Technical Information

Action
TPST
Actuator
Toggle
Amperage
60 A
Applications
For Commercial use
Base Material
Thermoplastic Polyester
Body Material
Rynite
Coil Voltage
600 VAC
Connection Type
Front Wired
Contact Configuration
TPST
Contact Material
Silver-Cadmium Oxide
Device Type
Toggle Switch
Dielectric
2200 V
Enclosure
WD-6
Face Material
Polyester
Flamability Class
Rated V-0 Per UL 94
Grounding
Non-Grounding
Horsepower
10 hp
NEMA
WD-1
Number of Poles
3
Operating Temperature
-40 to 65 degrees C
Size
3.75 H x 3.43 W x 1.70 D IN
Standard
ANSI C-73
TC Connection
Front Wired
Temperature Rating
-40 to 65 degrees C
Temperature Rise
50 degrees C
Termination Type
Front
Toggle Material
Thermoplastic Polyester
Torque
25 lb-in
Type
Non-Reversing
Voltage
600 V

Manufacturer Information

Brand
Leviton
Sub Brand
Motor Starter Switches

General Product Info

12-Digit UPC
078477093627
Color
Black
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTIN
00078477093627

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
