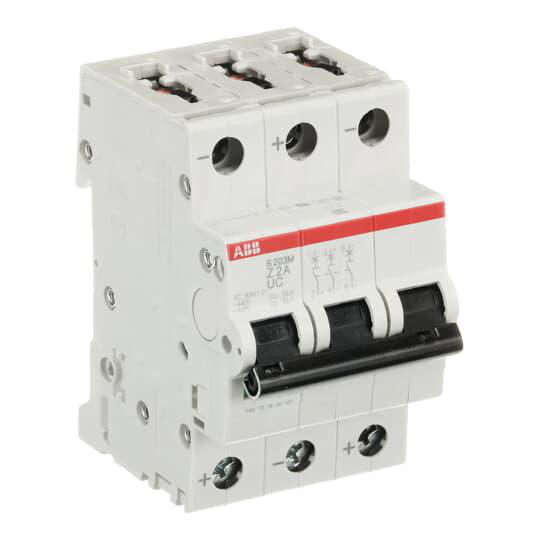

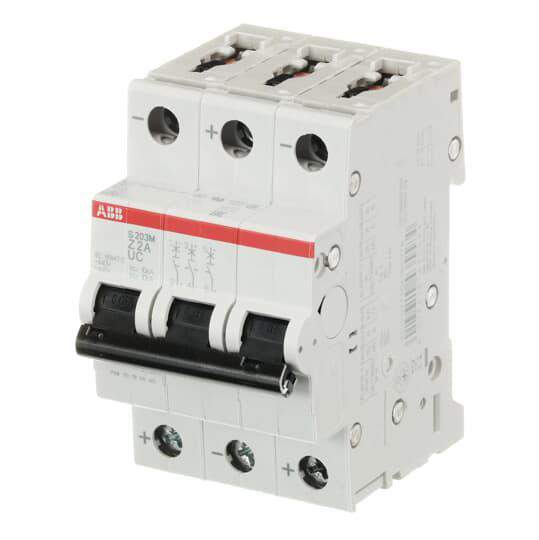

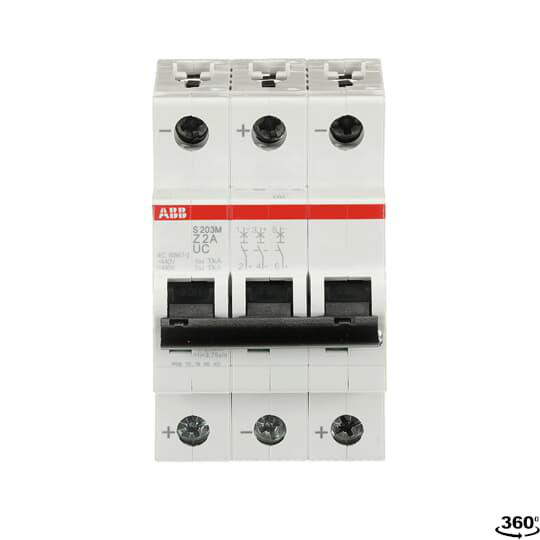

MCB S200MUC 3P Z 2A AC/DC

Manufacturer: ABB Inc | Catalog # S203MUC-Z2 | Electrozad South Part # 373980
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Miniature Circuit Breaker, Supplementary Protector, Rated Current 2 Amps, 3 Pole, Interrupt Rating 10 kA, Thermal Magnetic Trip Curve Z, Voltage up to 277/Y480 VAC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 1077, CSA 22.2 No. 235

Technical Information

Amperage
2 A
Applications
Supplementary Protective Devices. Protection and Control of the Electronic Circuits Against Weak and Long Duration Overloads and Short-Circuits.
Interrupt Rating
10 kA
Number of Poles
3
Operating Temperature
-25 to +55 C
Standard
CSA 22.2 No. 235,EN 60947-2,IEC,UL 1077
Trip Type
Z
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614275188
GTIN
04013614435584

Dimensions

Height
3.4646 in
Length
69 mm
Width
52.5 mm
