3M™ Performance Plus™ Wire Connector B/G+POUCH, Blue/Grey, 14 - 6 AWG, 50/Pouch

Manufacturer: 3M | Catalog # B/G+POUCH | Electrozad South Part # 373679

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

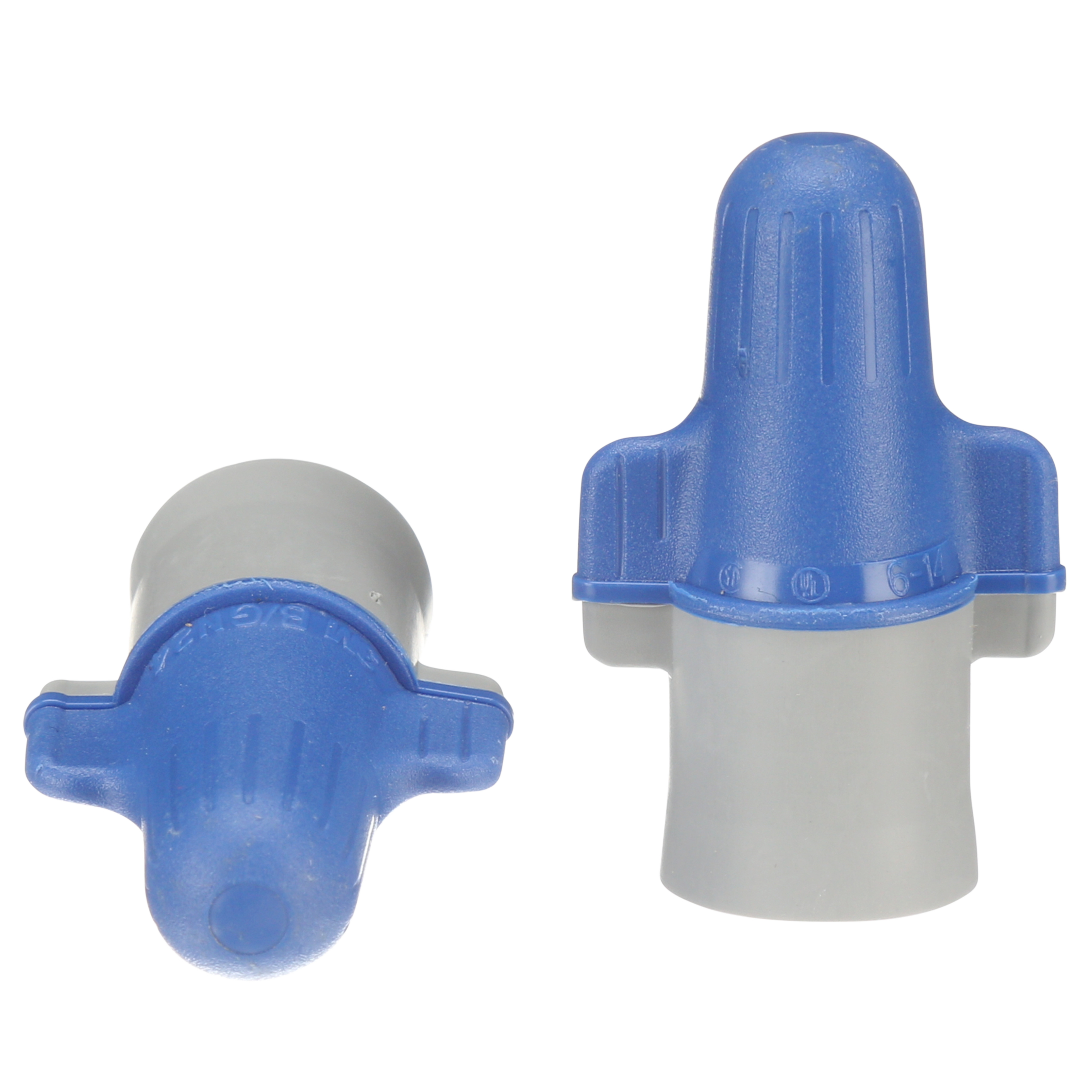

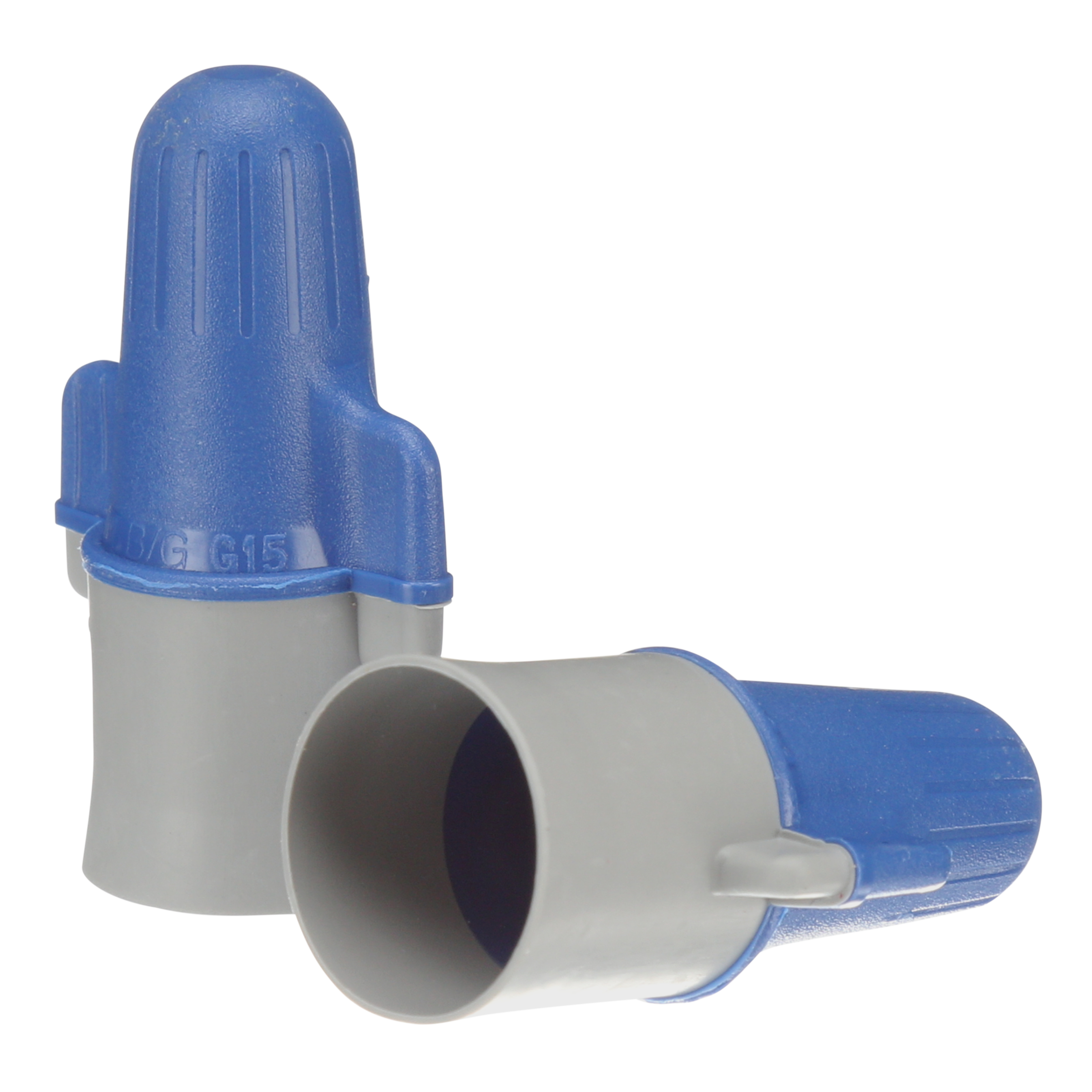

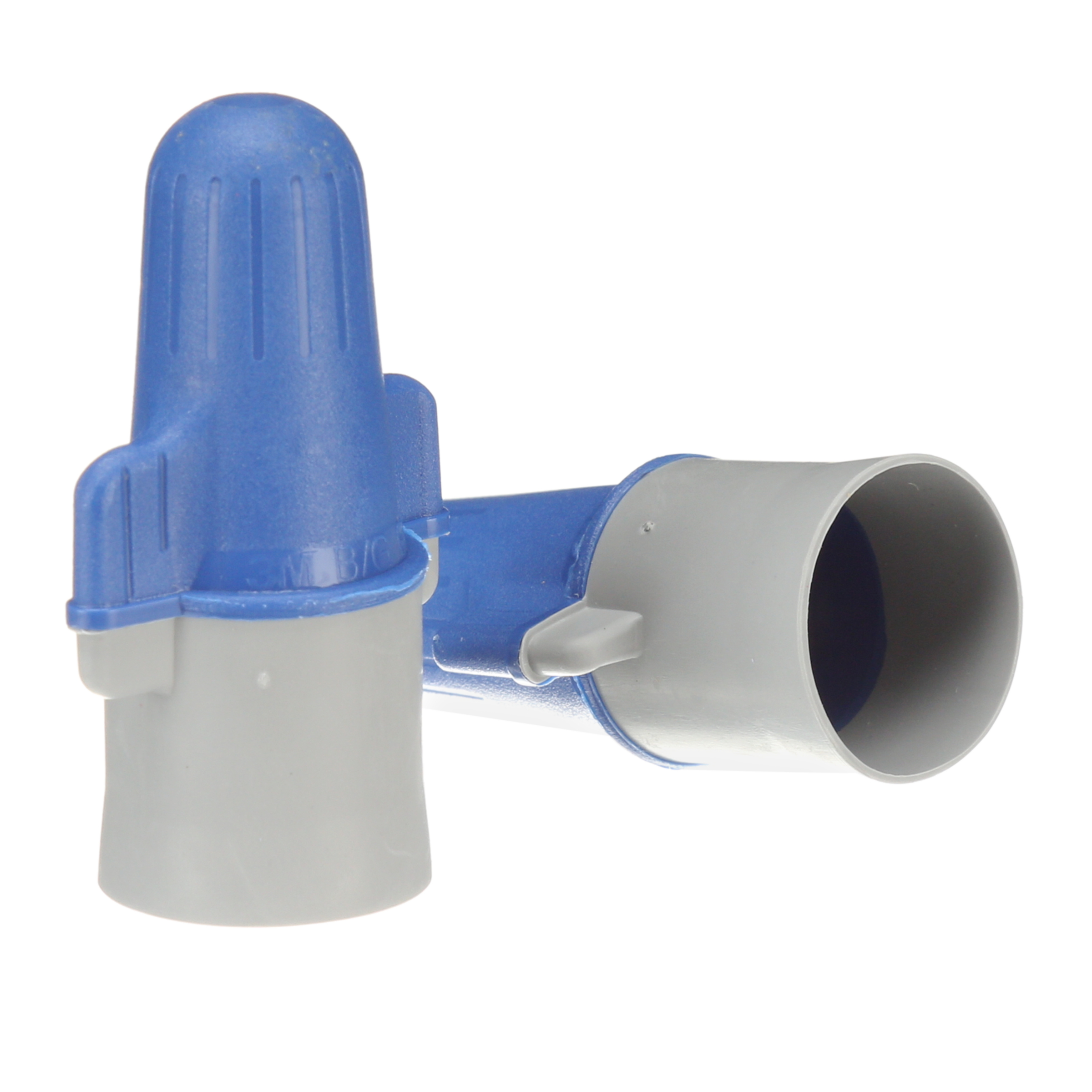

The 3M™ Performance Plus™ Wire Connector electrically connects two or more conductor ends in a pigtail application and insulates the connection. It combines a very small shell with an increased wire range. The spring bites wire quickly with minimal effort, and the small shell fits easily into tight spaces, while its flexible skirt helps protect workers from contact with over-stripped wires.

Technical Information

Conductor Size
14-6 AWG
Connection Type
Twist-On
Contact Material
Spring Steel
Insulation Material
Polypropylene, Thermoplastic Elastomer
Material
Plastic
Max Operating Temperature
221 degrees F
Temperature Rating
105 degrees C
Type
Flame Retardant

Manufacturer Information

Brand
3M
Sub Brand
Performance Plus™

General Product Info

12-Digit UPC
054007431503
Color
Blue/Gray
GTIN
10054007431500

Dimensions

Diameter
1.12 in
Length
1.79 in
