Weather-Resistant Single Receptacle, 20 Amp, 250 Volt

Manufacturer: Leviton Manufacturing | Catalog # W5461-T | Electrozad South Part # 373405
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet Technical Drawing

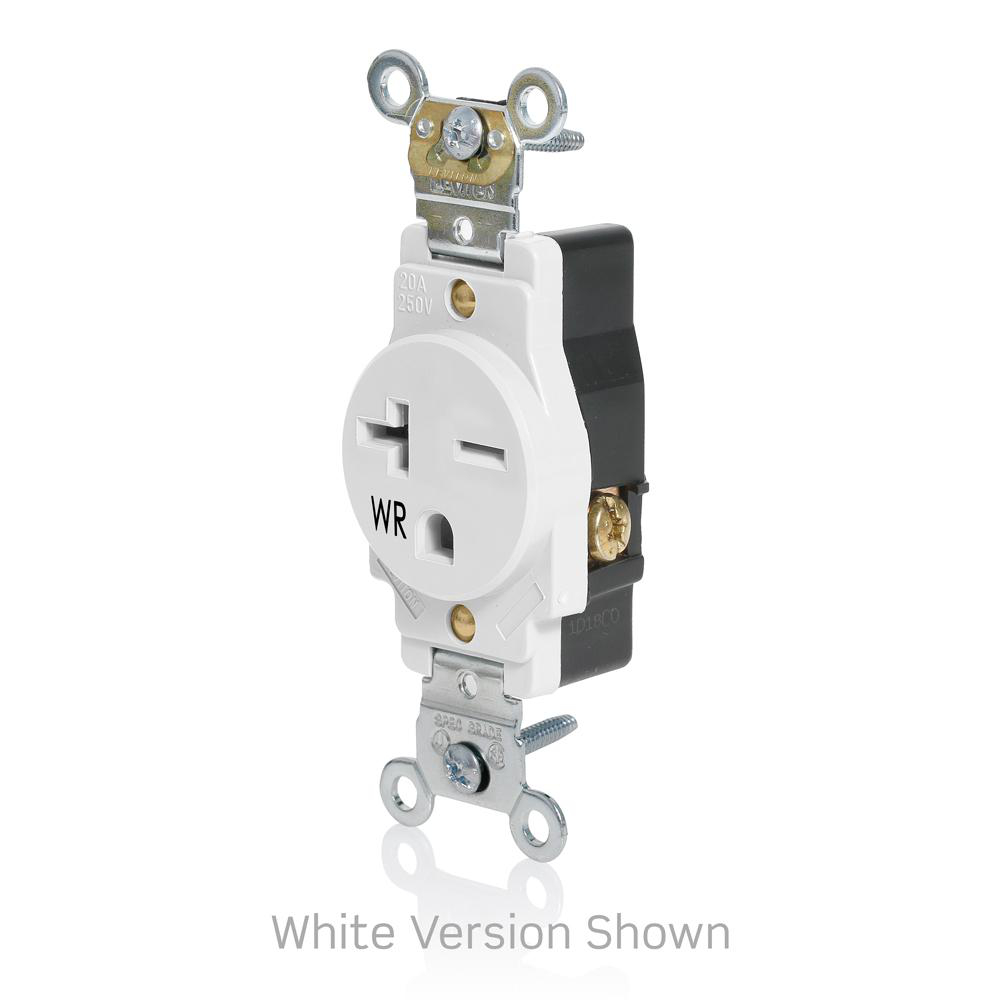

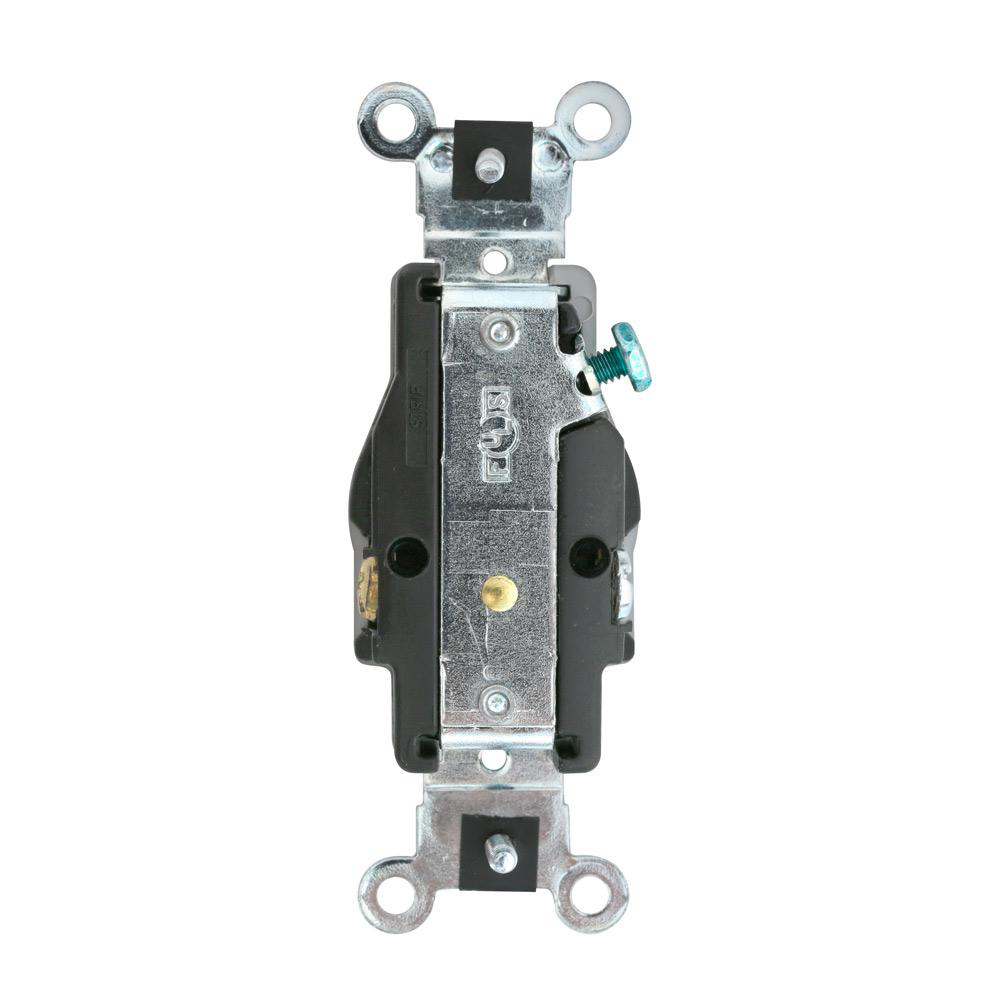

Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather-Resistant, Smooth Face, 20 Amp, 250 Volt, Back or Side Wire, NEMA 6-20R, 2-Pole, 3-Wire, Self-Grounding - Light Almond

Technical Information

Amperage
20 A
Applications
Industrial
Body Material
Nylon
Device Type
Single Receptacle Outlet
Dielectric
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
2 hp
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
75 degrees C
Standard
CSA,E2186,UL
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Type
Single Key Access

Manufacturer Information

Brand
Leviton
Sub Brand
INDUSTRIAL RECEPTACLES

General Product Info

12-Digit UPC
078477066218
GTIN
00078477066218

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
