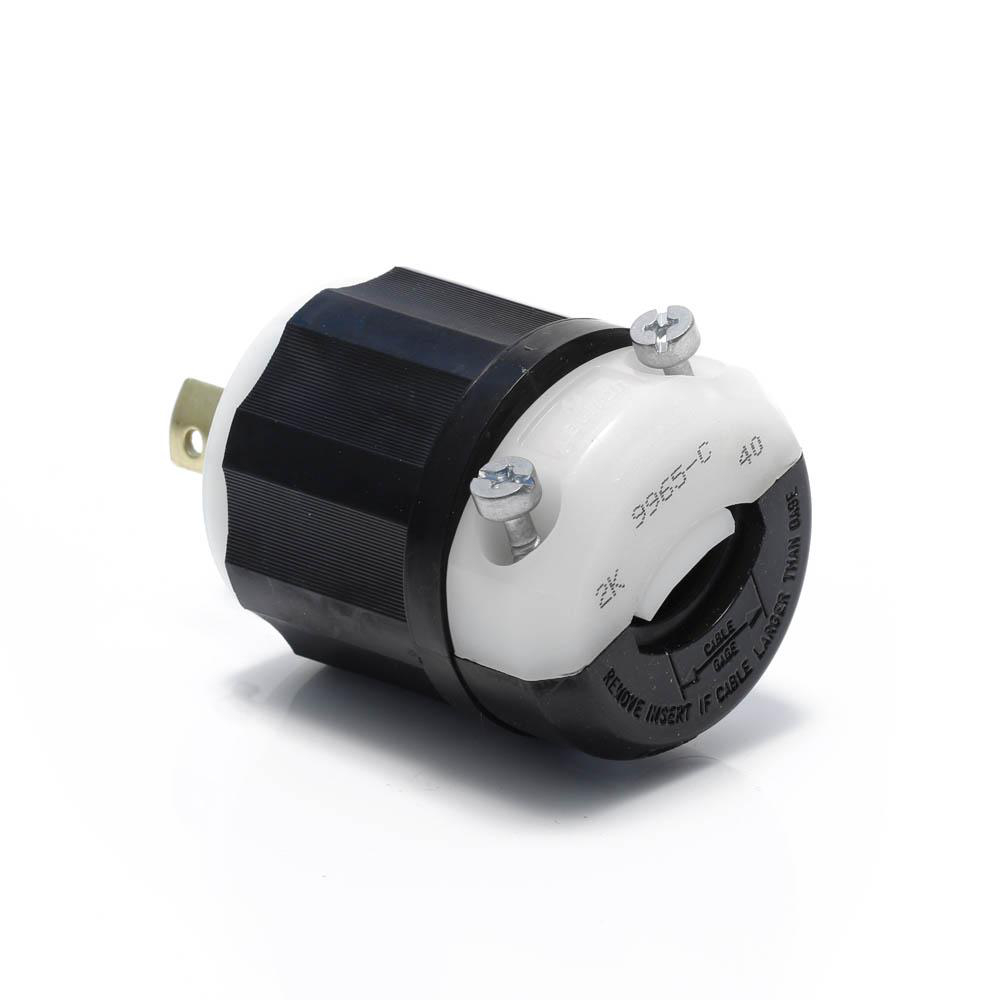

Plug locking ind grade nyl 3P3W 250V 20A blk/wht

Manufacturer: Leviton Manufacturing | Catalog # 9965-C | Electrozad South Part # 372333
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Locking plug offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty. It is constructed of nylon with solid brass blades or contacts and steel, zinc plated assembly screws.

Technical Information

Amperage
20 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Contact Material
Solid Brass
Cord Size
0.25 - 0.685 in
Device Type
Locking Plug
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
No
Material
Super Tough Nylon
Mounting Type
Cable

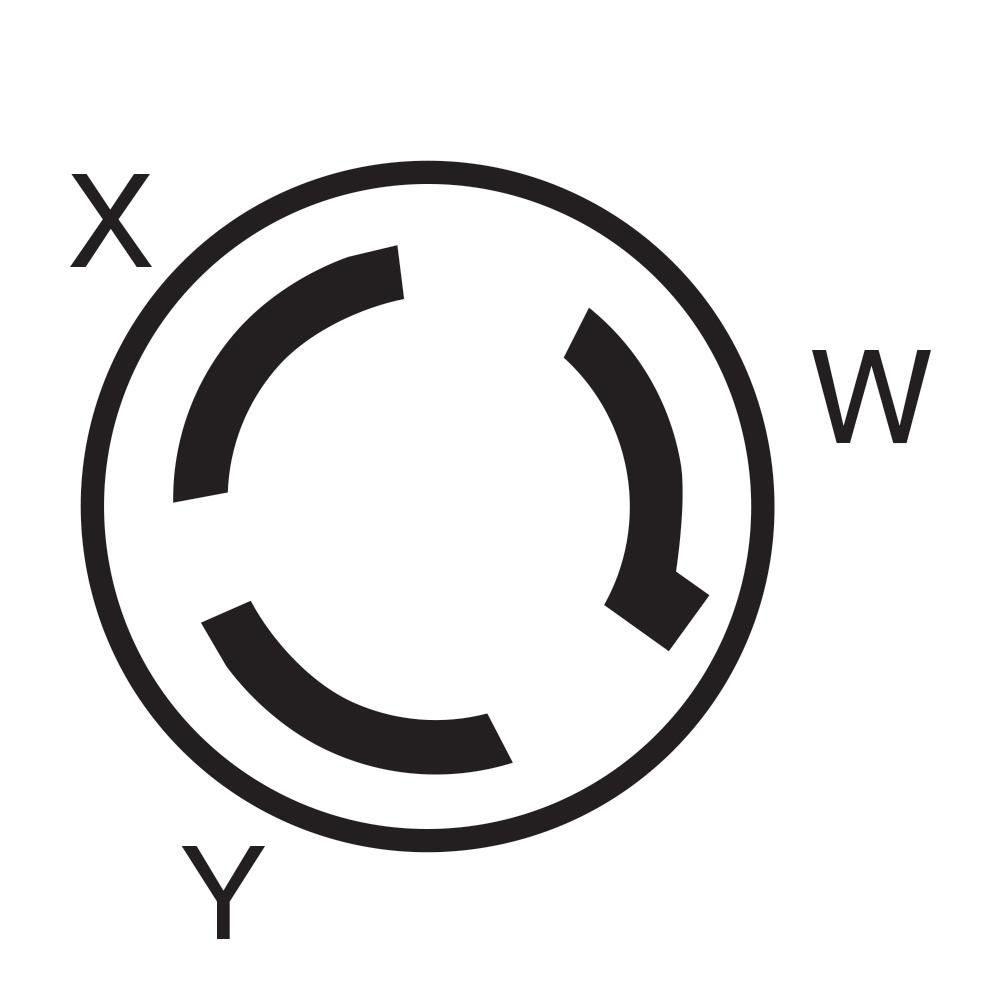

NEMA
WD-6
Number of Poles
3
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
2.22 Dia x 2.70 H IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Straight Angled
Voltage
125/250 V
Wire Count
3
Wire Size
16 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477829578

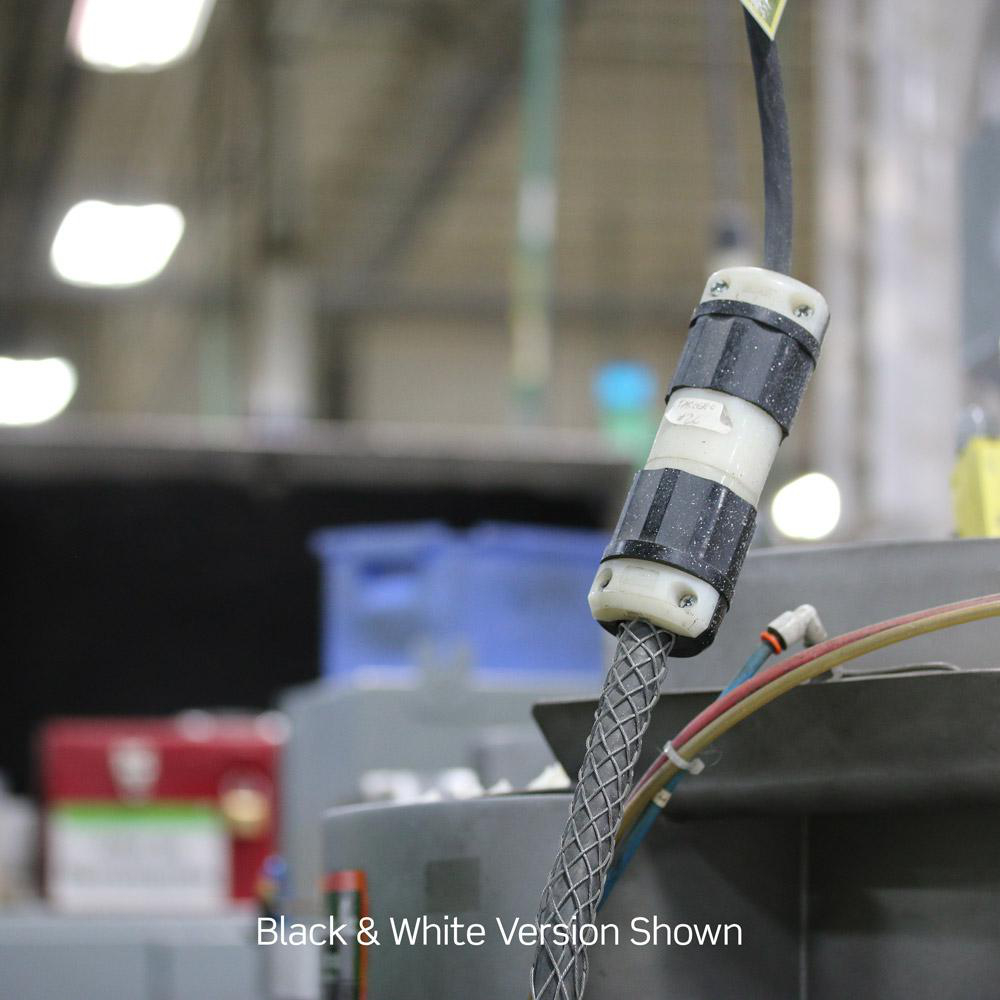

Color
Black,White
Environment
Dry
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477829578

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
