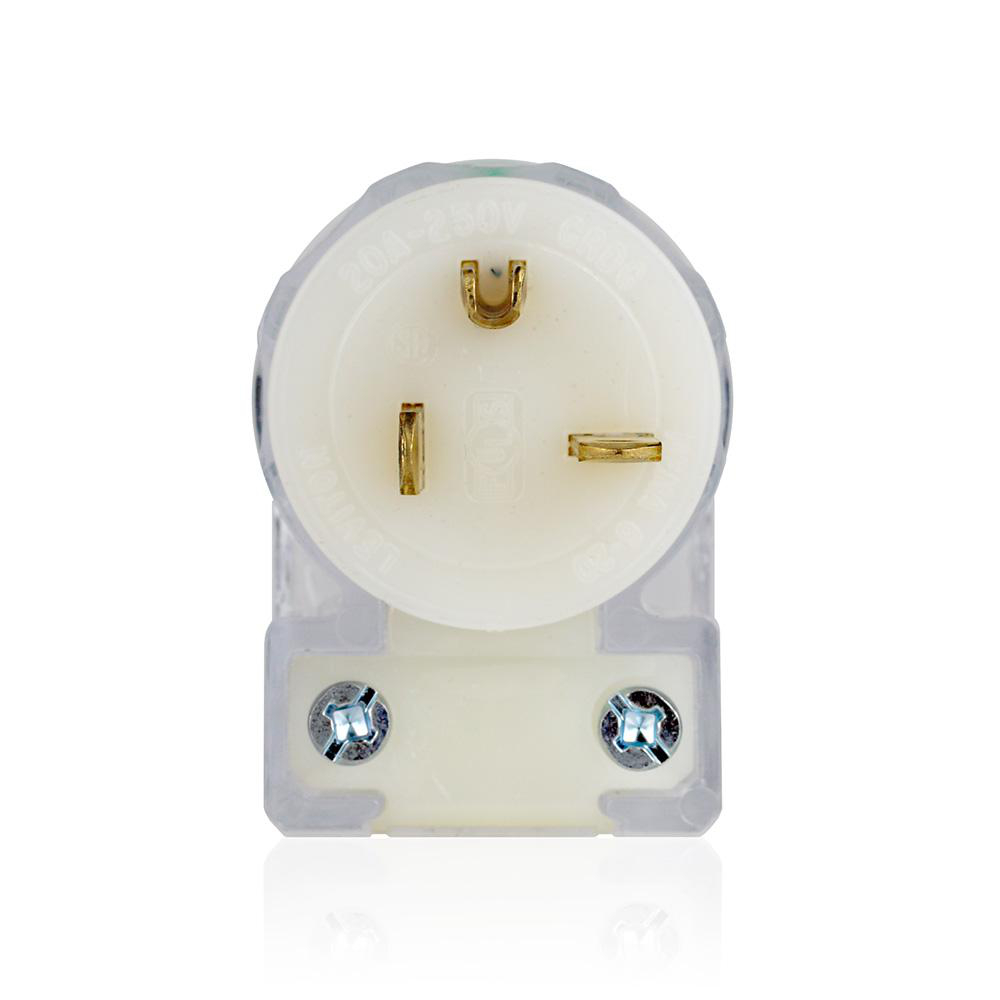

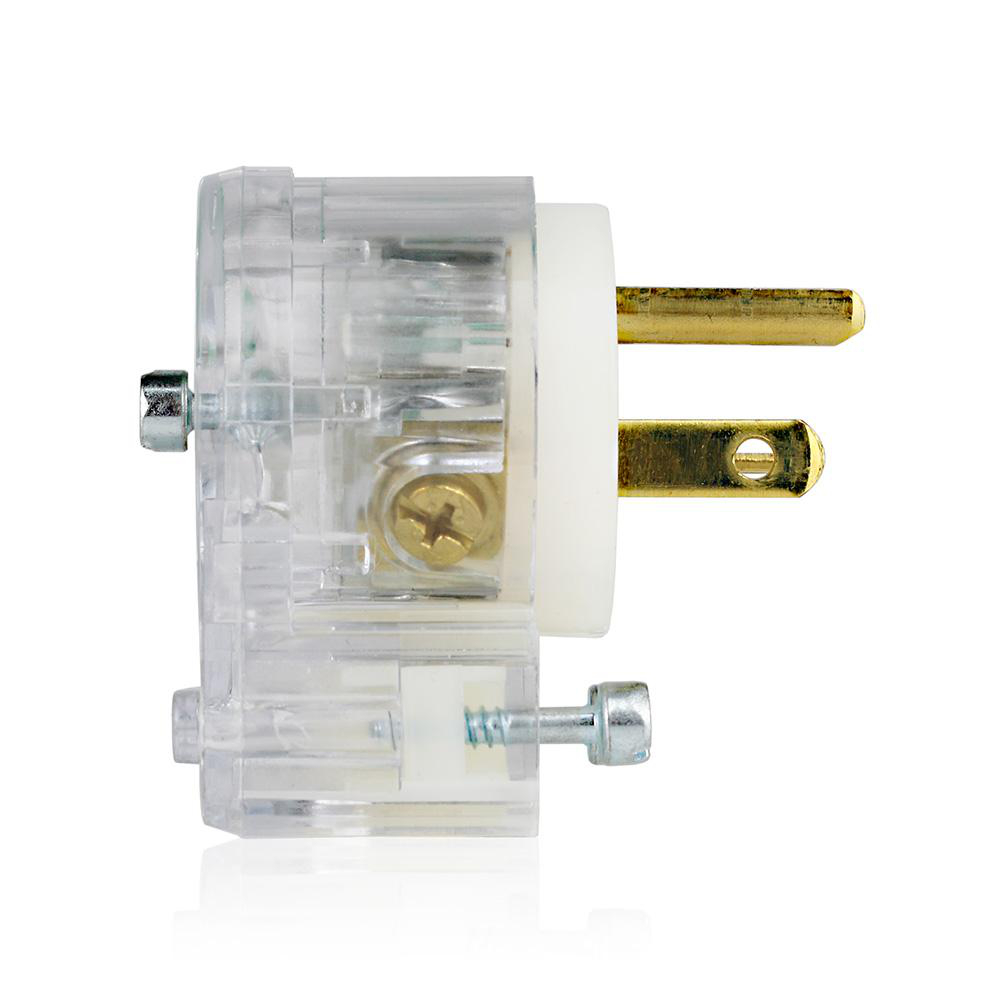

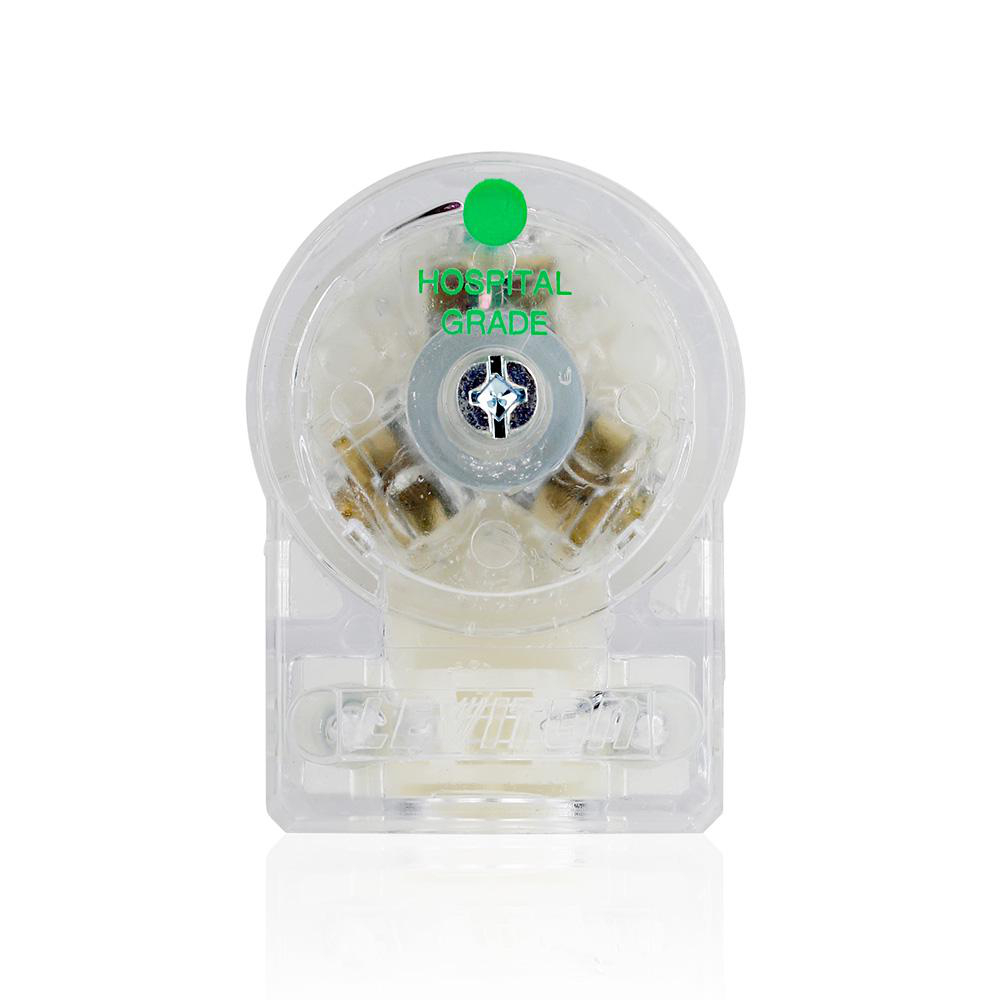

Plug straight 2P 3W 250V 20AMP angle-black-white

Manufacturer: Leviton Manufacturing | Catalog # 8415-CAT | Electrozad South Part # 371554
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Leviton's black and white line of industrial grade plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, you'll be sure to find the right device for your needs.

Technical Information

Amperage
20 A
Applications
Hospitals
Blade Type
Solid Brass
Body Material
Super Tough Nylon
Conductor Size
18 - 10 AWG
Contact Material
Solid Brass
Device Type
Straight Blade Plug
Dielectric
2000 V
Grade
Hospital
Grounding
Grounding
Material
Super Tough Nylon (Body)
Mounting Type
Cable
NEMA
6-20P
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
29 H x 1.53 W x 1.30 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Type
Hospital Grade, Angled
Voltage
250 V
Wire Count
3
Wire Size
18 - 10 AWG 0.25 - 0.685 in

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477954836
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477954836

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
