Roller cable tray heavy-duty 42-3/4x14-1/4"

Manufacturer: Greenlee Tools | Catalog # CTR200 | Electrozad South Part # 371151

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

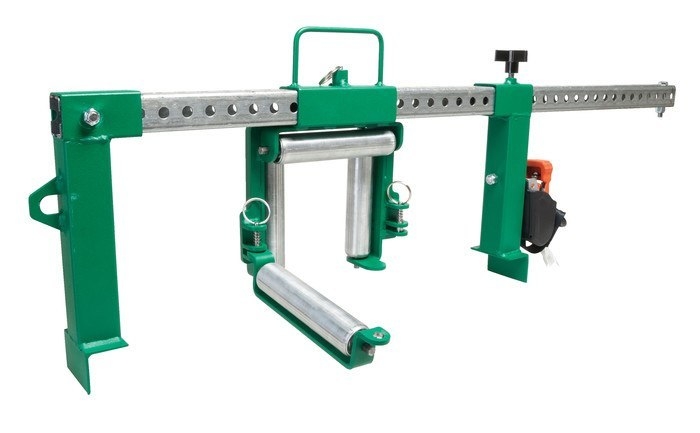

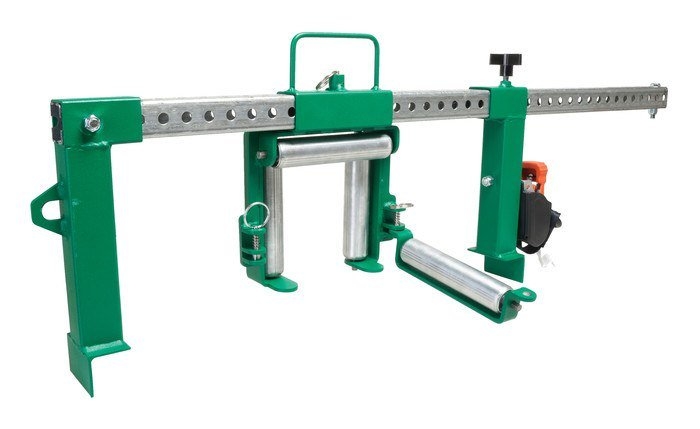

Heavy duty cable tray roller. Perforated tube allows adjustable leg to fit on tray widths of up to 36 inch. Auto-retractable ratchet strap quickly fastens mounting system to tray. Rotating frame opens from left to right side to release cable. No loose pieces. Adjustable legs to fit onto tray width sizes of 12 to 36 inch. Mounting bracket securely fastens to various types of cable tray rails. 4 conveyer roller guide with 2 retained spring pull-pin release to easily remove cable from both sides. Closed conveyer roller guide that traps cable within guide without damaging cable jacket. 6 ft long durable retractable ratchet strap for sturdy assembly onto tray. Easily handle forces of up to 200 lbs. Designed and assembled in USA. Application: use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90.. bends and offsets without taking space up inside the tray.

Technical Information

Applications

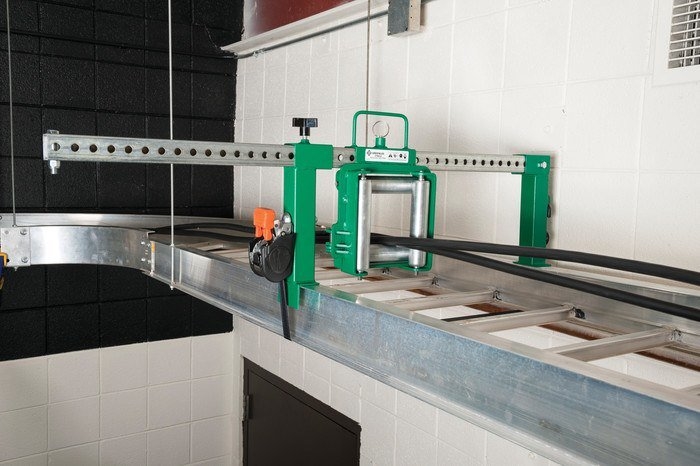

Use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90° bends and offsets without taking space up inside the tray.
Cable Size
4 in
Capacity
200 lb (90 kg)
Material
Steel

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310027973
GTIN
00783310027973
Weight
19.9 lb

Dimensions

Length
42-3/4 in
Overall Length
1085.9 mm
Width
4-1/4 in

Certifications & Compliance

Country of Origin
USA
