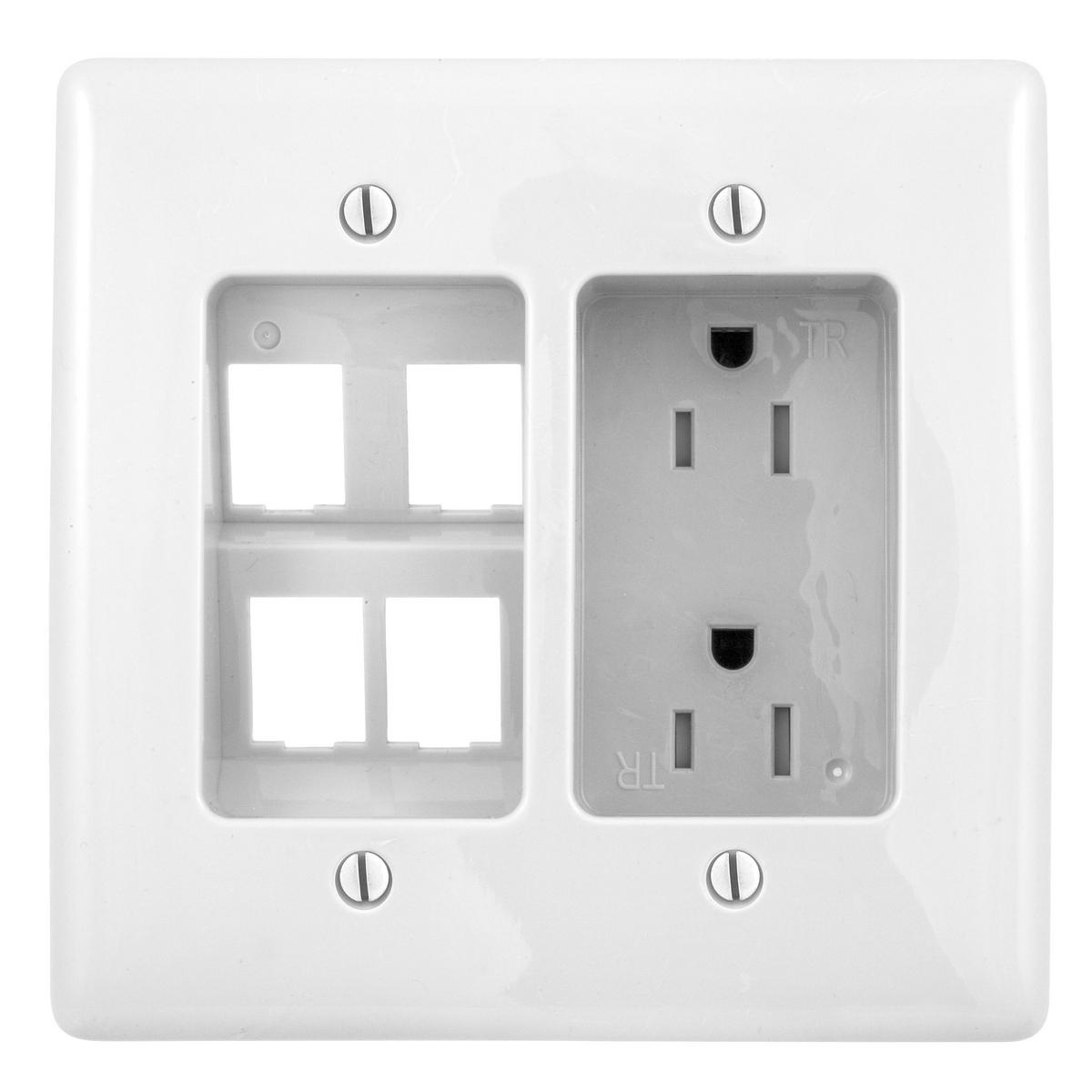

Receptacle duplex recessed tamper resistant 2-gang 4-port 125V 15A white

Manufacturer: Hubbell Wiring Devices | Catalog # RR1514W | Electrozad South Part # 370874
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Tamper-Resistant (TR) duplex. Easily mounts to a box. Snapfit connects and organizes low voltage cables. Smooth face, back and side wired.

Technical Information

Applications
Residential
Conductor Size
14 - 12 AWG
Face Material
Nylon
Grade
Residential
Grounding
Self
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
Standard Product
TC Connection
Terminal Screws
Temperature Rating
-40 Degrees C to 75 Degrees C
Type
Decorator Face
Voltage
1,500 V
Wattage
1875 W
Wire Size
#14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
USB Charging

General Product Info

12-Digit UPC
883778305788
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00883778305788
Product UPC
88377830578
Overview
  • Snapfit connects and organizes low voltage cables
  • Easily mounts to a box
  • Tamper-Resistant (TR) duplex
