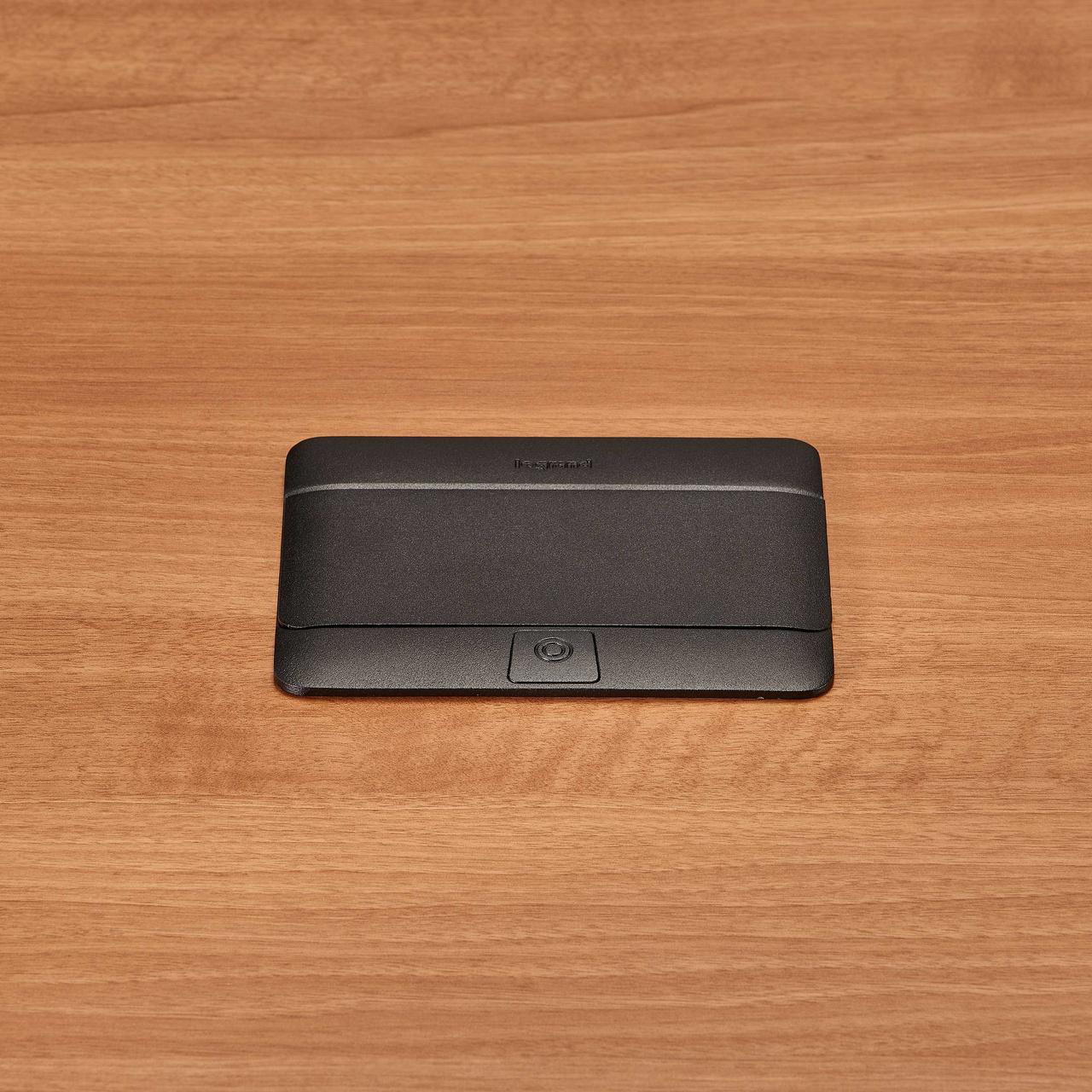

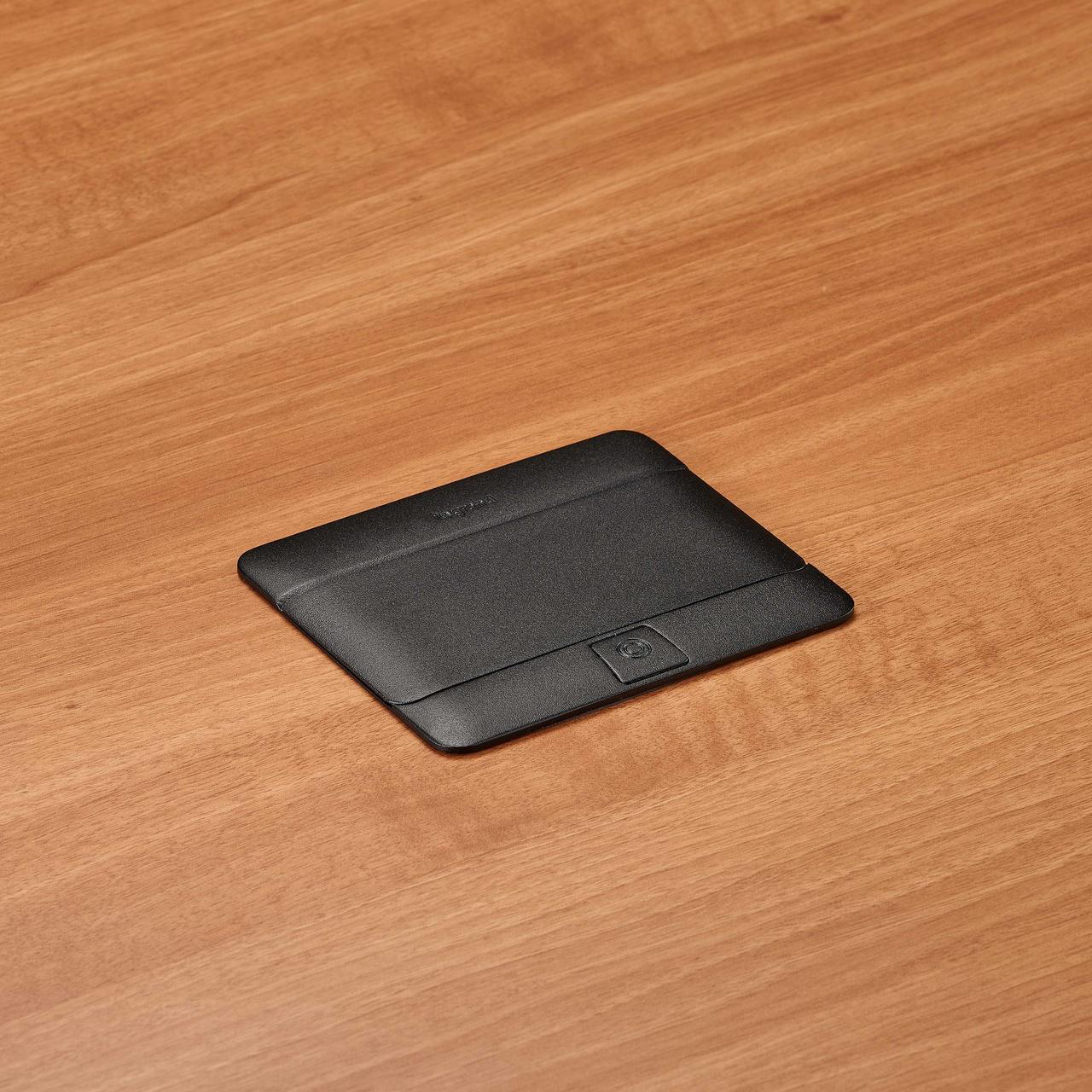

Box single flip-up field wired USB 20A black

Manufacturer: Wiremold | Legrand | Catalog # DQFF20UBK | Electrozad South Part # 370689
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual

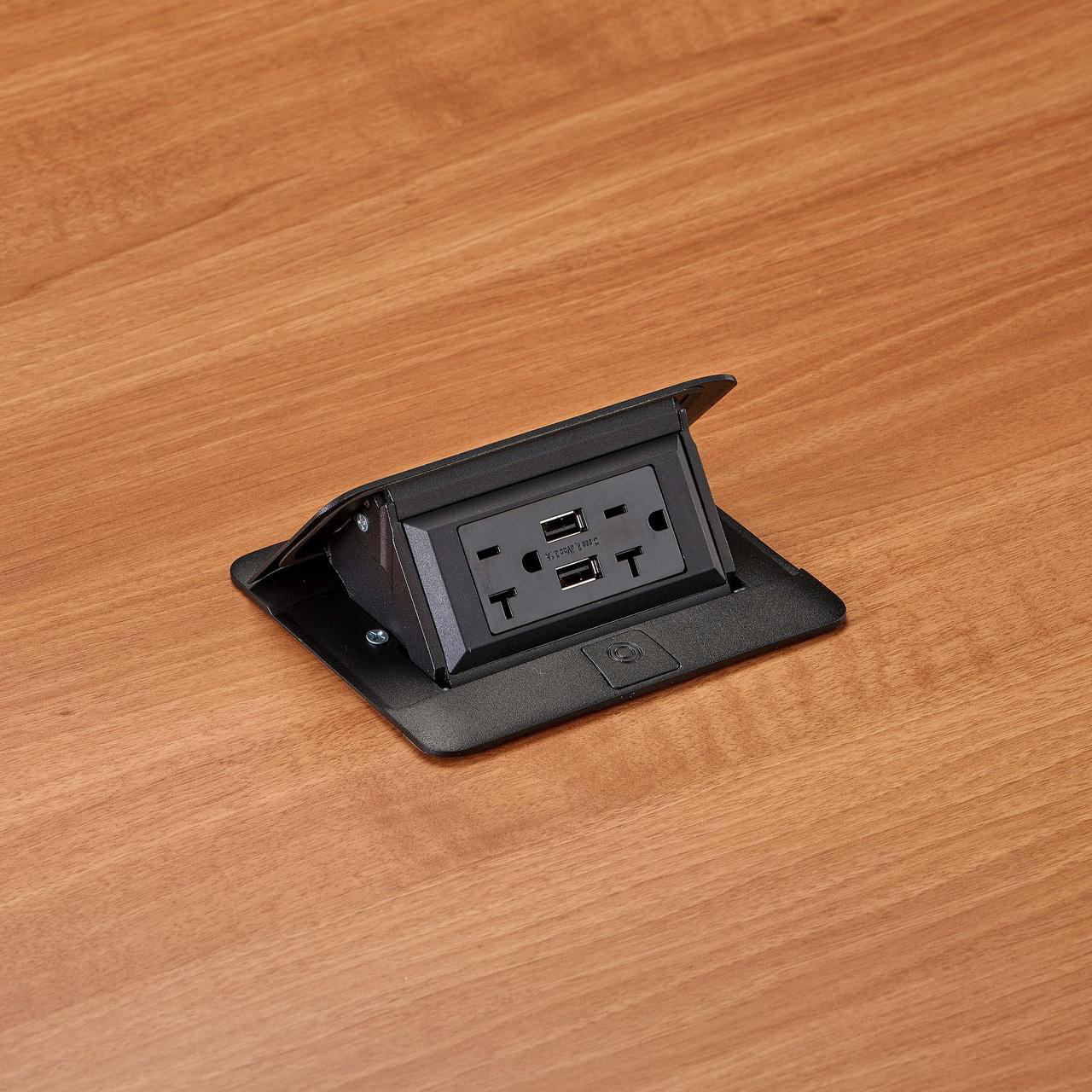

Wiremold® deQuorum™ Flip-up table box can be field wired with MC or EMT using any 1/2 inch trade size connector. It provides flexibility in decor, communication connectivity options and installation to meet specific functional and aesthetic needs. Flip-up table box bring the modules above the work surface when in use for easy access. Hot, neutral and ground wires come with quick connects for activation. Unit includes (1) 20 A black tamper-resistant duplex receptacle with (2) USB ports that provide 3.1 A.

Technical Information

Amperage
20 A
Applications
Commercial,Education,Entertainment,Healthcare,Hospitality,Parks,Retail,Transit
Cable Entry
Field Wired
Cord Length
6.0 ft
Material
Steel
Mounting Type
Bracket
Number of Gangs
1
Outlet Type
Tamper-Resistant
Type
Field Wired
Voltage
125.0 V

Manufacturer Information

Brand
Wiremold
Sub Brand
deQuorum™

General Product Info

12-Digit UPC
786776186826
Color
Black
Finish
Powder Coated
GTIN
00786776186826
Weight
2.3 lb

Dimensions

Length
5-5/8 in
Warranty Length
1-Year From Installation Or 2-Years From Day Of Sale
Width
4-3/4 in

Certifications & Compliance

Certifications
CULUS,NAFTA,ROHS
Country of Origin
Mexico
