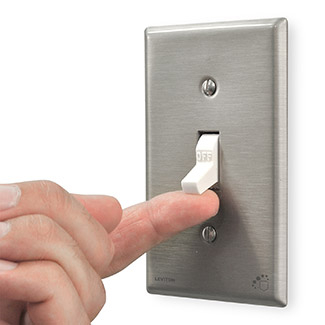

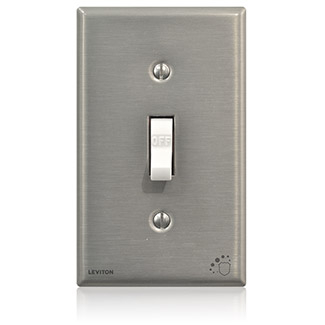

Switch toggle 1-pole antimicrobial treated 20A 120/277V white

Manufacturer: Leviton Manufacturing | Catalog # A1221-2W | Electrozad South Part # 370198
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet
Antimicrobial treated devices. These devices are made with an antimicrobial additive that helps protect them from the growth of harmful bacteria.

Technical Information

Actuator
Toggle
Amperage
20 A
Applications

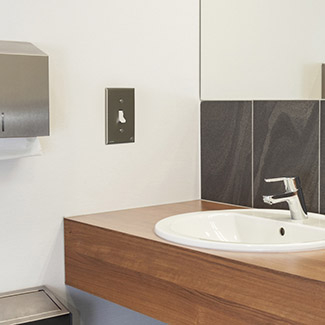

For Healthcare Facilities, Educational Institutions, Hospitality Facilities, Commercial Kitchens, Nurseries, Bathrooms
Base Material
Thermoplastic
Conductor Size
14-10 AWG
Contact Material
Silver-Alloy
Cover Material
Thermoplastic
Device Type
Toggle Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated HB Or Better UL94
Grade
Industrial, Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
NEMA
WD-1
Number of Poles
1
Operating Cycles
50000
Operating Temperature
-40 degrees C
Standard
UL 514D
Storage Temperature
-40 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Toggle Material
Antmicrobial Urea
Type
Antimicrobial Treated, Extra Heavy Duty
Voltage
120/277 V

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477697122
Color
White
GTIN
00078477697122

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
