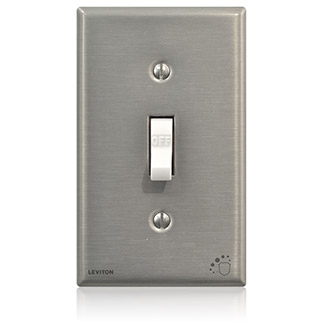

Image thumbnail 1

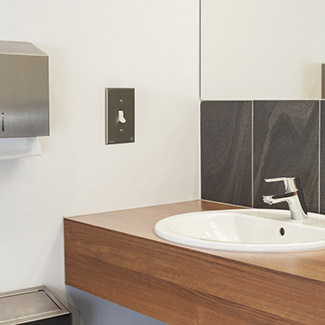

Image thumbnail 2

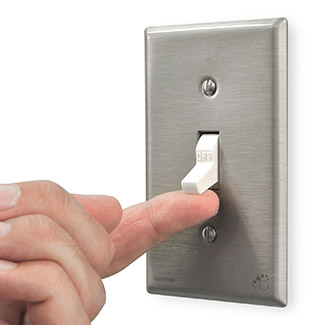

Image thumbnail 3
To:
CC:

Switch toggle extra HD AC quiet 3-way 120/277V 20AMP white

Manufacturer: Leviton Manufacturing | Catalog # A1223-2W | Electrozad South Part # 370196
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet
Antimicrobial treated toggle, 3-way AC quiet switch, extra heavy duty spec grade, self grounding.

Technical Information

Actuator
Toggle
Amperage
20 A
Applications
For Healthcare Facilities
Base Material
Thermoplastic
Conductor Size
14-10 AWG, 14-12 AWG
Contact Material
Silver-Alloy
Cover Material
Thermoplastic
Device Type
Toggle Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated HB Or Better UL94
Grade
Extra Heavy-Duty Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
NEMA
WD-1
Number of Poles
1
Operating Cycles
50000
Operating Temperature
-40 degrees C
Standard
UL 514D
Storage Temperature
-40 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Toggle Material
Antmicrobial Urea
Type
3-Way, Antimicrobial
Voltage
120/277 V

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477699300
Color
White
GTIN
00078477699300

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
