TESYS GV2, SURFACE MOUNT ENCLOSURE, FOR TESYS GV2ME, IP41 RATED

Manufacturer: Schneider Electric | Catalog # GV2MC02 | Electrozad South Part # 368288
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

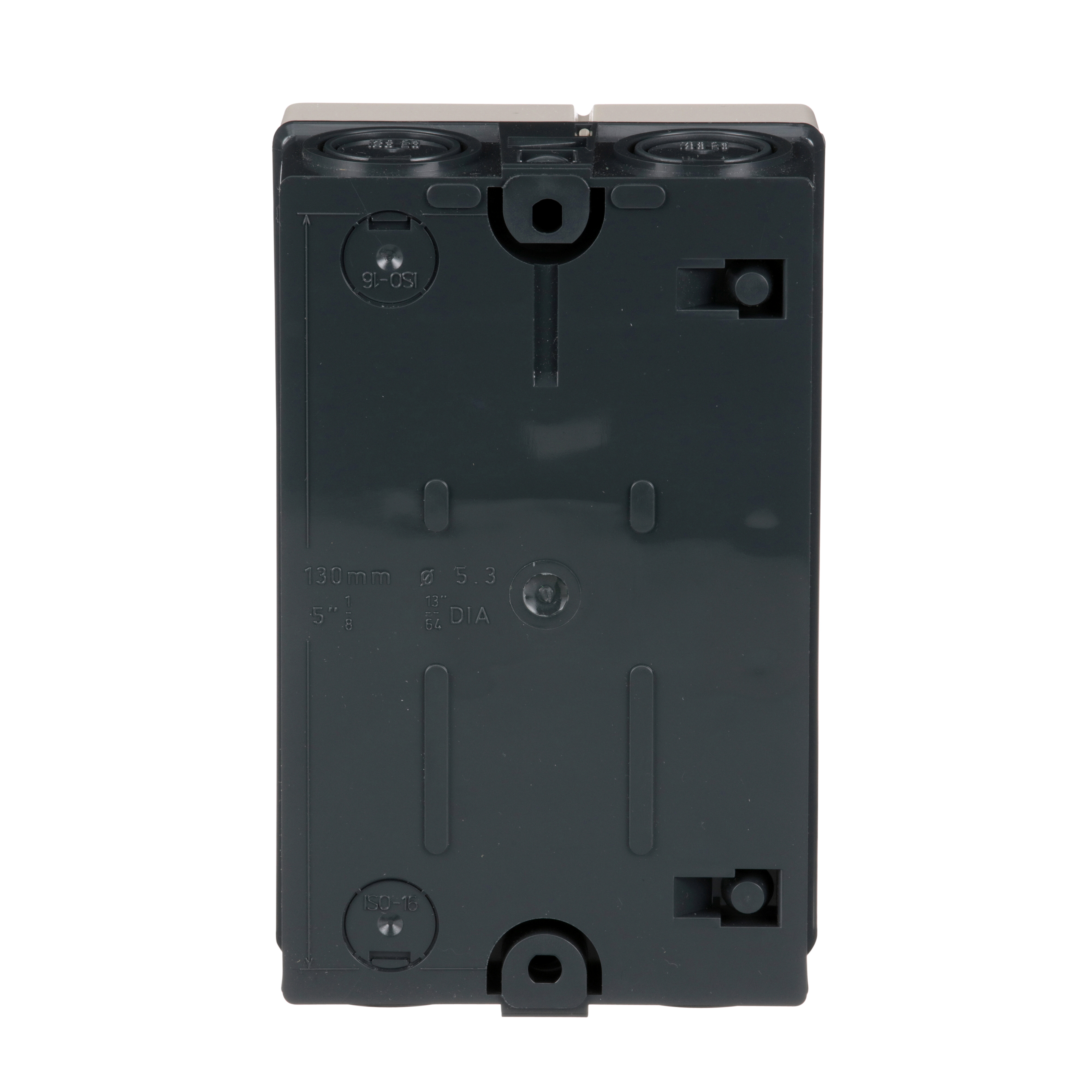

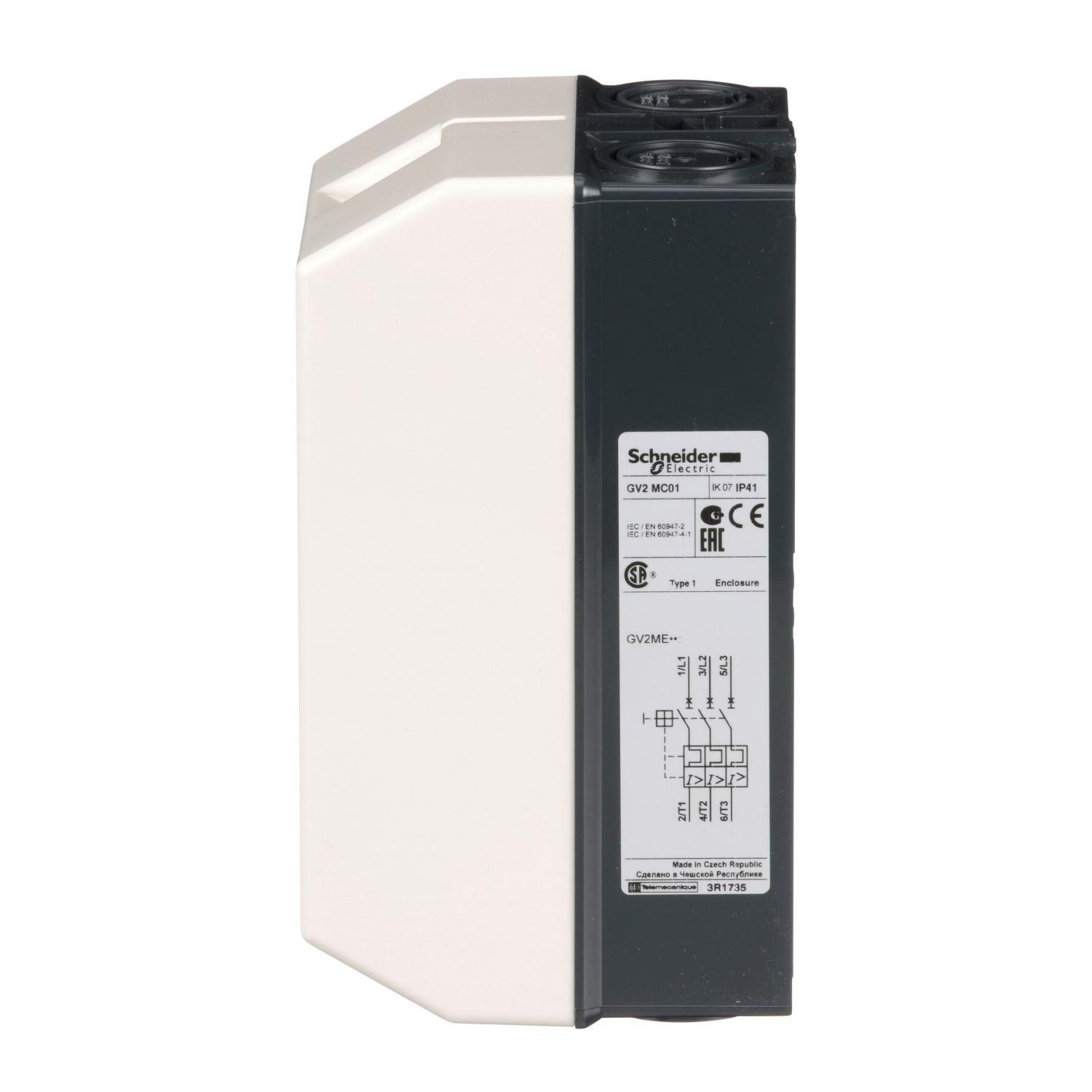

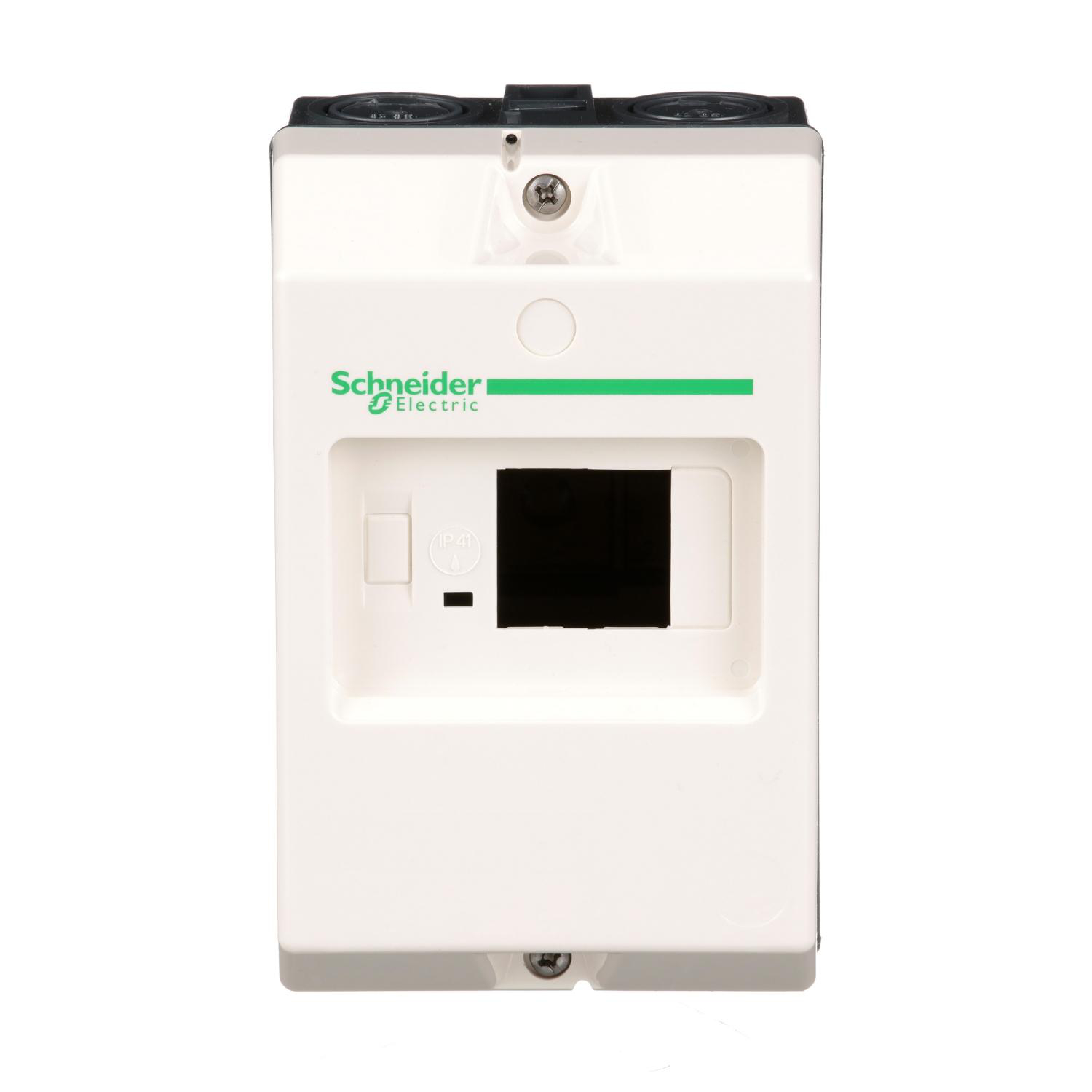

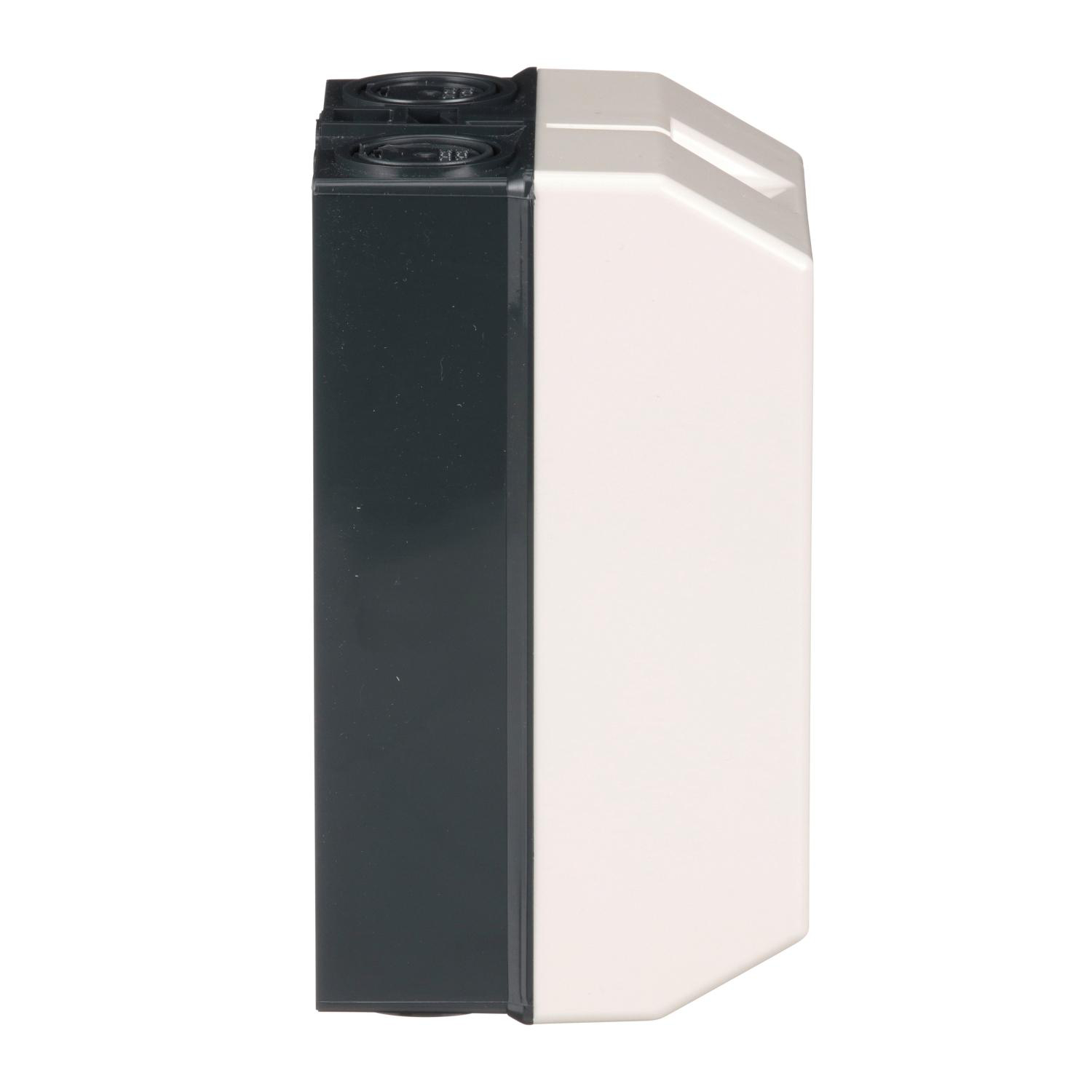

TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP41 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.

Technical Information

Applications
GV2ME
Enclosure
IP41
Enclosure Type
Surface mounting
Net Weight
0.3 kg
Operating Temperature
-5C TO 55C
Range
TeSys
Size
3.31 in
TC Connection
CONDUIT CUTOUTS
Type
GV2MC;Enclosure

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS

General Product Info

12-Digit UPC
338911021365
Environmental Conditions
STANDARD ENVIRONMENT
GTIN
03389110213645
Weight
0.3 kg

Dimensions

Depth
84 mm
Height
5.79 in
Warranty Length
18 mth
Width
3.66 in

Certifications & Compliance

Certifications
UKCA
Country of Origin
Czechia
