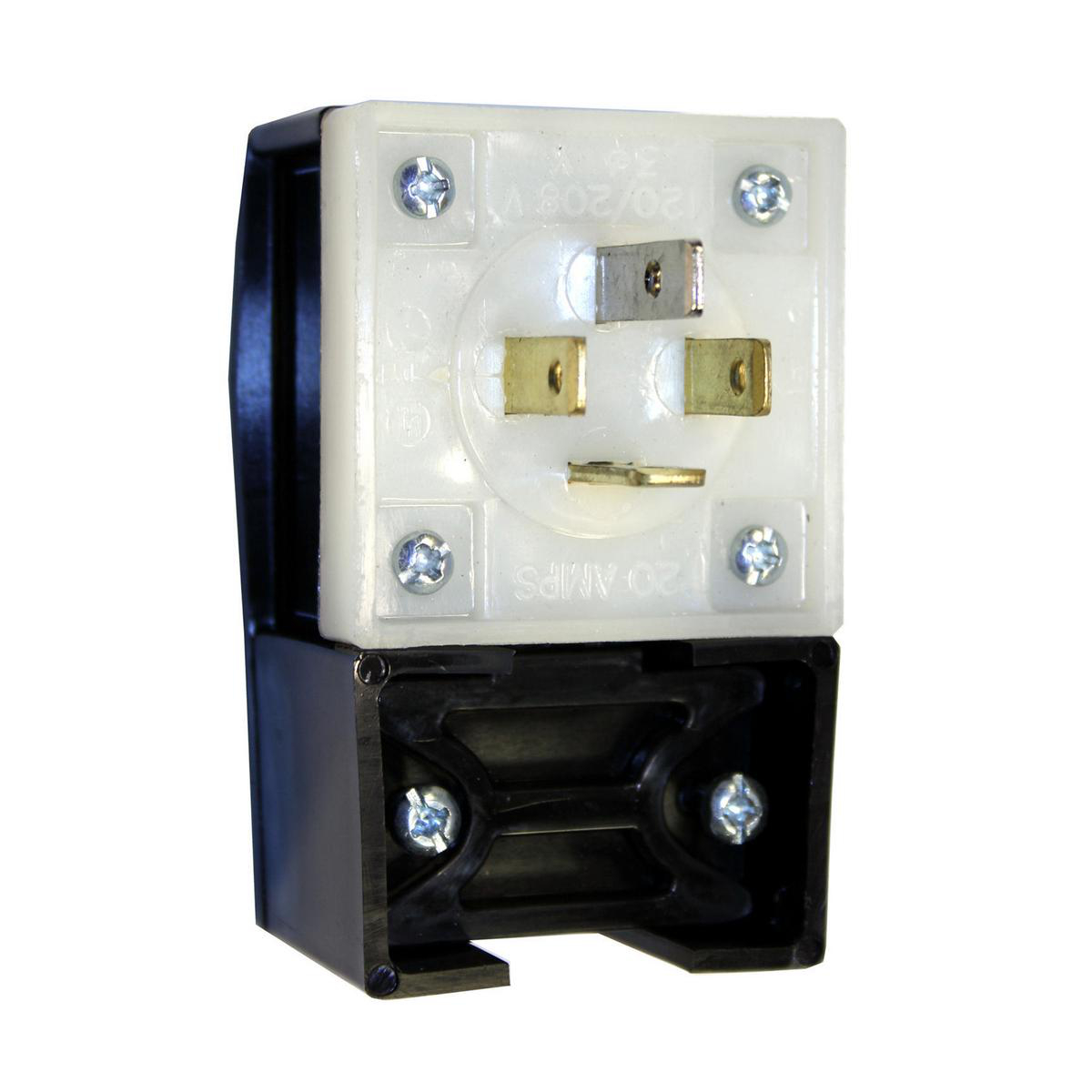

Plug L18-20P twlo cable angle 3ph 20A 120/208V

Manufacturer: Hubbell Wiring Devices | Catalog # HBL7251C | Electrozad South Part # 367118
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Hubbell TWIST-LOCK cable plugs and connectors are made of white nylon locking blade insert, black housing and 2 pieces screw cable clamp. Flanged inlet and outlet are made of white one-piece nylon. Box single/duplex receptacle are made of black or orange (isolated) thermoplastic. Full line of accessories like stainless steel and weatherproof cover plate. They follow NEMA and NON-NEMA lock coding version 1-2-3-4 pole, 20-30-50 amp, 125-250-277-347-480-600 volts.

Technical Information

Amperage
20 A
Applications
Industrial/Commercial
Conductor Size
14 - 10 AWG
Cord Type
All Portable
Current
20 A
Grounding
Non-Grounding
Horsepower
2 hp
Material
Composite
Mounting Type
Cord
NEMA
16-20P
Number of Phases
3
Number of Poles
4
Number of Wires
4
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
NEMA® WD-6,UL,UL498 File E1706
Style
4-position Angled
TC Connection
Terminal Screws
Type
Insulgrip
Voltage
120/208 V
Wattage
4160 W
Wire Count
4
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585013282
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585013282
Product Series
Heavy Duty Industrial Grade
Product UPC
78358501328
Weight
0.4 lb

Dimensions

Height
1.61 in
Length
3.64 in
Width
2.34 in

Certifications & Compliance

Country of Origin
Puerto Rico
Overview
  • 4-position assembly
  • Angled, low profile
  • Industrial heavy duty plug
