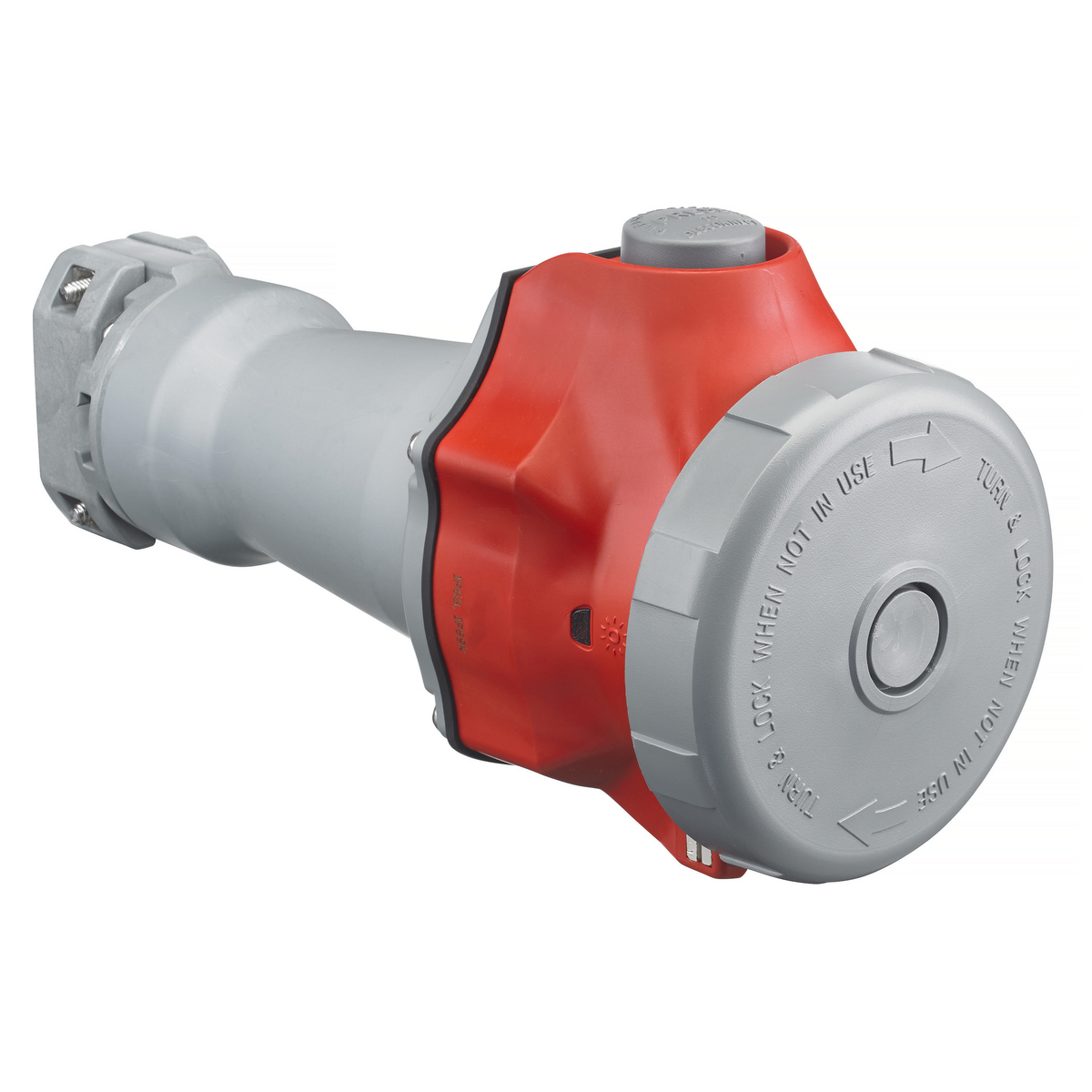

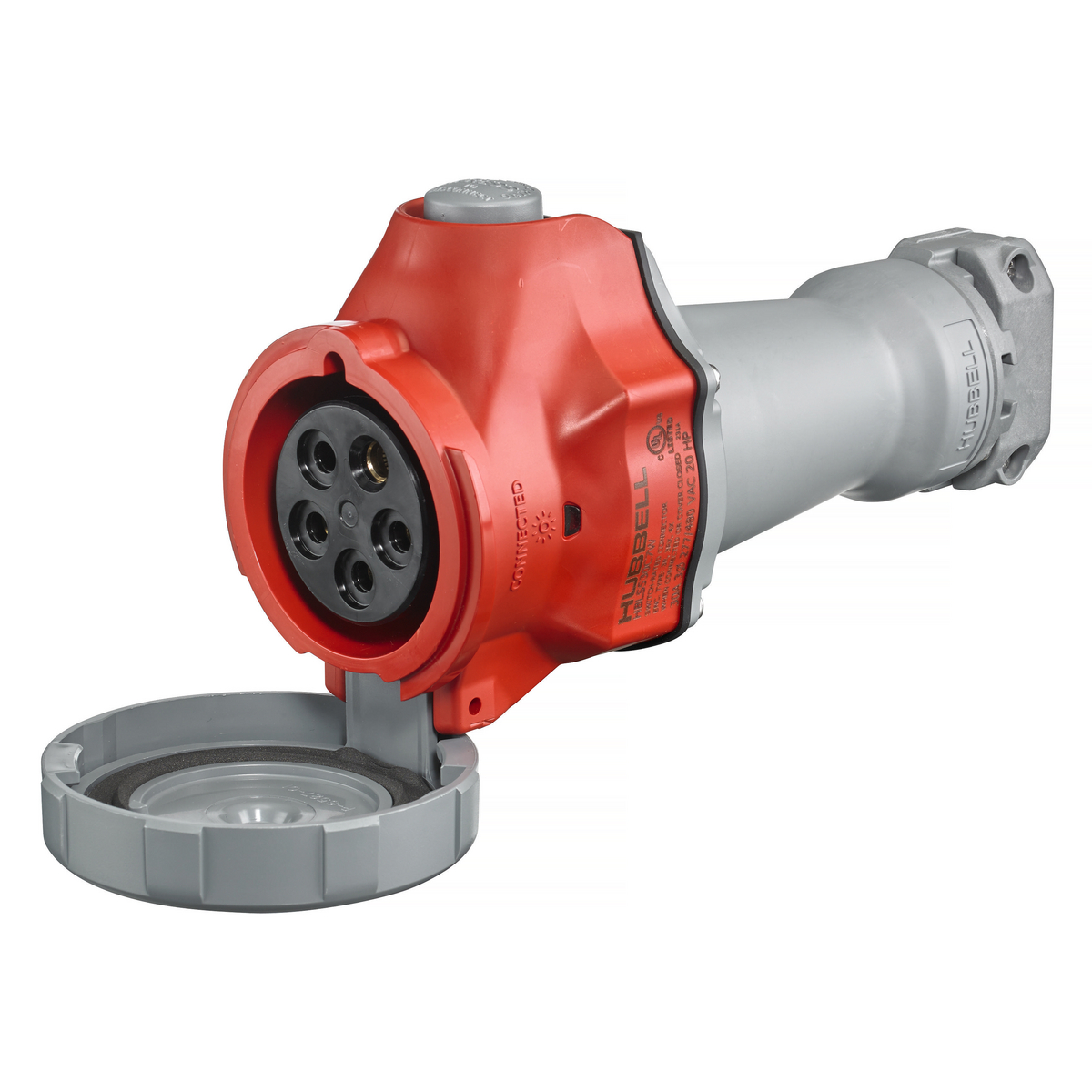

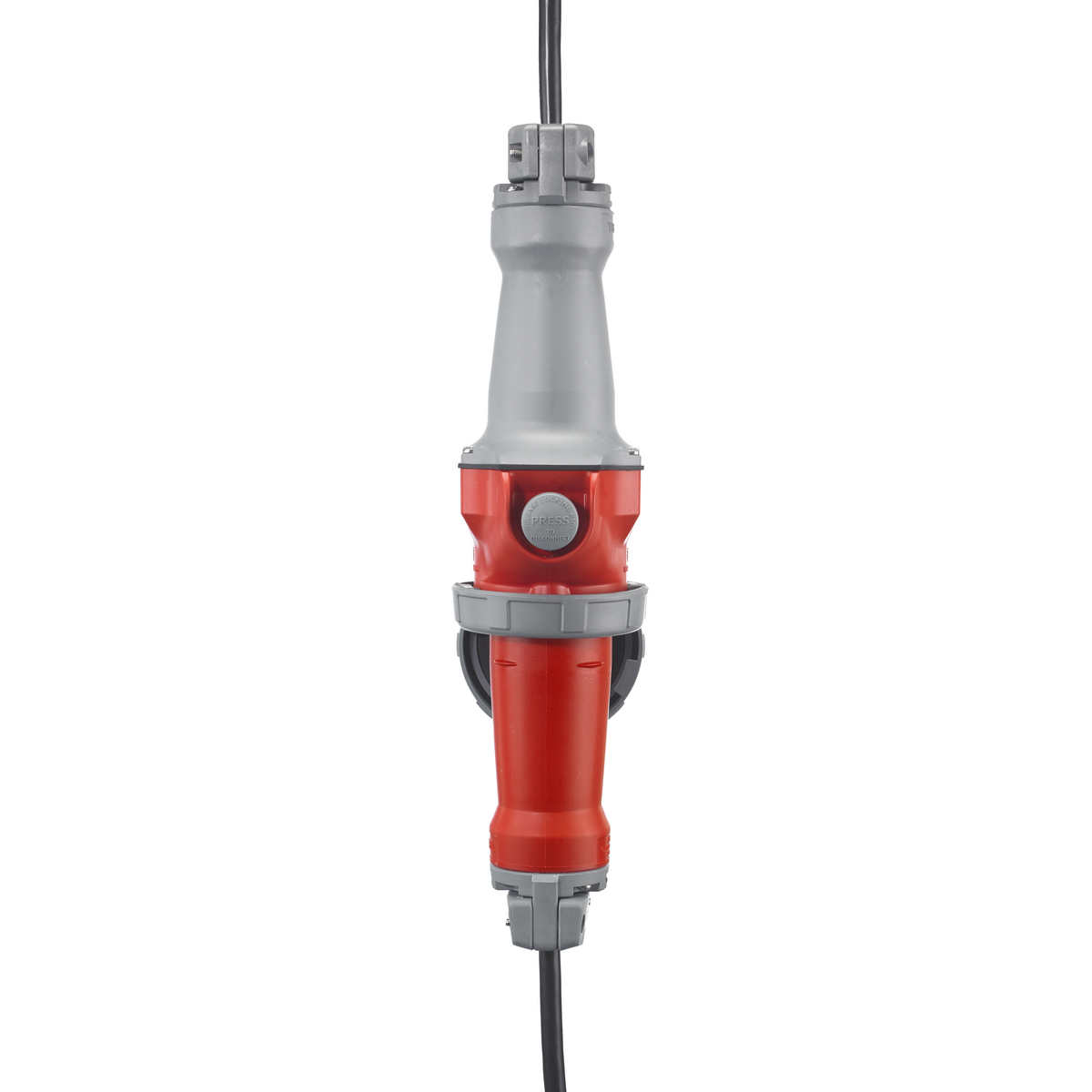

Connector IEC pin and sleeve 4P5W 200-415V 30/32AMP

Manufacturer: Hubbell Wiring Devices | Catalog # HBLS530C6W | Electrozad South Part # 366989
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty

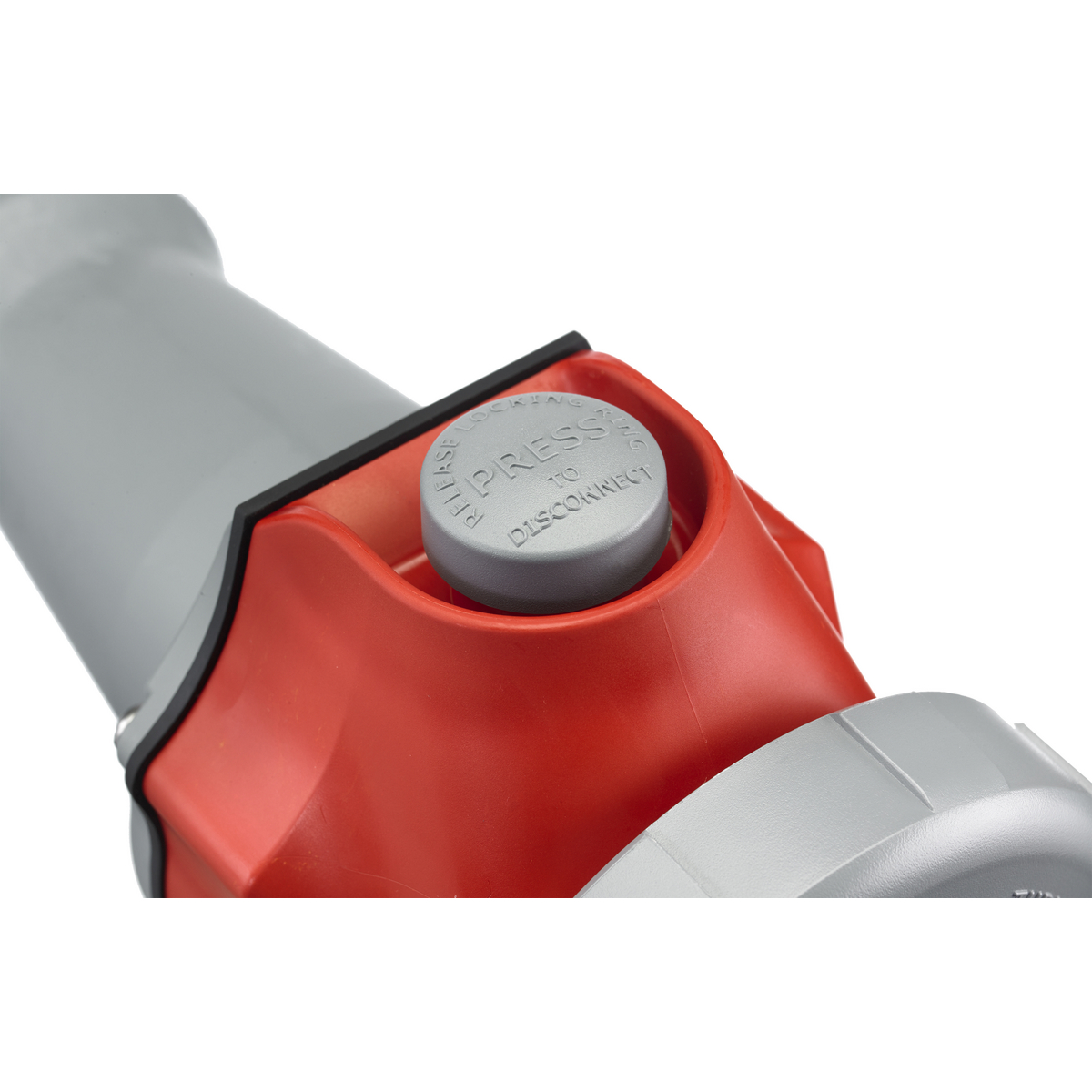

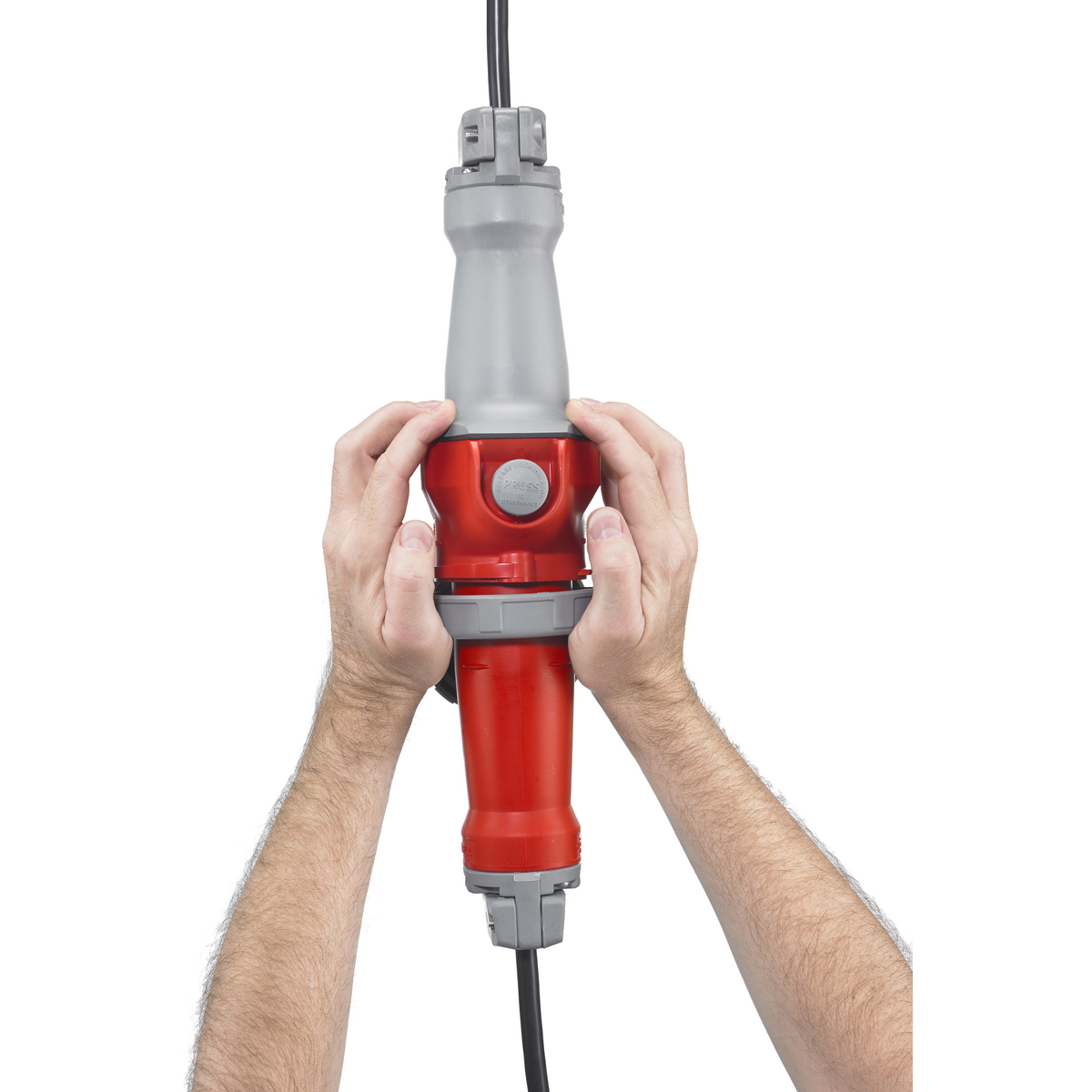

Advantage™ Series switch-rated IEC pin and sleeve device connector features UV-stabilized, impact and corrosion-resistant PBT housing is designed to withstand harsh industrial environments. Hubbell puts the Advantage™ into the palm of your hands with the easy-to-use leverage grip design from Hubbell. UL witnessed IP69k and UL Type 4X and 12. Device is built to withstand wet and harsh environments. Highly visible and long lasting green LED lights on both sides of the device provide visual verification of power when connected.

Technical Information

Amperage
30/32 A
Connection Type
Female
Dielectric Strength
3000 VAC
Grounding
Grounding
Material
PBT
Number of Poles
4
Number of Wires
5
Style
IP69k NEMA 4X
Temperature Rating
-40 to 75 degrees C
Type
Switched, Advantage Switch-Rated

Manufacturer Information

Brand
Hubbell Wiring Device Kellems

General Product Info

12-Digit UPC
783585550510
Color
Red
Environmental Conditions
V0 Flammability Rated, TYPE 3R, 3RX, 4X and IP68, IP69K Ingress Protection, IEC 60309-1 Moisture Resistance
GTIN
00783585550510
Product UPC
78358555051

Dimensions

Height
4.120 in
Length
9.810 in
Width
4.810 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Unswitched ground and power indicating LED lights
  • UL Type 4X, 12 and IP69k environmental ratings
  • Approved as a diconnecting means for motor circuits and branch circuits
  • Mates with existing installed base of IEC 60309-2 pin and sleeve devices
  • Impact and corrosion-resistant PBT that is color coded by voltage
