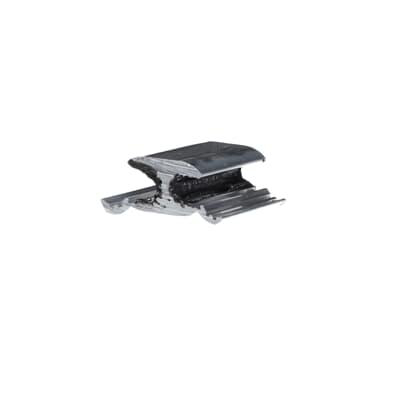

Image thumbnail 2

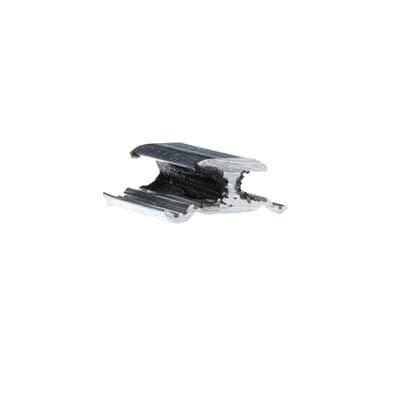

Image thumbnail 3
To:
CC:

H-tap connector alu wire 2/0@6al-cu 1.69Lin

Manufacturer: Blackburn Service Connectors | Catalog # WR189 | Electrozad South Part # 366829
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet
The blackburn WR series wide range aluminium H-tap connectors are made... For combinations of aluminum-aluminum andaluminum-copper conductors... Pass the requirements of ANSI C119.4... Standard compression tools and dies install all sizes... Seven Connector Program provides superior connectorperformance, lower connection costs and simplifiedinstallation procedures... Fold-in tabs provide positive tab interlock as tool closes... Field-proven ribbed design provides unparalledconnector/conductor contact, without distorting theconductor...s shape... Made of 1350 aluminum alloy... Pre-filled with an oxide inhibitor which is held captivein the rib/connection area

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Material
Aluminum
Number of Conductors
2
Size
1-11/16 in
Standard
ANSI C119.4,RUS Accepted
TC Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Short Sleeve
Wire Size
Main: 1/0 to #3 ACSR or 2/0 to #2 STR or 3/0 to #1 SOL AWG , Tap: #2 to #6 ACSR or #1 to #6 STR or 1/0 to #6 SOL AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786103027
Environmental Conditions
All Seasons
Finish
Tin Plated
GTIN
05415022349283
Housing Material
Aluminum
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors

Dimensions

Length
1-11/16 in
