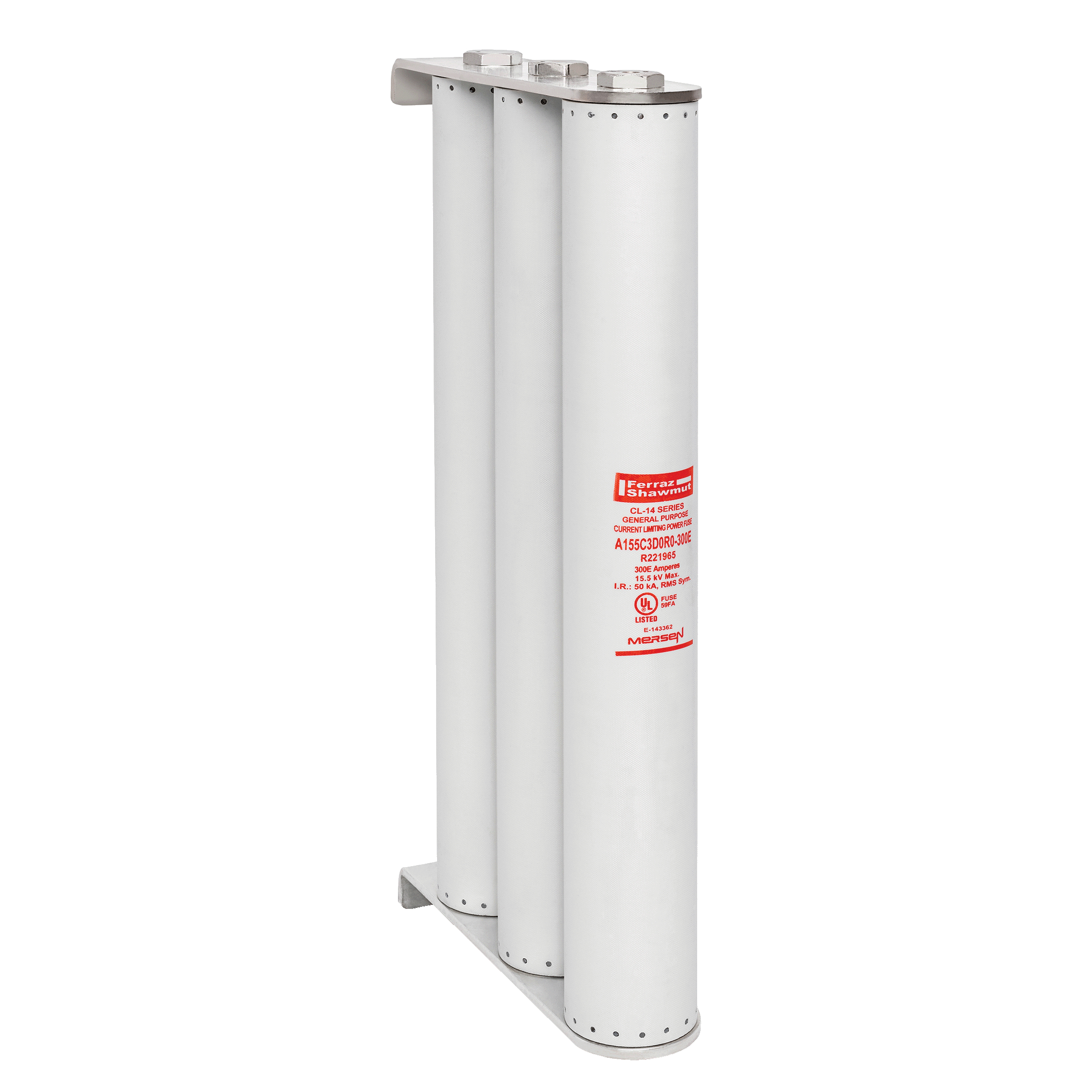

Medium Voltage E-Rated Fuse 15500VAC 300A Clip-lock Series: D0R0 Visual Indicator Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A155C3D0R0-300E | Electrozad South Part # 366693
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

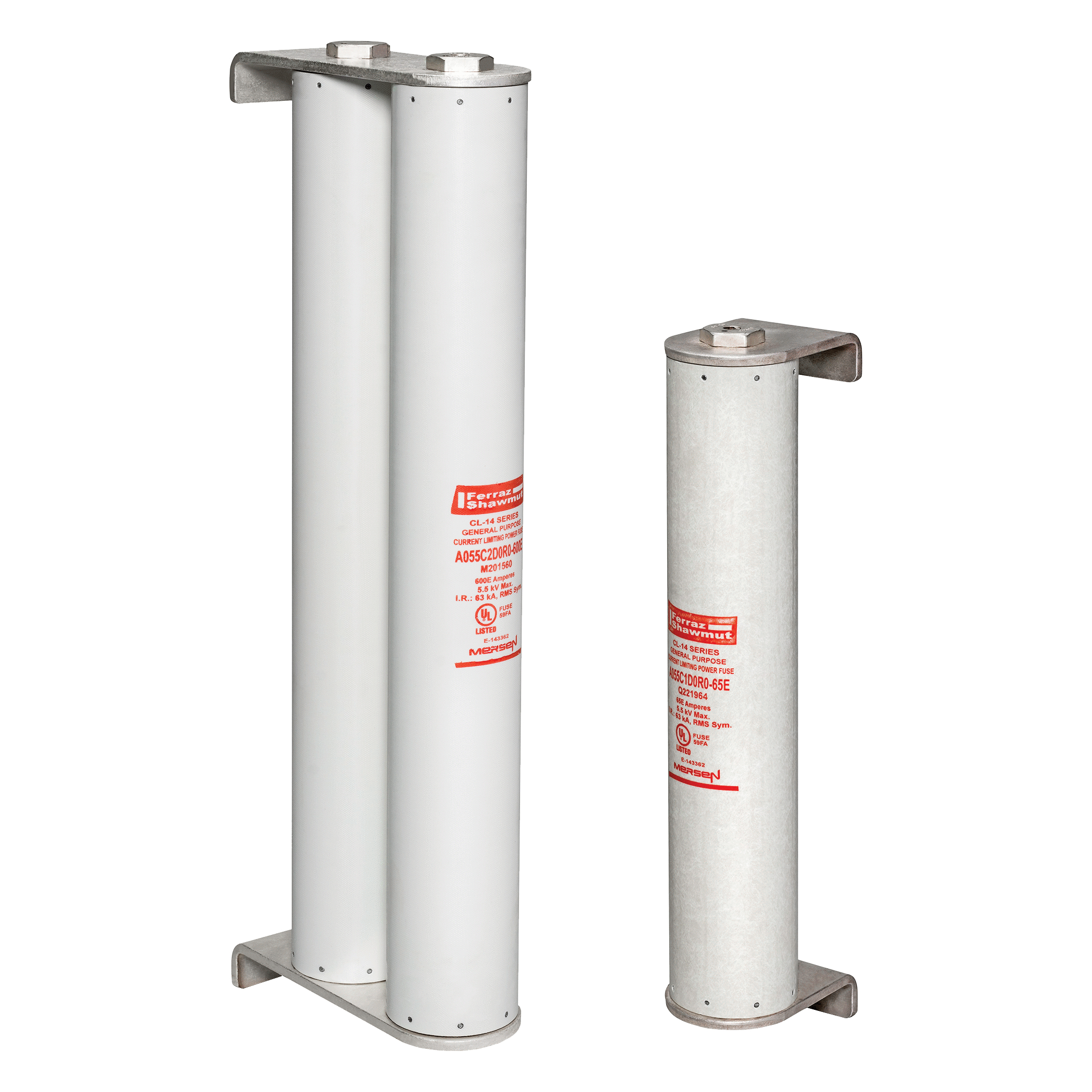

Mersen Amp-Trap fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These general purpose current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They are single, double or triple barrels 3 inch diameter (size D) and mount in unique cam-locking clips for superior connections as well as easy installation and replacement.

Technical Information

Amperage
300 A
Applications
Protection for 12kV to 15.5kV transformers or distribution systems.
Connection Type
Blade
Frequency
50/60 Hz
Indicator
Visual Indicator
Insulation Material
PolyTube
Max Operating Temperature
80 degrees C
Mounting Type
Clip-lock
Rated Voltage AC
15500 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
General Purpose Fuses E-Rated
Voltage
15500 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001804558
GTIN
10782001804555
Weight
40.1 lb

Dimensions

Height
11.56 in
Length
22.81 in
Width
3 in

Certifications & Compliance

Country of Origin
Mexico
