Plug straight 4P 4W 120/208V 50AMP angle-black

Manufacturer: Leviton Manufacturing | Catalog # 8352-P | Electrozad South Part # 366350
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Leviton's black and white line of industrial grade plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, you'll be sure to find the right device for your needs.

Technical Information

Amperage
50 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Super Tough Nylon
Device Type
Power Device
Dielectric
2000 V
Grounding
Non-Grounding
Horsepower
7-1/2 hp
Material
Super Tough Nylon
Mounting Type
Cable

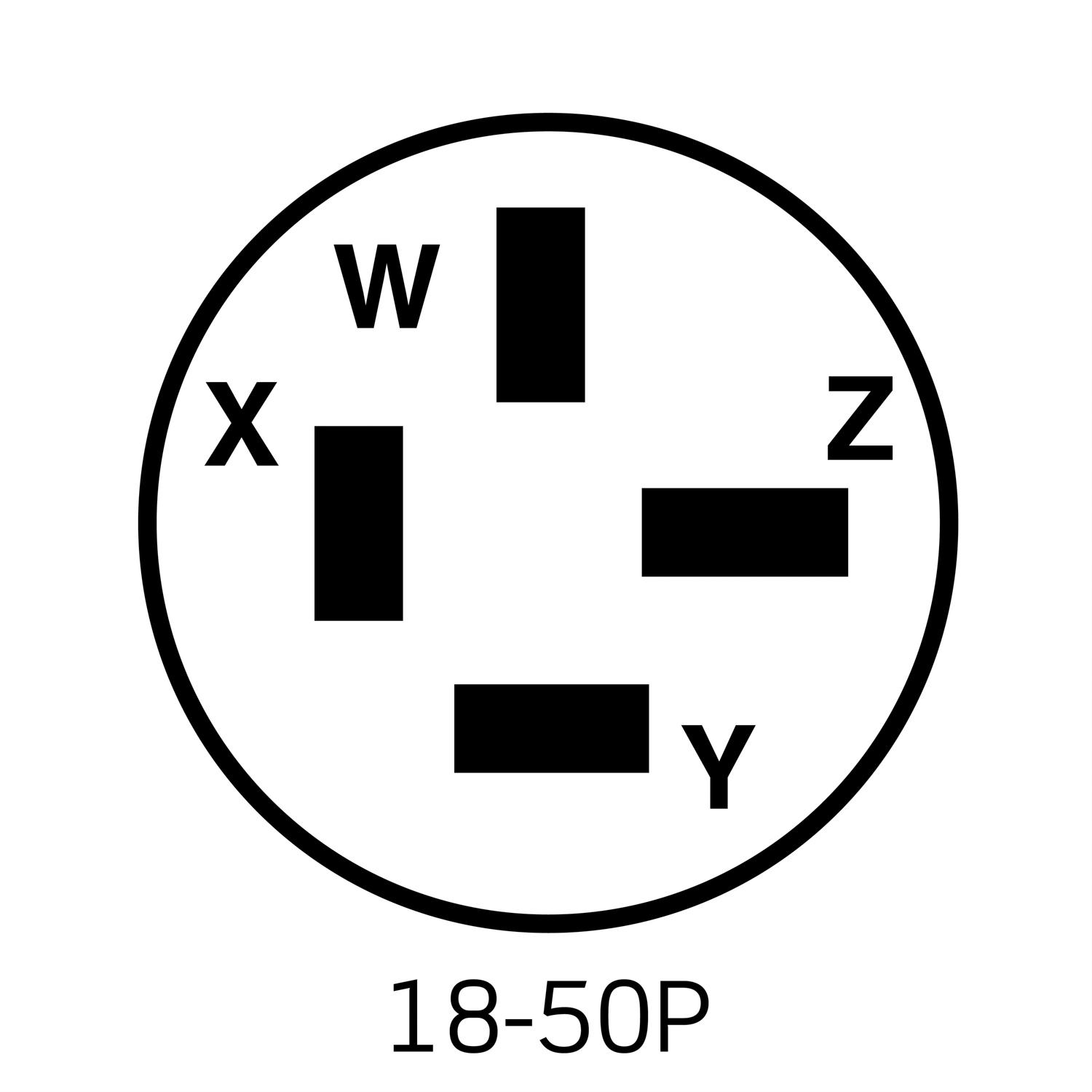

NEMA
WD-6
Number of Phases
3
Number of Poles
4
Number of Wires
4
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
4.37 H x 2.76 W x 1.89 D IN
Standard
ANSI C-73
Temperature Rise
150 %
Type
Angled
Voltage
120/208 V
Wire Count
4
Wire Size
10 - 4 AWG ; 0.625 - 1.375 in

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477810088
Color
Black,Orange,White
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477810088

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Certifications
UL
Country of Origin
Mexico
