YS36A1

Manufacturer: Burndy | Catalog # YS36A1 | Electrozad South Part # 36259
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

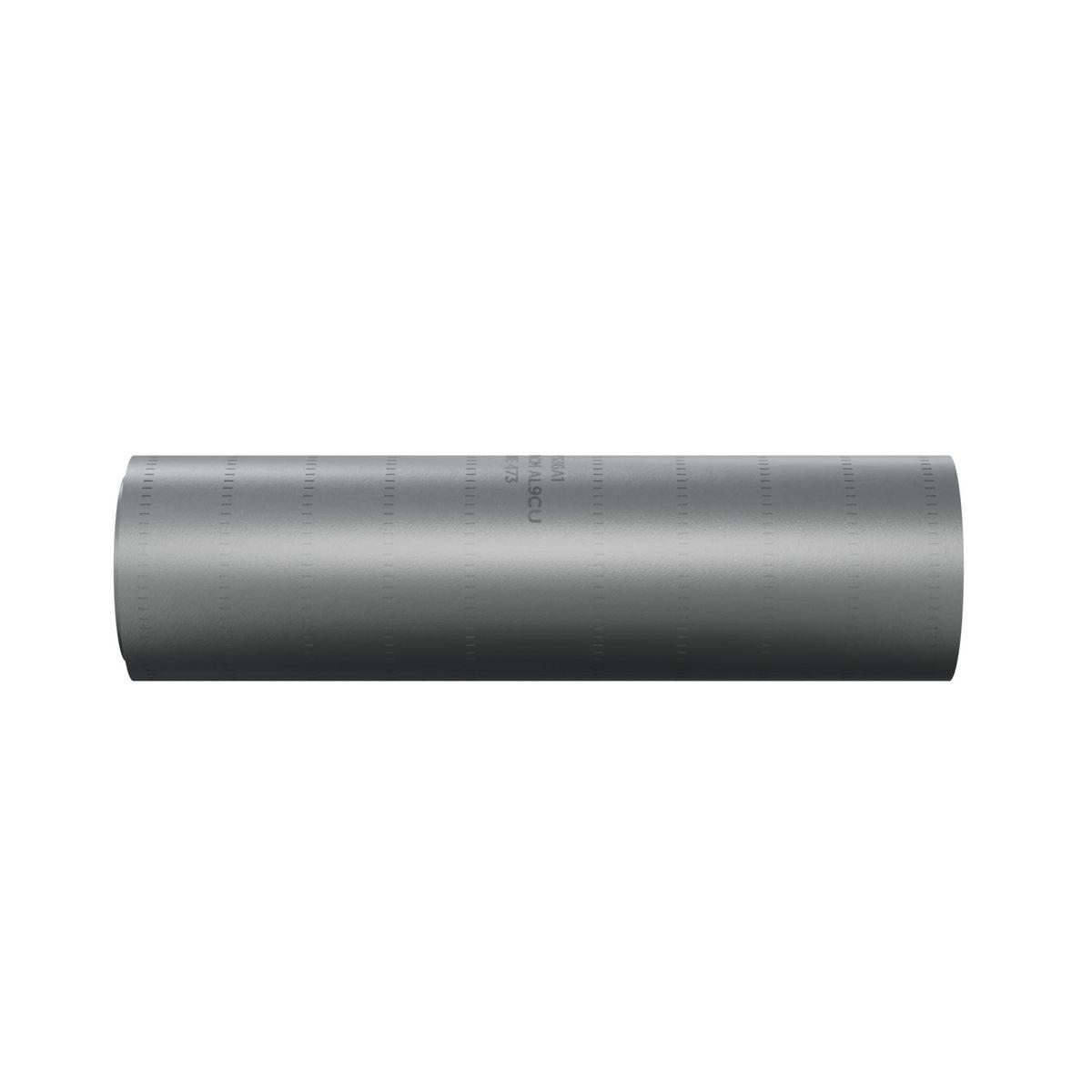

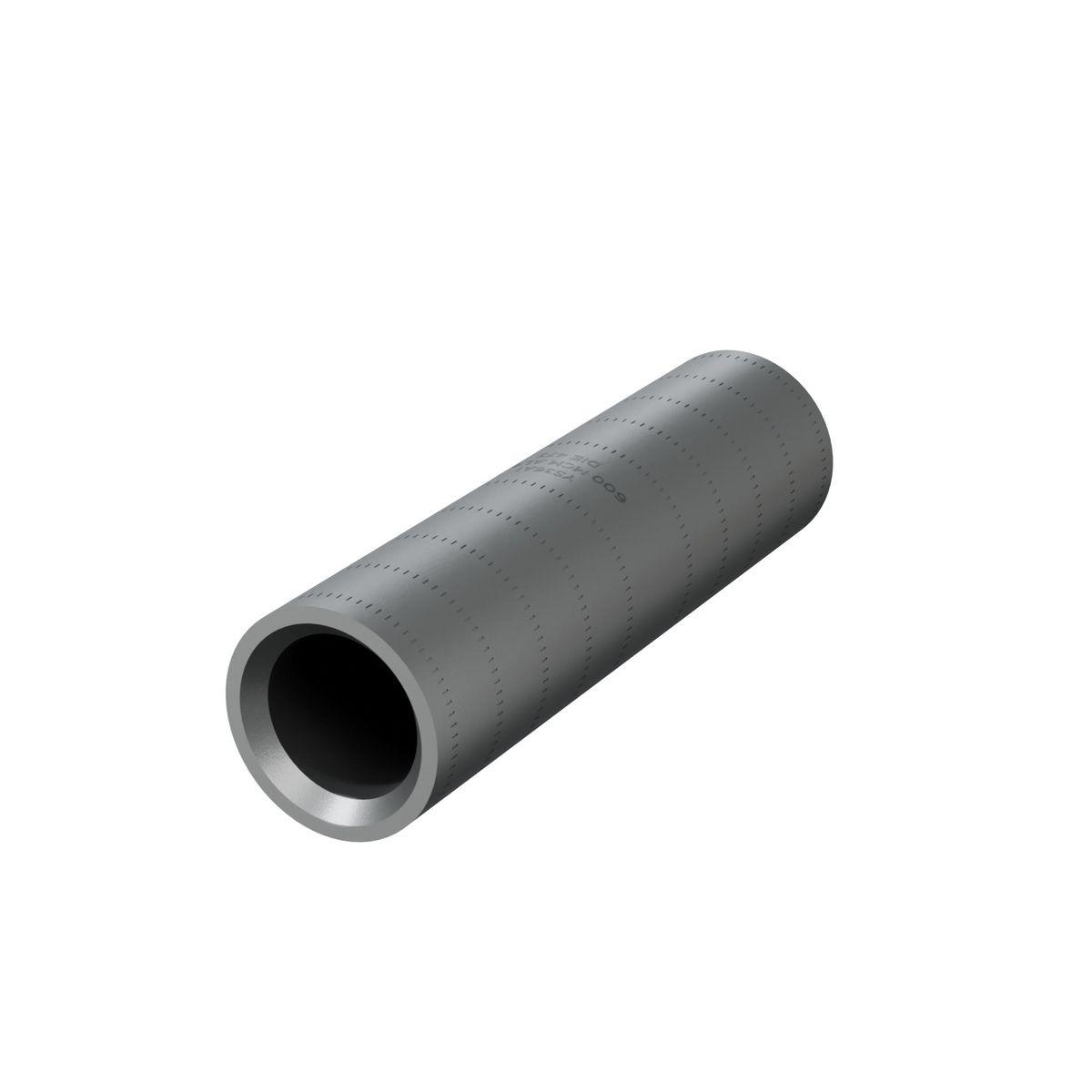

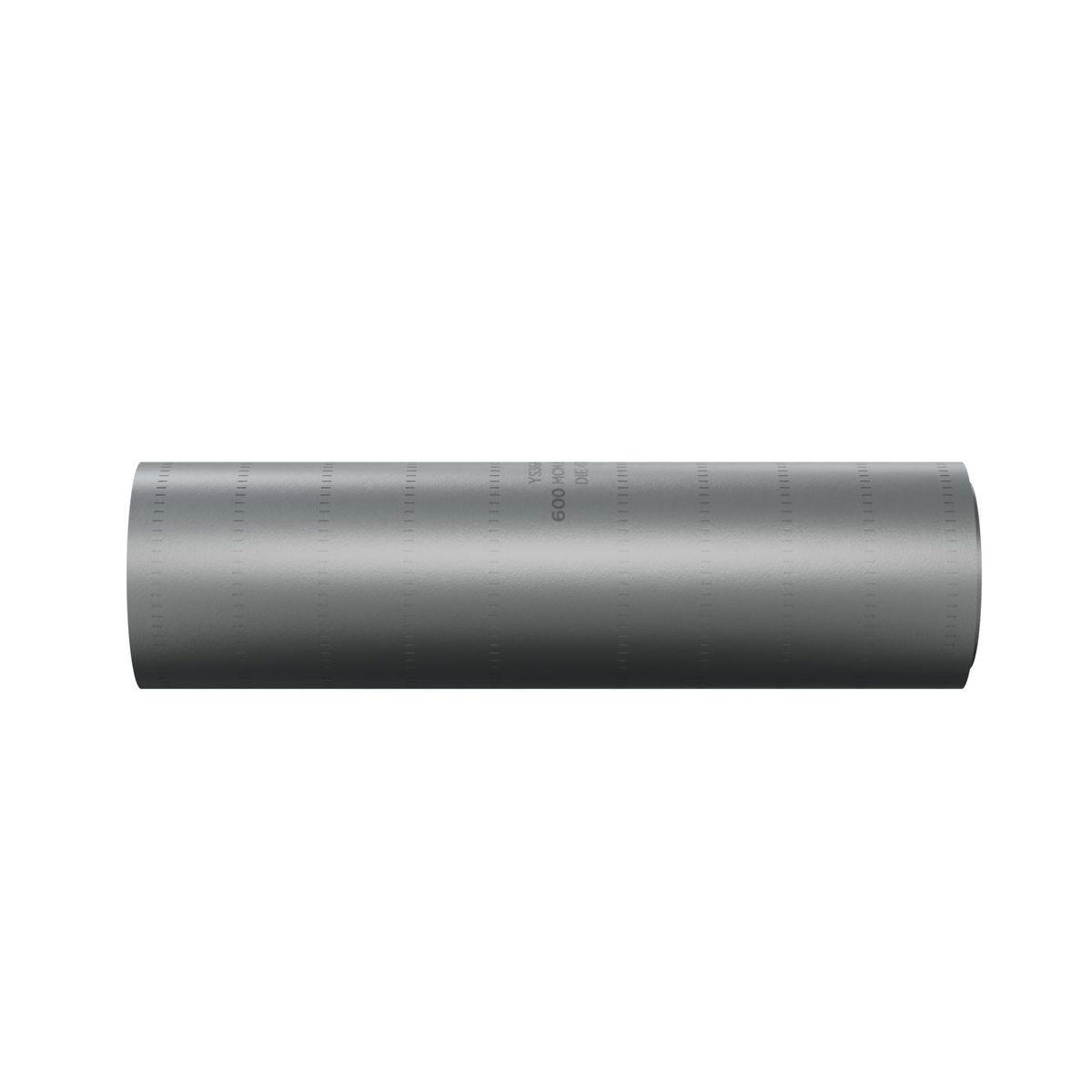

Aluminum Compression Splice, 600 kcmil, 5.14" Splice Length, Long Barrel, Belled End, Tin Plated.

Technical Information

Applications
For Use On All Combinations Of Aluminum To Aluminum, Aluminum To Copper, And Copper To Copper Conductor Combinations
Color Coding
Black
Conductor Size
600 MCM
Connection Type
Splice
Material
Aluminum
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Size
5.14 IN Length X 2.44 IN Dimension B
Temperature Rating
194
Type
YS-A, Standard Barrel
Wire Size
600 MCM

Manufacturer Information

Brand
Burndy
Sub Brand
HYLINK

General Product Info

12-Digit UPC
781810757604
Color
Black
Finish
Tin-Plated,Tin-Plated
GTIN
00781810757604

Dimensions

Height
1.44 in
Length
5.14 in
Overall Length
5.14 in
Width
1.44 in

Certifications & Compliance

Country of Origin
USA
CSA
No
