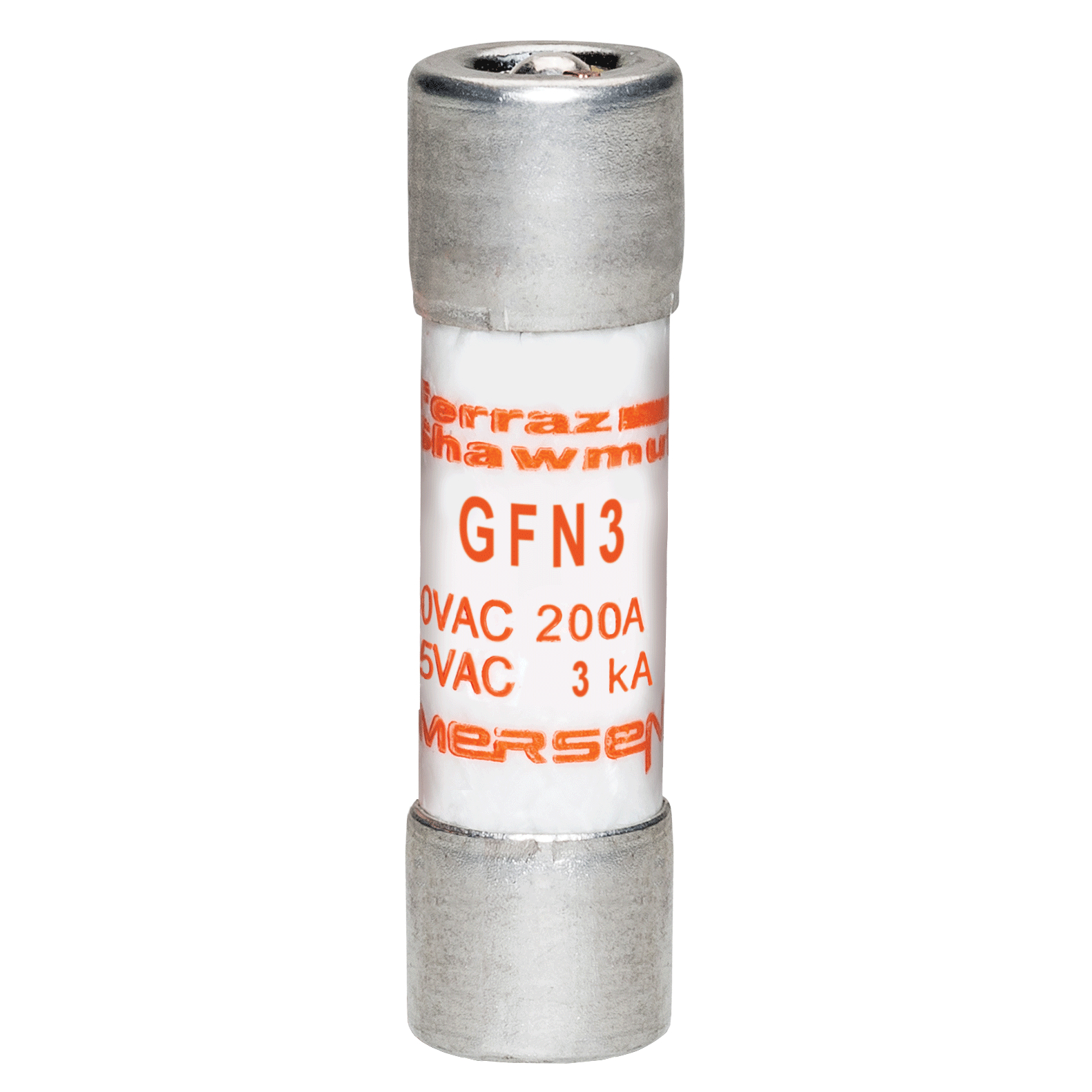

Fuse GFN - Midget - Time-Delay 250VAC 3A Ferrule Visual Indicator

Manufacturer: Ferraz Shawmut Mersen | Catalog # GFN3 | Electrozad South Part # 35740
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
GFN midget indicating fuses are available in 34 ratings from 1/10A through 30A. These time-delay fuses have built-in blown fuse indicators which pop out at the end of the fuse to visually indicate when the fuse has operated. Indicators may be used to trip a switch for remote as well as visual indication. (Not for Branch Circuit Protection).

Technical Information

Amperage
3 A
Applications
For Supplemental Protection of Circuits Where Time-Delay and Blown Fuse Indication are Required, Such As Solenoid Circuits or Control Circuits
Connection Type
Ferrule
Contact Material
Tin Plated Copper
Frequency
50/60 Hz
Fuse Class
Midget
Indicator
Visual Indicator
Insulation Material
PolyTube
Interrupt Rating
0.2 kA
Mounting Type
Clip
Rated Voltage AC
250 V
Response Time
19 sec
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time Delay, Low Voltage

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001761691
Class
M
Construction
Poly Tube
GTIN
30782001761692
Weight
0.012 lb

Dimensions

Diameter
0.41 in
Length
1.5 in
