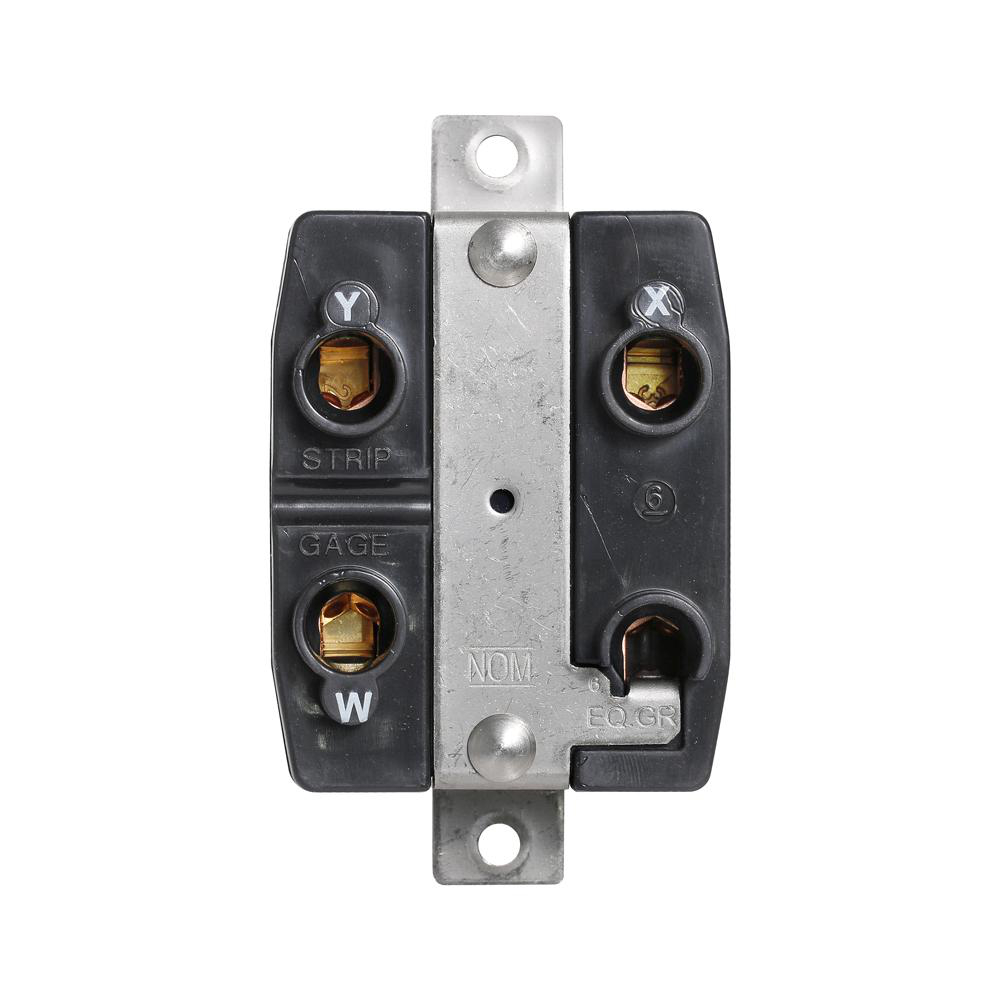

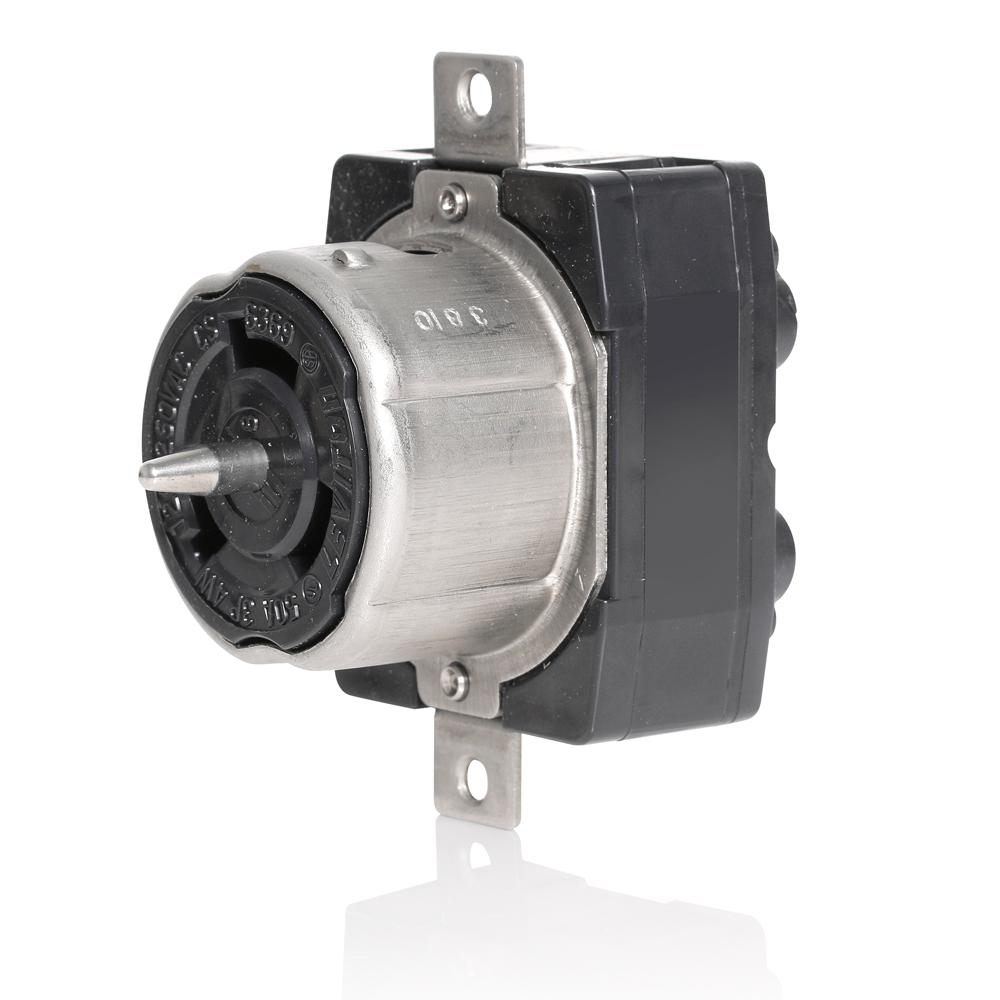

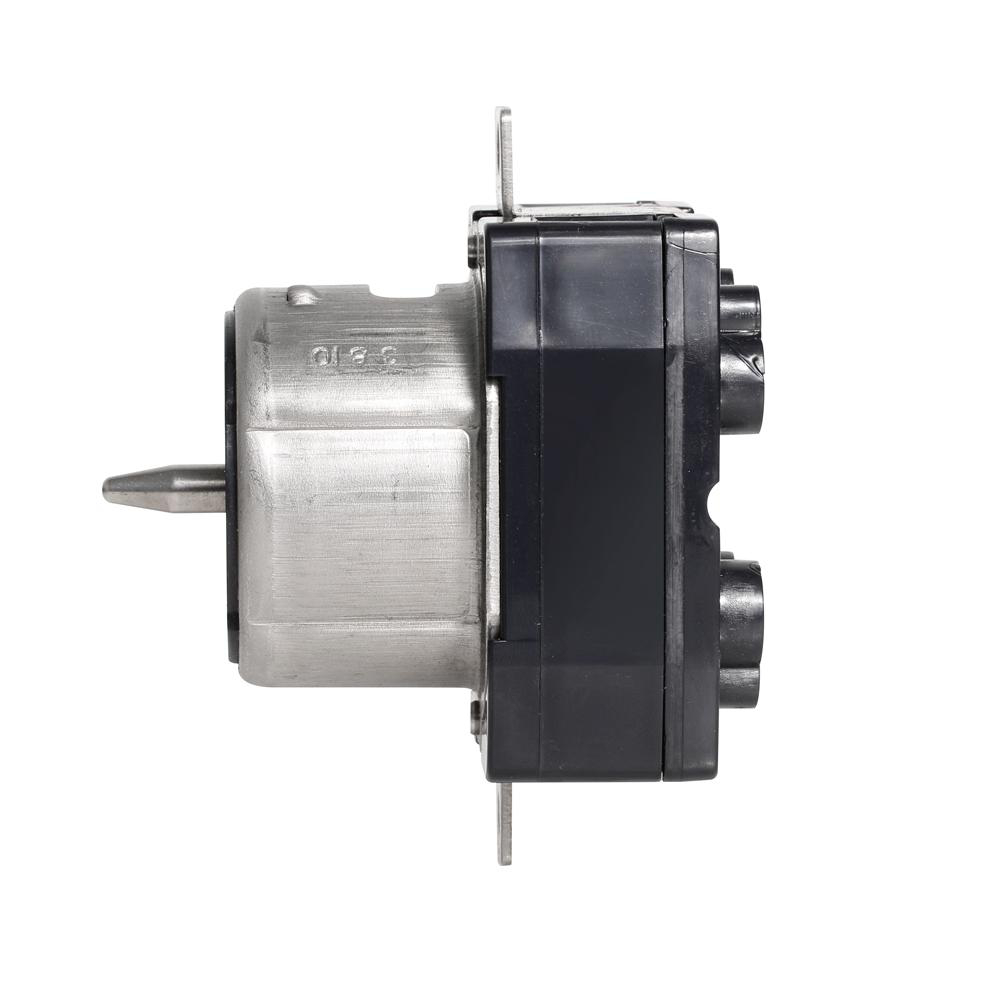

Product image for 50 Amp, 125/250 Volt, Black & White Locking Flush Mount Receptacle, Industrial
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

50 Amp, 125/250 Volt, Black & White Locking Flush Mount Receptacle, Industrial

Manufacturer: Leviton Manufacturing | Catalog # CS6369 | Electrozad South Part # 347743
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet Technical Drawing
50Amp, 125/250V AC, Non-NEMA, 3P, 4W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding, California-Style(CS) ... BLACK

Technical Information

Amperage
50 A
Applications
Commercial
Body Material
Impact Modified Nylon
Device Type
Locking Receptacle
Dielectric Strength
2000 (Min.)
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Material
Nylon
Mounting Type
Box
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
3.69 H x 2.13 W x 1.14 D IN
Standard
CSA C22.2 No. 42 (File 152105),NOM Certified (057),RoHS Compliant,UL Listed 498 (File E13399)
Temperature Rating
-40 To 75 degrees C
Temperature Rise
150 %
Type
Flush Mount Locking Receptacle
Voltage
125 V
Wire Count
4
Wire Size
10-6 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
50AMP

General Product Info

12-Digit UPC
078477326282
Color
Black
Environment
Dry
Environmental Conditions
Flammability (Rated V-0 per UL94)
GTIN
00078477326282

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
