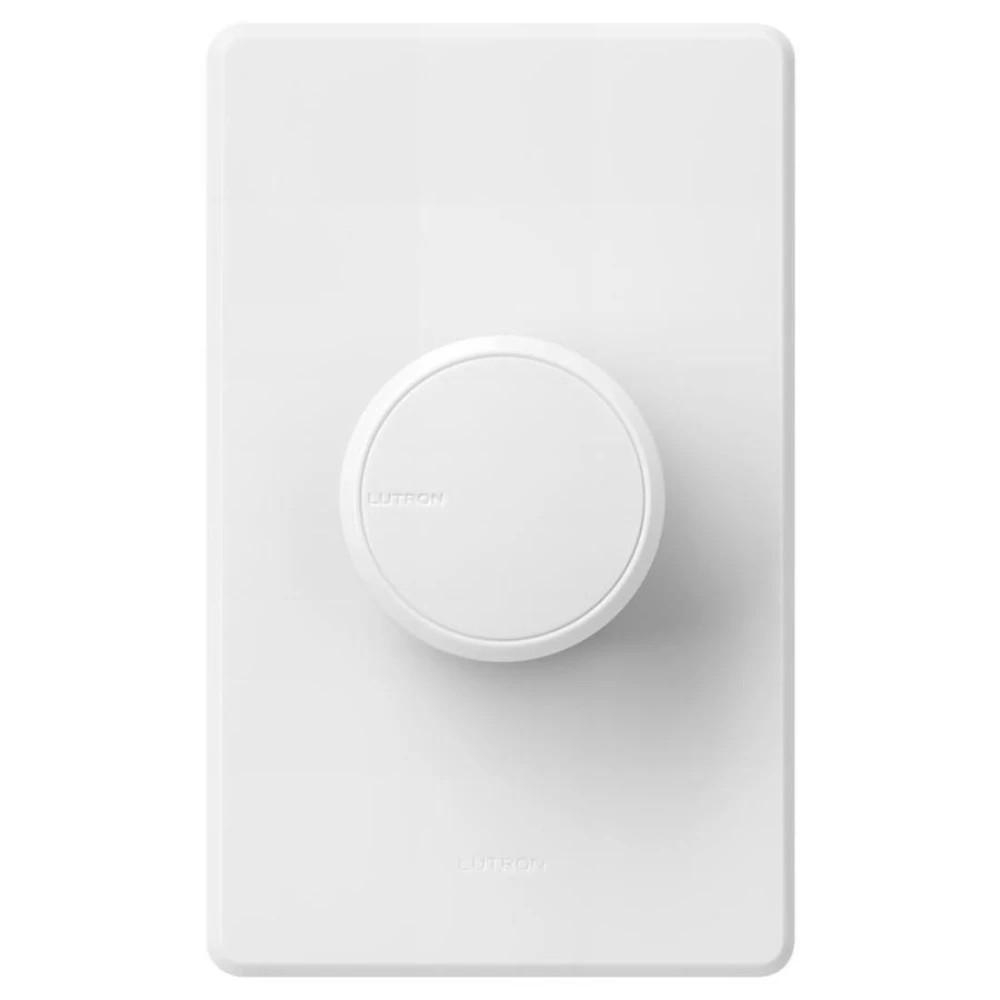

DALIA LED+ ROTARY DIMMER WHITE

Manufacturer: Lutron Dimmers | Catalog # RCL-153PNL-WH | Electrozad South Part # 347718
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Manufacturer Warranty
Control dimmable LED, incandescent, and halogen bulbs with a classic rotary control. Built with Lutron's LED+ Advanced Technology, this dimmer can add a new twist to your home decor while providing superior dimming. Lights off? The SoftGlow locator light helps you find Dalia in the dark. Dalia's versatile design allows you to swap out a variety of wallplate and knob colors to complement any application. Use with a traditional-style wallplate opening (Lutron Fassada screwless wallplate, model FG-1-xx). A neutral wire is not required, so Dalia can work with your existing wiring. Improve your bulb performance by adjusting the dim range with the blue low-end trim lever. Simple to install, in as little as 15 minutes. For use in single-pole or 3-way applications and rated for 150W dimmable LED bulbs or 600W incandescent/halogen bulbs.

Technical Information

Action
Push-On/Push-Off
Applications
For Dimmable LED, Halogen, Incandescent and CFL Bulbs
Connection Type
Screw Terminal
Number of Poles
1
Operating Temperature
0 - 40 degrees C
Power Rating
150 W LED/CFL, 600 W Incandescent/Halogen
Size
2.86 in
Type
3-Way
Voltage
120 V

Manufacturer Information

Brand
Lutron

General Product Info

12-Digit UPC
784276281416
Color
White
Environmental Conditions
Indoor
Finish
Gloss
GTIN
00784276281416
Overview
  • Works with existing wiring: Works in homes of any age, as it does not require a neutral wire
  • Optimize Your Dim Range: Simple button-press set-up allows you to set your bulb's optimum dim range and improve bulb performance
  • Works well with all bulb types: For use with up to 150-Watt of dimmable LEDs or up to 600-Watt of incandescent and halogen bulbs; not rated for low voltage applications (i.e. track or landscape lighting)
  • Lights off? The SoftGlow locator light helps you find your dimmer at night
  • Control dimmable LED, incandescent, and halogen bulbs with a recognized, classic design dimmer
  • Switch between a variety of knob and wallplate colors to complement your decor
  • Single-Pole or 3-Way: Can be used in single-pole or 3-way applications, where lights are controlled from 1 or 2 locations
  • Easy to Install: Installs in 3 steps in as little as 15 minutes
  • Includes: (1) Dalia LED+ dimmer; coordinating Fassada screwless wallplate sold separately
  • LED+ Advanced Technology: Tested on 1,000s of bulbs and dozens of brands for superior dimming of LED, incandescent and halogen bulbs (for list of recommended bulbs, see Lighting Facts)
