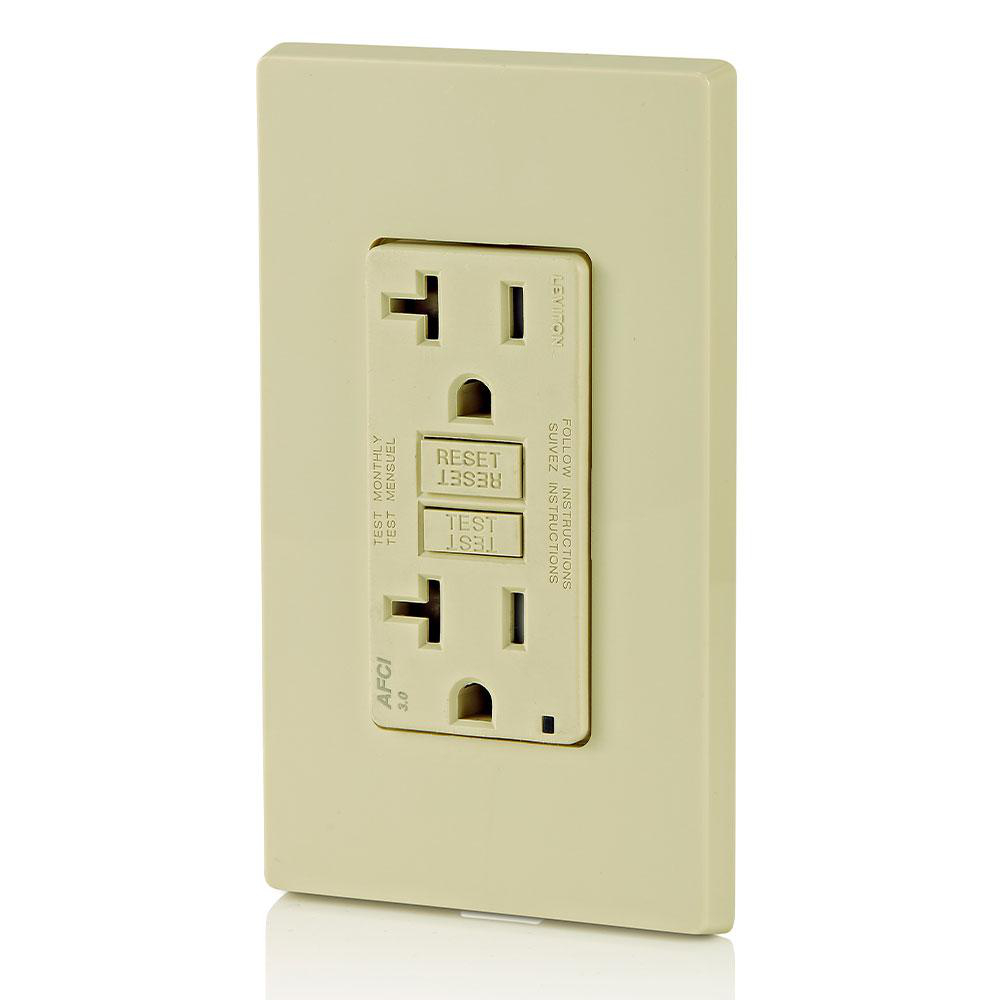

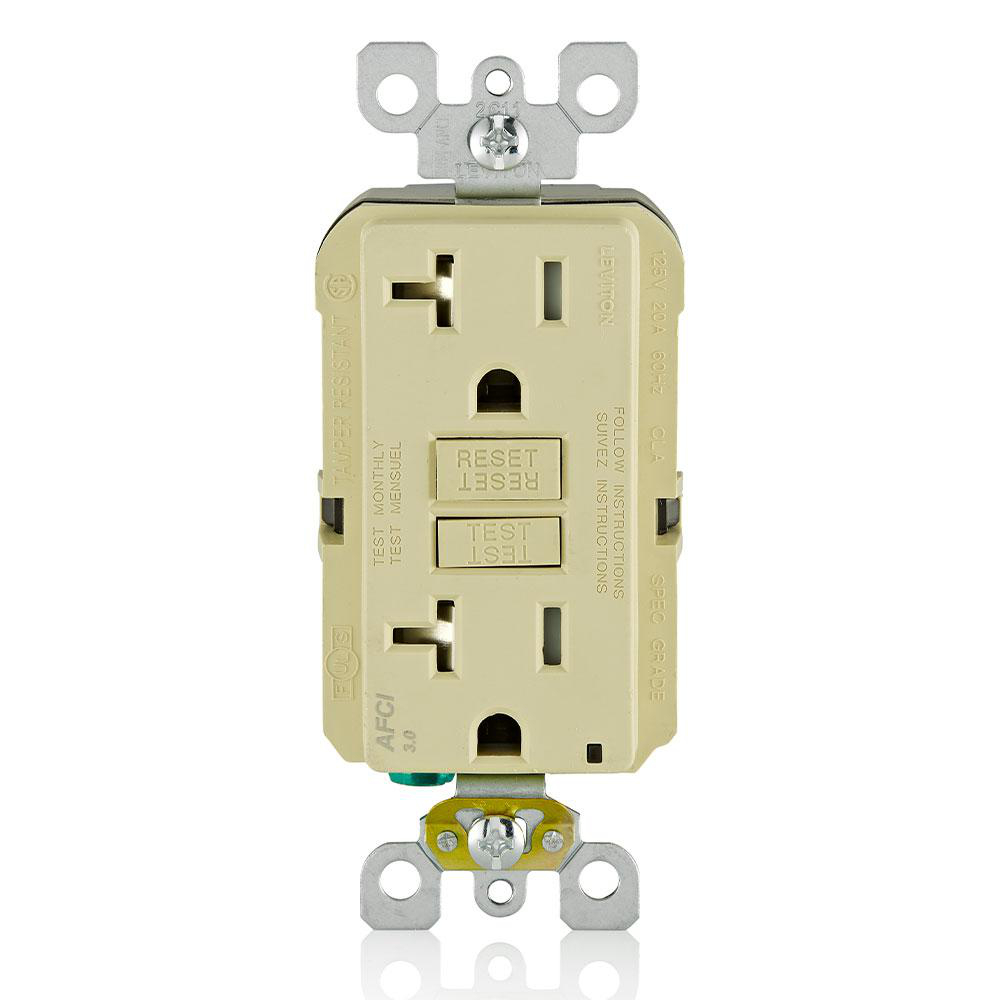

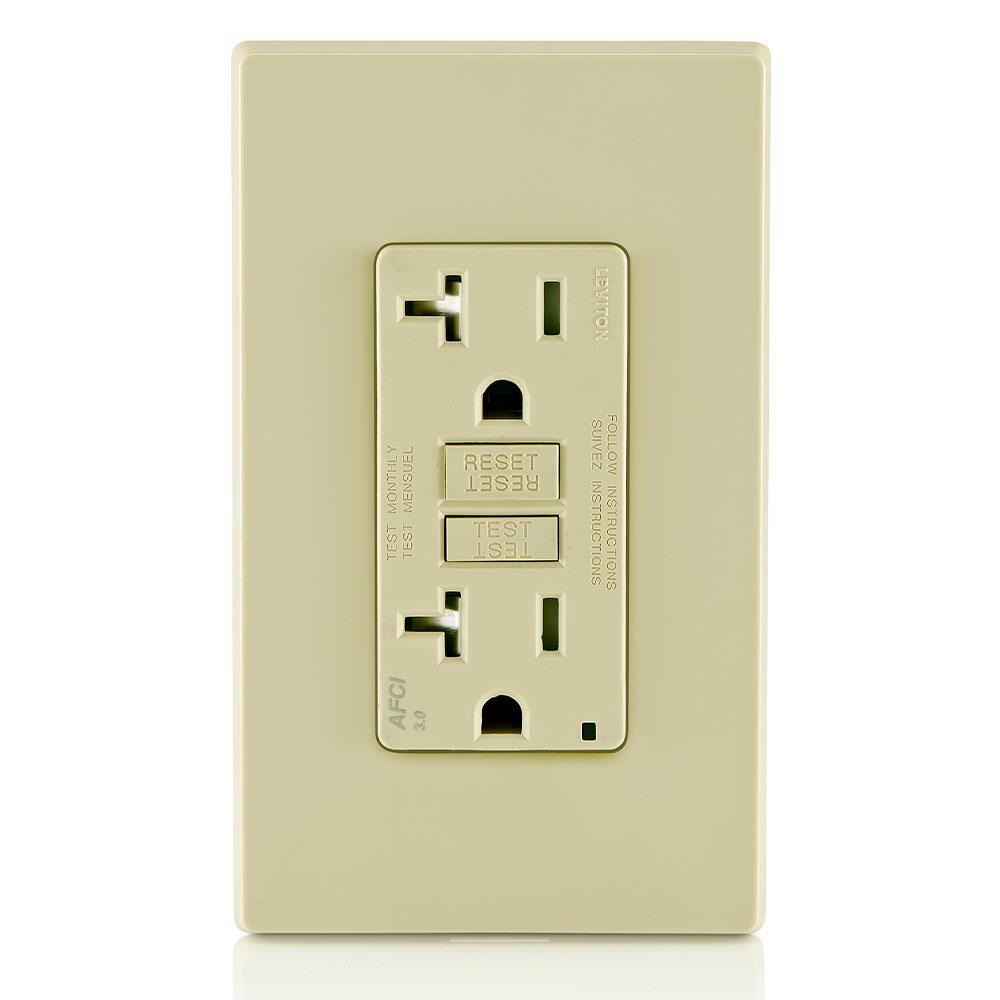

Product image for Receptacle AFCI with LED indicator tamper-resistant 125V 20AMP ivory
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7

To:
CC:

Receptacle AFCI with LED indicator tamper-resistant 125V 20AMP ivory

Manufacturer: Leviton Manufacturing | Catalog # AFTR2-I | Electrozad South Part # 347679

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
The SmartlockPro® outlet branch circuit (OBC) AFCI receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home...s electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home...s electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCIs are now required by the National Electrical Code® in many areas of the home.

Technical Information

Amperage
20 A
Applications
For Residential/Commercial use
Body Material
Polycarbonate,Polycarbonate
Connection Type
Back Wired,Side Wired
Contact Material
Double-Wipe Brass
Face Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Frequency
60 Hz
Grounding
Self-Grounding
Horsepower
1 hp
Material
Plastic
Mounting Type
Wallplate
NEMA
5-20R
Number of Poles
2
Number of Wires
3
Operating Temperature
-35 to 66 degrees C
Rated Insulation Voltage
1250 V
Size
1.68 W x 4.21 H x 1.27 D IN
Standard
ANSI C-73,CSA,CSA,UL,UL
TC Connection
Back Wired;Side Wired
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Duplex Outlet, Tamper-Resistant
Voltage
125 V
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477574997
Color
Natural
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477574997

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
