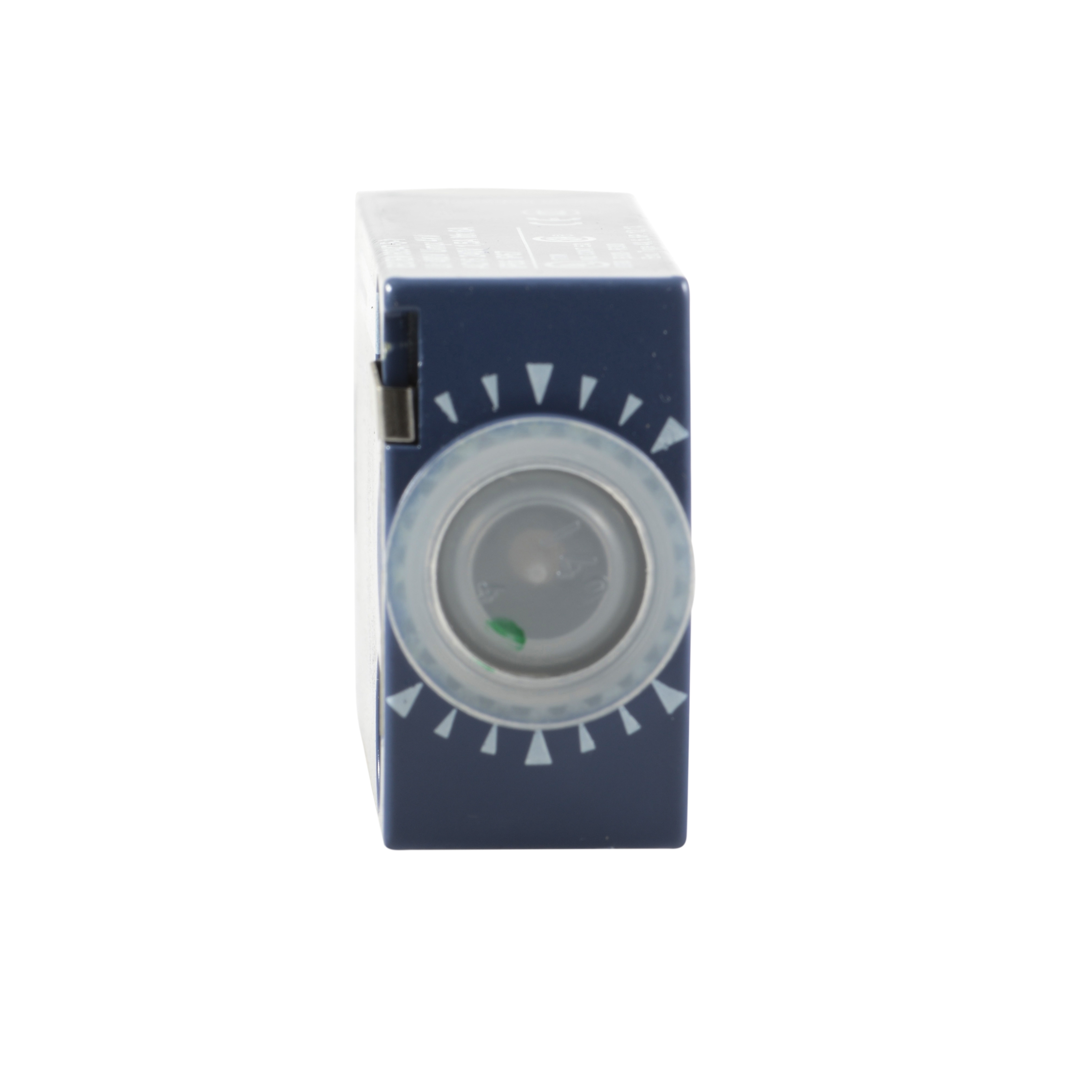

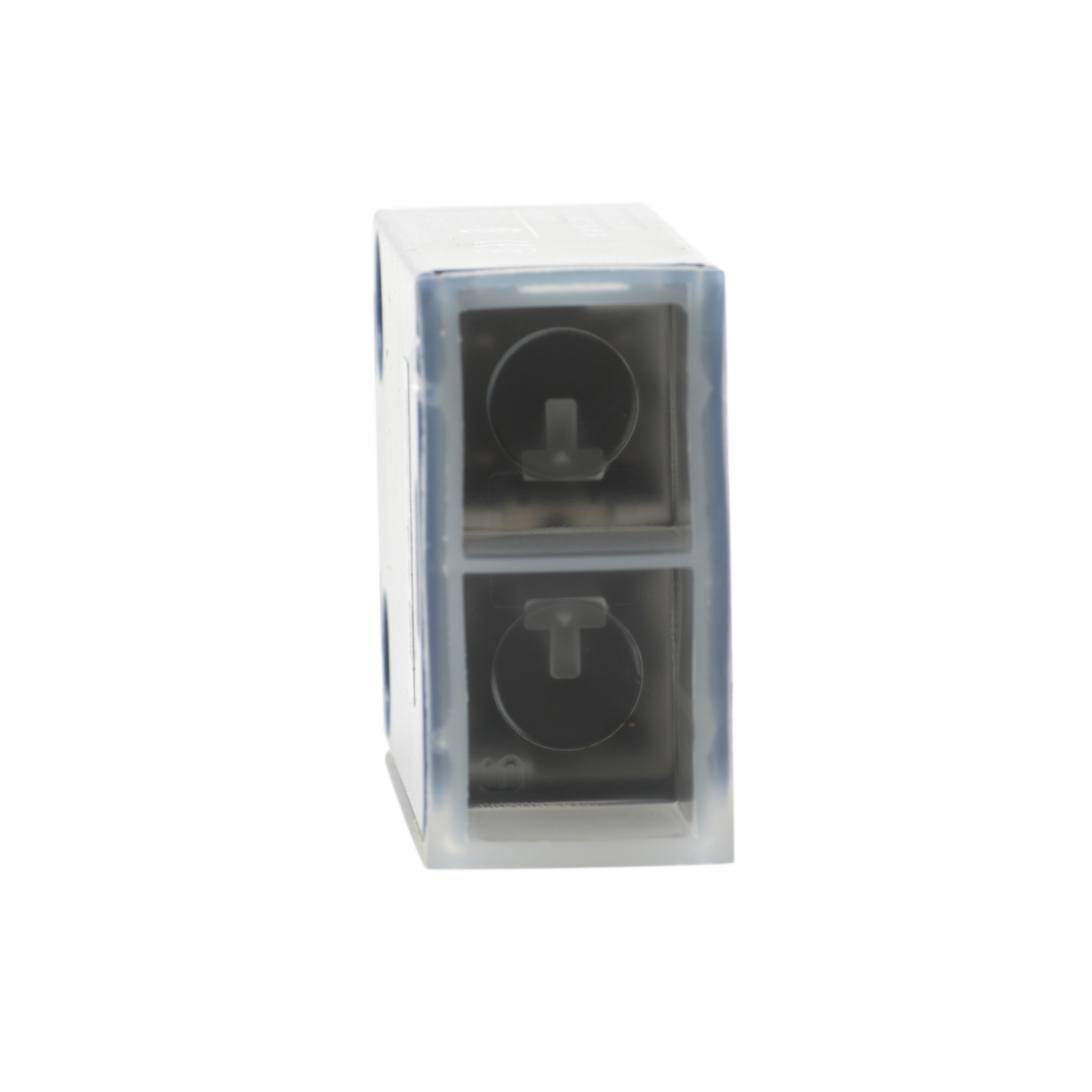

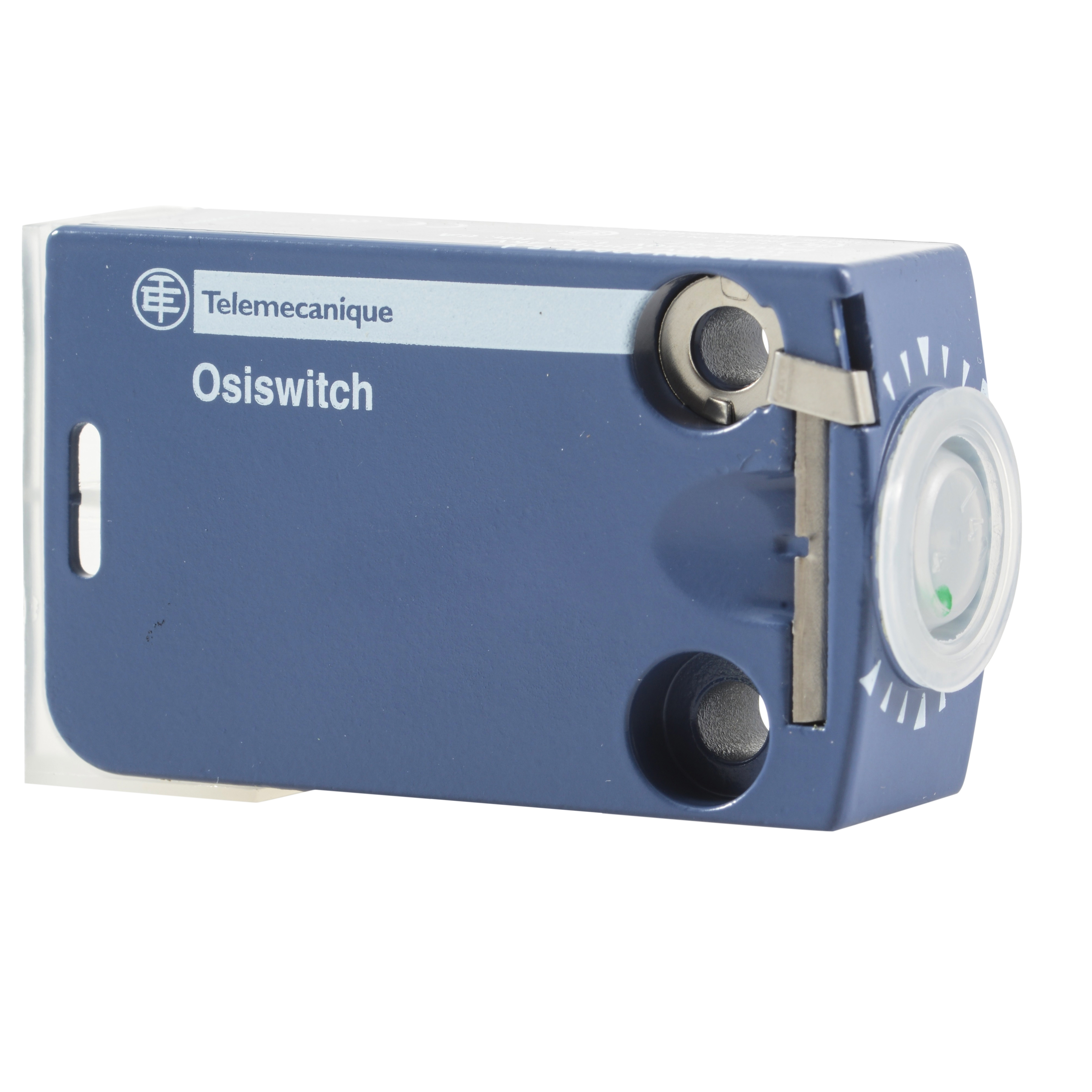

Product image for LIMIT SWITCH BODY, LIMIT SWITCHES XC STANDARD, ZCMD, 1NC+1 NO, SILVER, SNAP ACTION
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

LIMIT SWITCH BODY, LIMIT SWITCHES XC STANDARD, ZCMD, 1NC+1 NO, SILVER, SNAP ACTION

Manufacturer: Telemecanique Controls | Catalog # ZCMD21 | Electrozad South Part # 344937
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This ZCMD21 body is part of the range of limit switches XC Standard, miniature design, metal, XCMD. The variable composition range expands the offer and choice among different actuators. This body with 2-pole contact is equipped with contact block NC + NO snap action.

Technical Information

Action
Snap action
Applications
XCMD
Body Material
Zamak
Body Type
Plug-in body
Contact Configuration
1 NC + 1 NO
Contact Material
Silver Plated Contacts
Number of Poles
2
Operating Cycles
5000000 CYCLES, DC-13 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Size
0.63 in
Storage Temperature
-40-70 degrees C
TC Connection
PLUG-IN WITHOUT PRE-CABLED CONNECTION
Type
Limit switch body

Manufacturer Information

Brand
Telemecanique Sensors
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
389110299062

Dimensions

Depth
16 mm
Height
50-50 mm
Warranty Length
18 mth
Width
30 mm

Certifications & Compliance

Country of Origin
Indonesia
