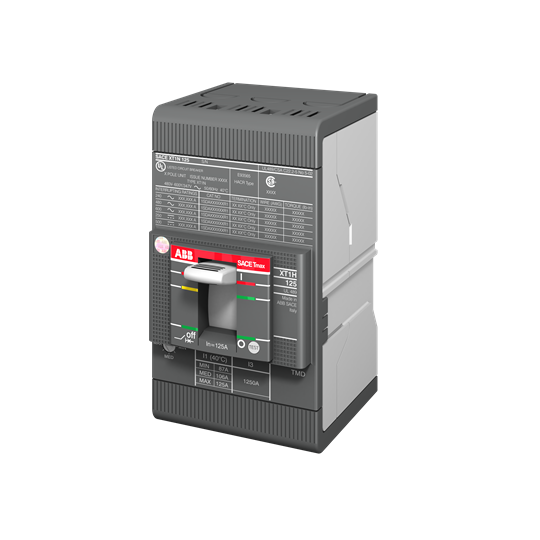

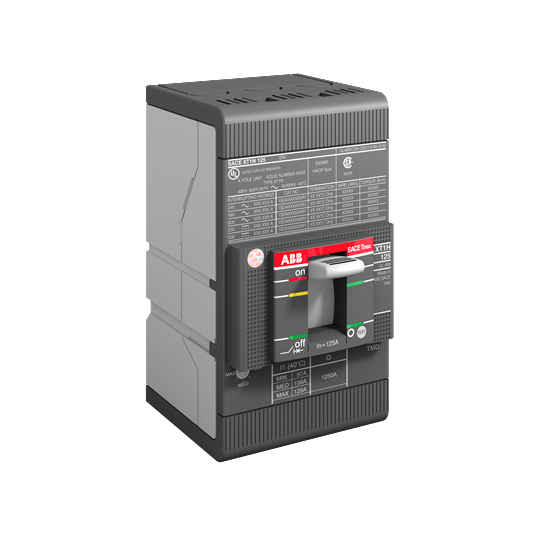

XT1H 125 TMF 60-600 3P F F UL/CSA

Manufacturer: ABB Inc | Catalog # XT1HU3060AFF000XXX | Electrozad South Part # 344430
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Tmax Breaker Frame Size XT1H 125 Thermal Magnetic Fixed 60-600 Three-Pole Fixed + Front Flat Terminals Underwriters Laboratory/Canadian Standards Association

Technical Information

Applications
For Ideal Solution For all Distribution Levels from the Main Low Voltage Switch Board to the Subswtich Boards in the Installation
Frame
125 A
Interrupt Rating
25 kA at 600 VAC
Mounting Type
Fixed, Plug-In
Number of Poles
3
Trip Range
60 - 600 A
Trip Type
Thermal Magnetic Fixed
Type
Molded case circuit breaker

Manufacturer Information

Brand
ABB
Sub Brand
Tmax XT

General Product Info

12-Digit UPC
888614402294
Box Quantity
1
GTIN
08015644786793
