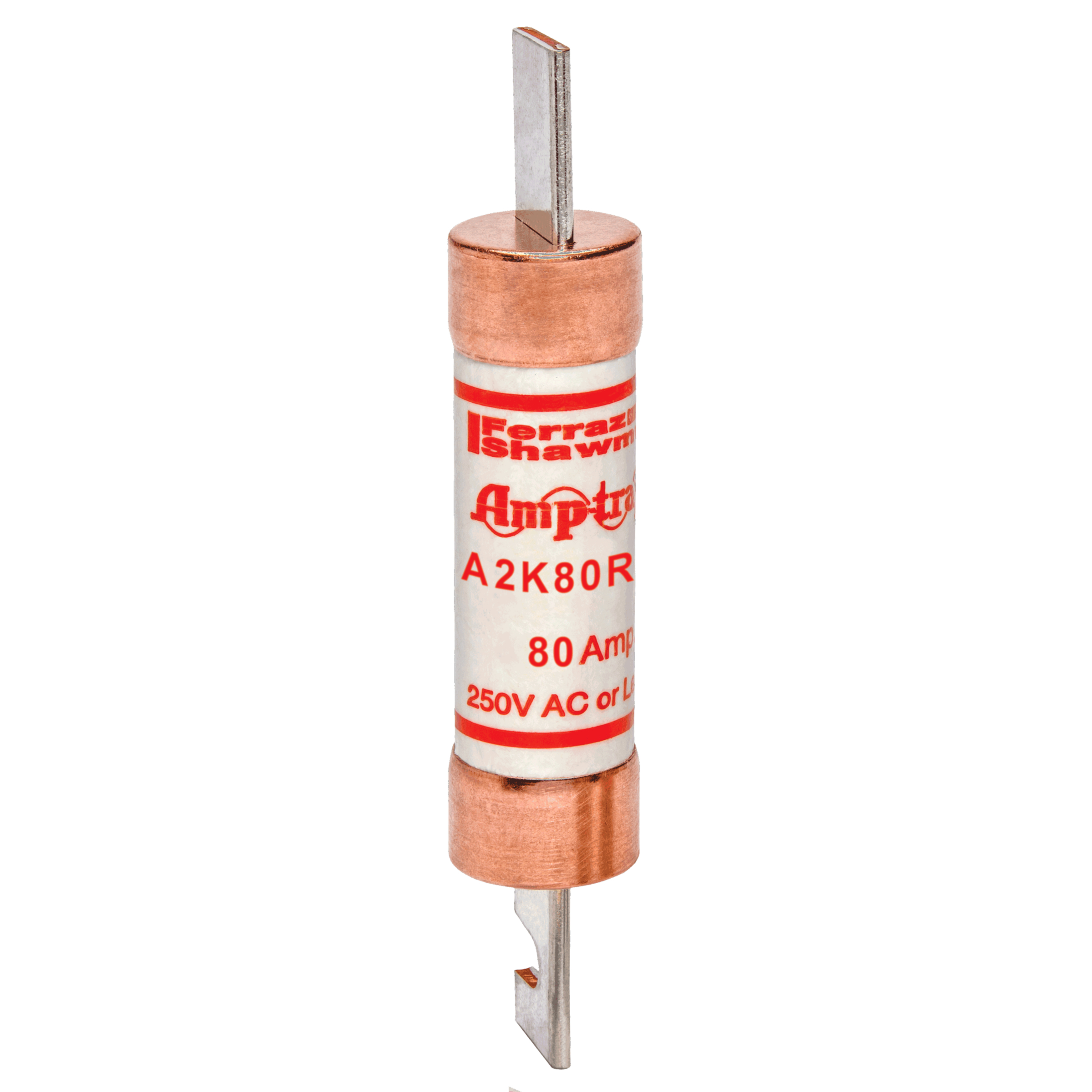

Fuse A2K-R - Class RK1 - Fast-Acting 250VAC 250VDC 80A Blade Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A2K80R | Electrozad South Part # 34394
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
Current-limiting Amp-Trap A2K-R fuses provide excellent protection where high available short-circuit currents exist. These fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.

Technical Information

Amperage
80 A
Applications
For Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Non-Inductive Loads, Lighting Circuits
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class RK1
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
250 V
Rated Voltage DC
250 V
TC Connection
Blade
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
North American

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001915209
Class
RK-1
Construction
Fiberglass
GTIN
30782001915200
Weight
0.333 lb

Dimensions

Diameter
1.06 in
Length
5.88 in
